LiftKar PT
Powered stairclimbers for people

Quality of life is about enjoying life to the full, together.
There are many reasons why somebody cannot manage stairs alone for a time, or permanently. For people who need assistance, SANO offers powered stairclimbers that are easy to use, safe and can be operated without excessive effort.

Reliable indoors and outdoors: Ground floor, first floor, garden, basement – with the LiftKar PT you can get your whole house back. And there's more: going to the doctor's or post office, driving by car to visit friends and relatives, travelling by plane or train, going to the theatre or an exhibition – everything becomes much easier again. A powerful battery pack, mobile charger unit (available as an accessory) and a quick-change battery pack ensure that the LiftKar PT is ready for action at any time.

The LiftKar PT is available in several Models - with integrated seat for use with a wheelchair

excellent stairclimbing technology
easy to operate
maximum safety
Features
01backrest

LiftKar PT

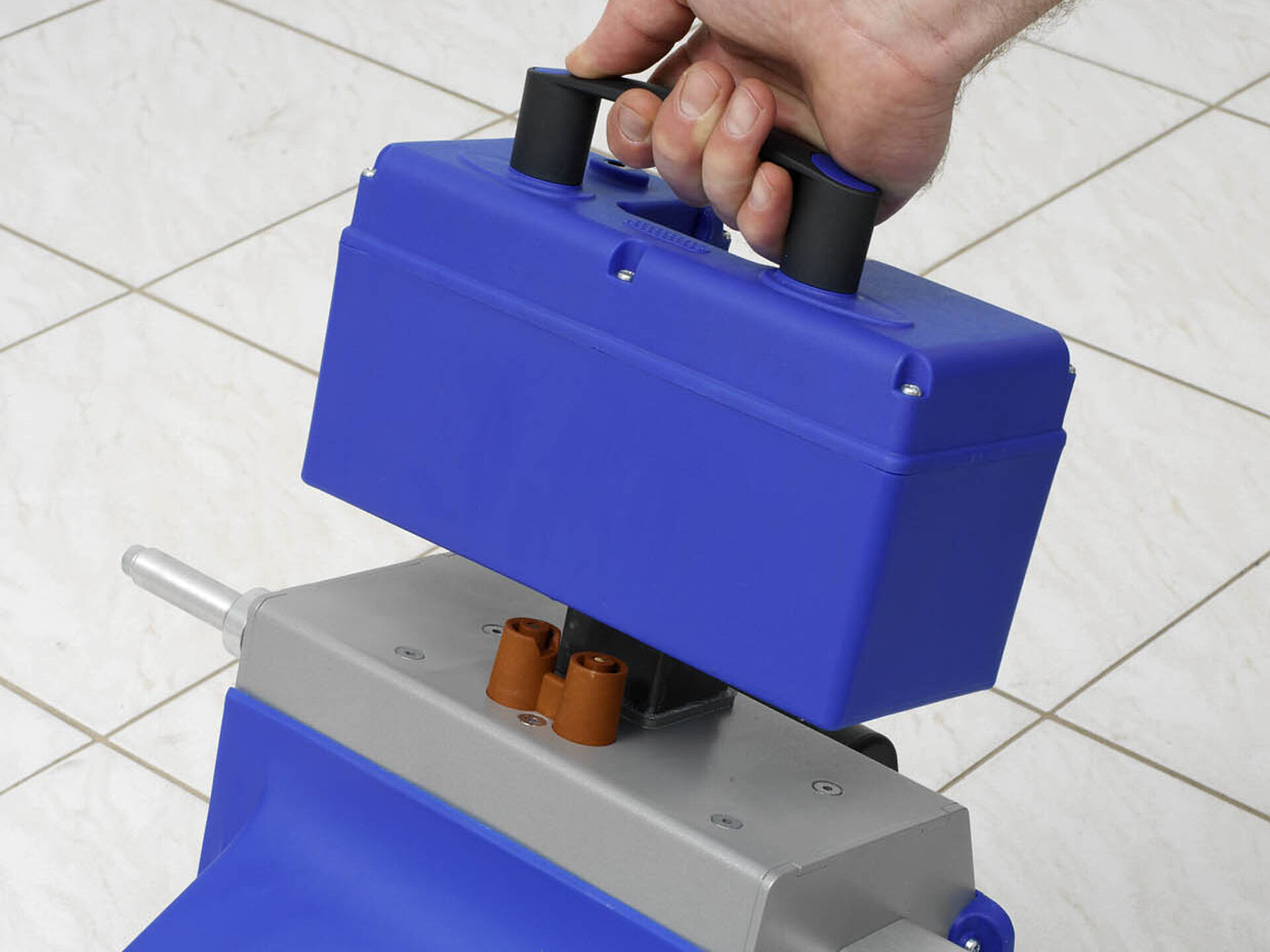

battery pack

Thanks to its light weight of only 4.3 kg, the battery can be replaced quickly and easily.

LiftKar PT

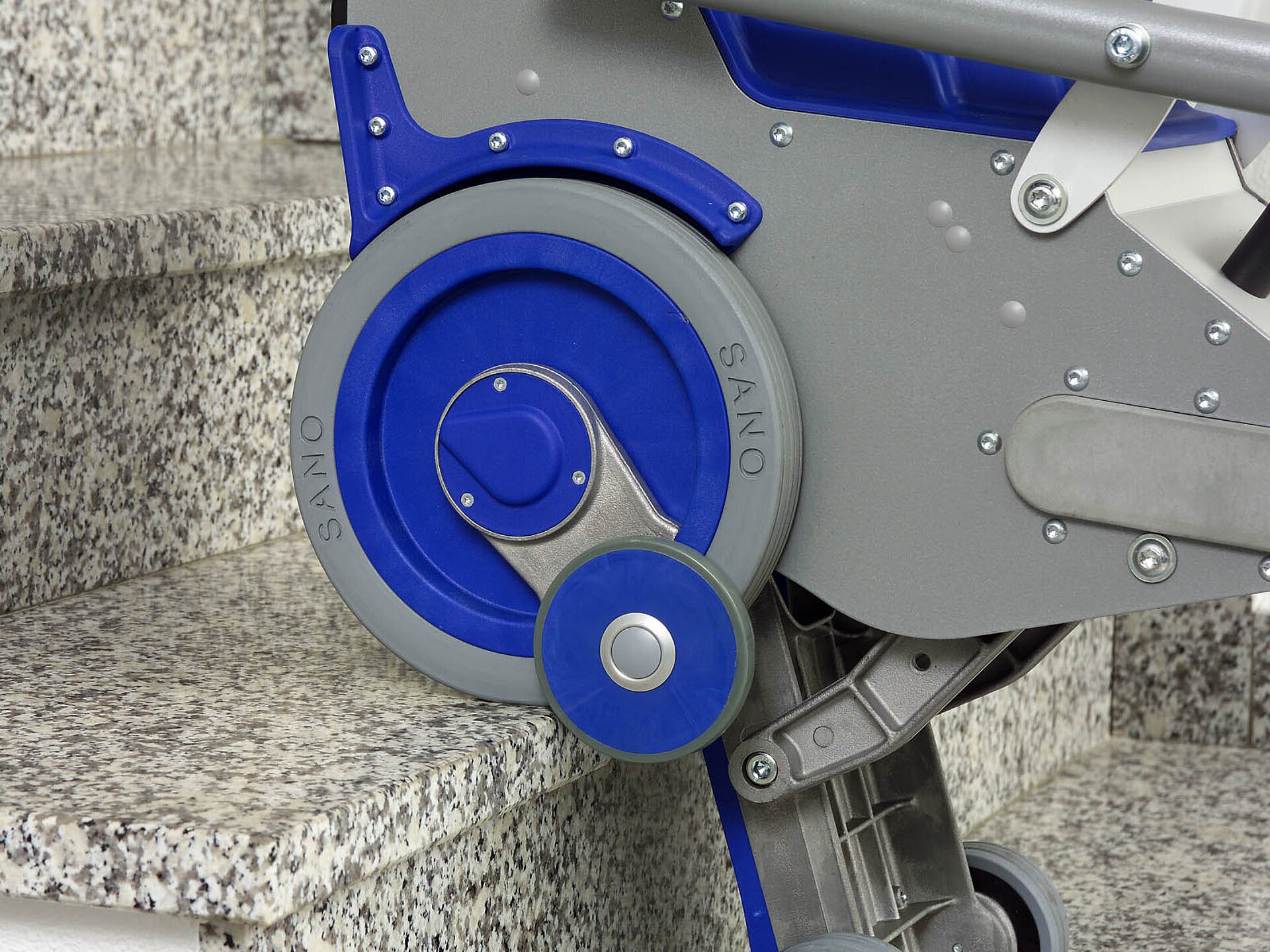

robust step edge brake

Robust automatic step edge brake, always active even when the device is switched off. Glass fiber reinforced, extremely robust rim, brake lever made of strong aluminium with extra large sensor wheel for safe stopping of the stair climber at every step edge.

04handle unit

LiftKar PT

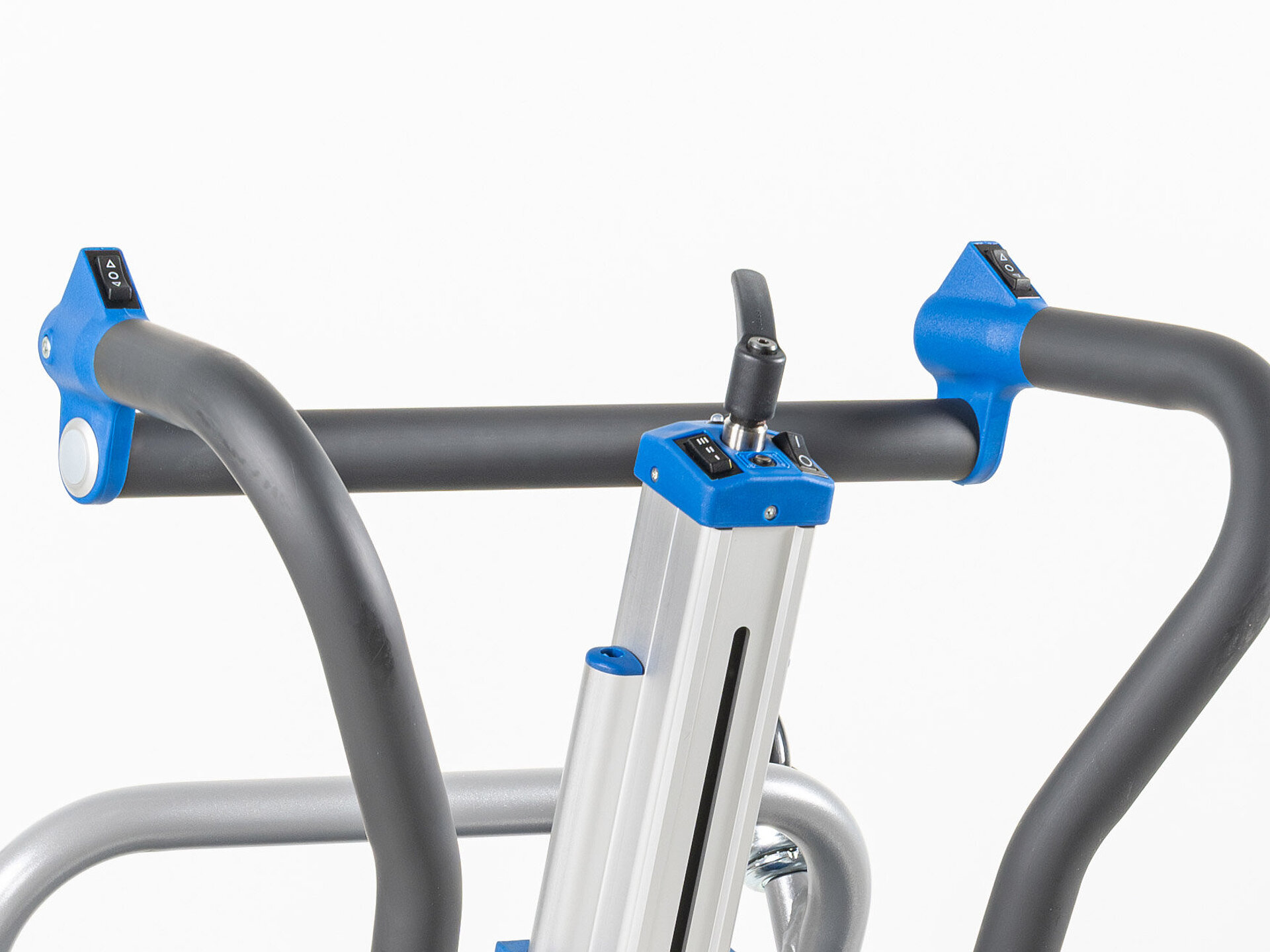

control panel - handle unit

The control panel on the handle unit of the LiftKar PT stairclimber

06folding armrests
07Lifting unit incl. seat
Details
Advantages

18 unbeatable advantages
to convince you

  1. 3 speed settings
  2. up to 18 steps per minute
  3. single-step mode and continuous mode

  4. lightweight construction

  5. independence thanks to in-transit charger (optional) and quick-change battery pack

  6. leaves no marks on stairs or floors

  7. confident even on narrowsteep, spiral staircases

  8. intuitive control panel

  9. for left- and right-handed operators

  1. climbs effortlessly with people weighing up to 160 kg
  2. switch between single-step mode and continuous mode on-the-move
  3. modular design: quick and easy to dismantle into 3 sections and re-assemble again
  4. stows away in car no problem
  5. step edge brakes with strong brake rollers
  6. electrical and mechanical overload protection
  7. ergonomic, non-slip and height-adjustable handle grips
  8. angle indicator for perfect balance during operation
  9. motor-supported assistance for standing up
Variants

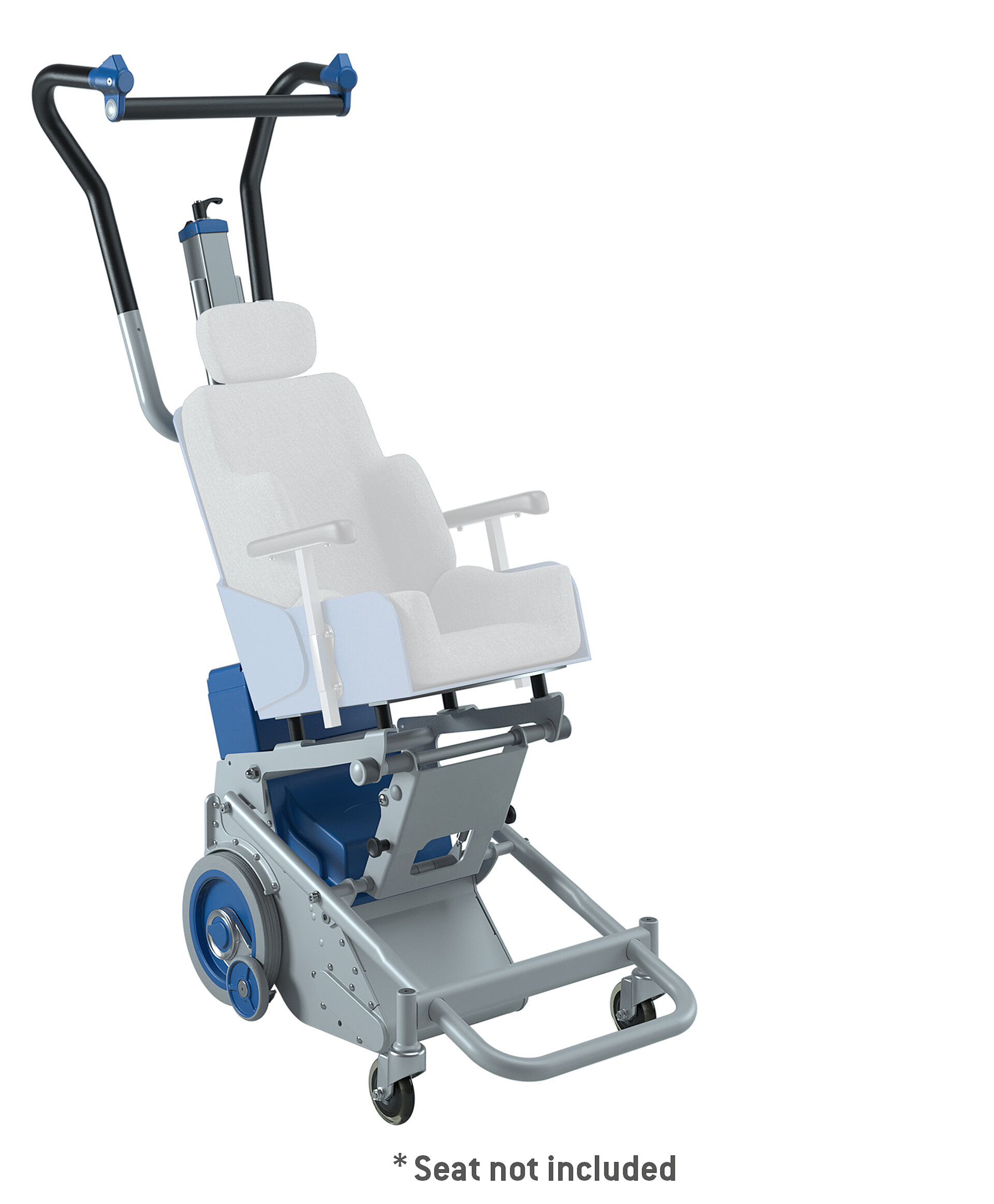

Safety and ergonomic handling for indoors.

The LiftKar PT S features advanced stairclimbing technology and can handle any challenge. The 130 model is designed for people up to 130 kg while the 160 is for people up to 160 kg. The soft upholstered and ergonomically-shaped seat guarantees a comfortable ride.

The stairclimber doesn't start moving down steps until the brake wheels on the lifting mechanism have reached the next step. With this level of safety, the LiftKar PT S can be manoeuvred relaxed and confidently with an upright posture and without straining your back. The handle unit is easy to adjust and is equipped with anti-slip material. Use the robust crossbar to support and hold the unit. With UP/DOWN switches on both hand grips, the LiftKar PT S does not need to be adapted when changing between left- and right-handed operators. Choose between three climbing speeds, depending on the nature of the stairs: 10, 14 or 18 steps per minute.

Models available for loads up to 130 kg and 160 kg.

Safe transport outside the home, too.

Thanks to its sturdy design with extra-large non-marking wheels, the LiftKar PT OUTDOOR is easy to manoeuvre smoothly and safely over steps, slopes and bumpy ground outside the home. This model is available for people up to 120 kg or 150 kg. The powerful braking system inside the wheel is activated when the stairclimber is tilted back slightly. This effectively prevents it rolling away on slopes or ramps. Switching between single-step and continuous mode can easily be done while on the move.

The newly-developed ergonomic seat and upholstered armrests provide the highest level of comfort. This is more than just a pleasant detail; you'll be sitting comfortably even after several hours. The LiftKar PT OUTDOOR is lightweight, can easily be dismantled into 3 sections, and is just as easy to re-assemble. It can be stowed away in the boot of a car in no timeIdeal for travelling by plane or by train.

Models available for loads up to 120 kg and 150 kg.

The simple solution for transporting patients.

With 200 mm diameter wheels and a track width of just 297 mm the LiftKar PT FOLD is ideal for very steep and narrow spiral staircases. You will quickly become familiarised with the intuitive controls on the LiftKar PT FOLD stairclimber. The most important thing is to get a feel for balance while operating the stairclimber. The integrated level switch is a great help in this respect. New personnel will quickly learn to handle this system with confidence.

The washable seat cover can be wiped clean and removed by simply undoing a zip. While you are not using the LiftKar PT FOLD it can be simply folded away! Saves space at work and on the road. The LiftKar PT FOLD is lightweight and can easily be stowed away in any vehicle. And with the in-transit charger you can recharge the battery unit on the move - so that the LiftKar PT FOLD is ready for action whenever you are.

Models available for loads up to 130 kg and 160 kg.

The professional solution for hand-propelled and transport wheelchairs.

If you rely on a wheelchair for getting around, the LiftKar PT UNIVERSAL offers you more mobility in non-barrier-free buildings. Whether it is on holiday or visiting friends. No worries: these stairclimbers move smoothly and softly without leaving marks or scratches on floor and stair surfaces.

For self-propelled wheelchairs and transport chairs: simply roll onto the platform and secure in place with the retention clamp. Apply the wheelchair brakes, and you are ready to go!

Folds away compactly for quick and easy stowage. Also ideal for professional personnel transport.

Models available for loads up to 130 kg (286 lbs) and 160 kg (352 lbs).

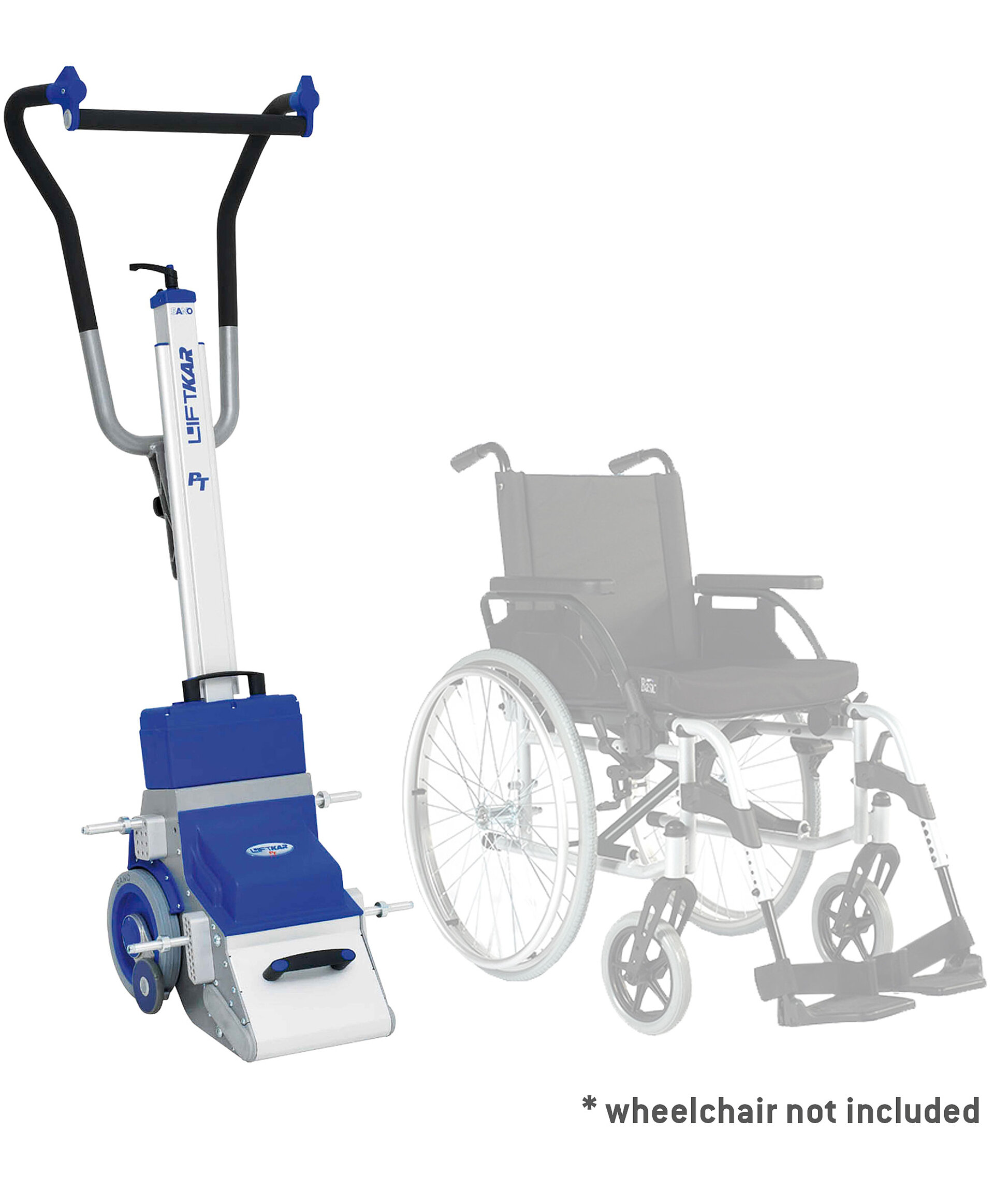

To fit to your existing wheelchair.

If you rely on a wheelchair for getting around, the LiftKar PT ADAPT offers you more mobility in non-barrier-free buildings. Whether it is on holiday or visiting friends. No worries: these stairclimbers move smoothly and softly without leaving marks or scratches on floor and stair surfaces.

To use the LiftKar PT ADAPT with your own wheelchair, the necessary adapter is fitted by an authorised workshop. This is easily done with most makes and models of wheelchair.

Models available for loads up to 130 kg (286lbs) and 160 kg (352lbs).

The complete solution with a high-quality wheelchair.

If you rely on a wheelchair for getting around, the LiftKar PT PLUS offers you more mobility in non-barrier-free buildings. Whether it is on holiday or visiting friends. No worries: these stairclimbers move smoothly and softly without leaving marks or scratches on floor and stair surfaces.

The LiftKar PT PLUS is a lightweight and compact companion that is particularly quick and easy to assemble. The high-quality wheelchair is supplied as part of the package!

For people weighing up to 125 kg.

The specialist for indoors.

The LiftKar PT S Kids is the ideal stairclimber for in and around the house, in schools and adjoining areas. The compact design of the LiftKar PT S Kids makes it especially suitable for use on narrow or winding staircases.

The LiftKar PT S Kids includes the special adapter plate for transporting seat shells.

Models available for loads up to 130 kg and 160 kg.

The versatile professional

The LiftKar PT UNIVERSAL Kids offers you more mobility in non-barrier-free buildings! It is suitable for most manual wheelchairs: simply roll onto the platform and secure in place with the retention clamp. Apply the wheelchair brakes, and you are ready to go!

Folds away compactly for quick and easy stowage.

Models available for loads up to 130 kg and 160 kg.





Applications

The LiftKar PT stairclimbers
in daily situations

Extras & Accessoires

Additional options
matching your needs

quick-change battery unit 5.2 Ah, weight 4.3 kg, capacity 5.2 Ah, voltage 24 VDC

Art. no. 004 150

i

Battery unit BU-PT

Standard equipment

100-230 VAC

Art. no. 045141

i

Battery charger PT/SAL/HD

Standard equipment

Art. no. 945 120

i

In-transit charger BC 10-30 VDC-PT

Optionally available

lap belt
for LiftKar PT S, PT OUTDOOR
Art. no. 945 118

lap belt
for LiftKar  PT UNIVERSAL complete
Art. no. 945 165

i

Lap belt

Optionally available

for LiftKar PT S, PT OUTDOOR

Art. no. 945 144

i

5 point belt system

Optionally available

Art. no. 947 030
Fits to: LiftKar PT S, PT OUTDOOR

i

headrest grey

Optionally available

Art. no. 945 642


Fits to: LiftKar PT UNIVERSAL

i

Wheelchair WT (without brackets)

Optionally available

without stairclimber
Art. no. 945 110

i

Wheelchair WTB (incl. brackets)

Optionally available

Backrest clamp
330 mm - 500 mm
Art. no. 945 103


Fits to: LiftKar PT UNIVERSAL

i

Backrest clamp standard

Standard equipment

wide
360 mm - 560 mm
Art. no. 945 131


narrow
270 mm - 380 mm
Art. no. 945 114


Fits to: LiftKar PT UNIVERSAL

i

Backrest clamp with special width

Optionally available

special depth
420 mm - 520 mm
Art. no. 945 177

special depth wide
490 mm - 590 mm
Art. no. 946 140

special depth narrow
330 mm - 400 mm
Art. no. 945 197

Fits to: LiftKar PT UNIVERSAL

i

Backrest clamp special depth

Optionally available

210 mm - 460 mm
Art. no. 946 141

Fits to: LiftKar PT UNIVERSAL

i

Backrest clamp for children

Optionally available

Art. no. 945 157


Fits to: LiftKar PT OUTDOOR, PT S

i

Folding footrest

Optionally available

Lap belt for LiftKar PT PLUS mounted on the wheelchair.

Art. no. 945 119

i

Lap belt for LiftKar PT PLUS

Optionally available

Art. no. 945 158


Fits to: LiftKar PT S, PT OUTDOOR, PT FOLD

i

Chest- and lap belt

Optionally available

44 cm wide
Art. no. 945 148

54 cm wide
Art. no. 945 153


Fits to: LiftKar PT OUTDOOR, PT S

i

Soft armrests

Optionally available

Art. no. 945 153

Fits to: LiftKar PT OUTDOOR, PT S

i

Soft armrest with increased distance

Optionally available

54 cm
Art. no. 945 146


Fits to: LiftKar PT OUTDOOR, PT S

i

Armrests with increased distance

Optionally available

Narrow side platforms mounted on PT UNIVERSAL instead of standard platform.
Total width 700 mm - 27.5".

Art. no. 945 138

i

Side platform narrow for PT UNIVERSAL

Optionally available

Side platforms (forward position) mounted on PT UNIVERSAL instead of standard platform.
Total width 760 mm - 29.9".

Art. no. 945 193

i

Side platform (forward position) for PT UNIVERSAL

Optionally available

Side platform narrow (forward position) mounted on LiftKar PT UNIVERSAL instead of standard platform. Ideal for kids' wheelchairs.
Total width 700 mm - 27.5".

Art. no. 945 194

i

Side platform narrow (forward position) for PT UNIVERSAL

Optionally available

ø110 mm / 4.3" - instead standard.
Ideal for climbing steps up to 225 mm / 8.8".

Art. no. 946 114

i

Tyre and hub PT

Optionally available

Technical Data

The LiftKar PT stairclimbers
in facts and figures

Description
Ideal for

Load capacity

Step height
For use on steep and narrow spiral staircases
Integrated seat
wheelchair transporter
single step & continuous mode

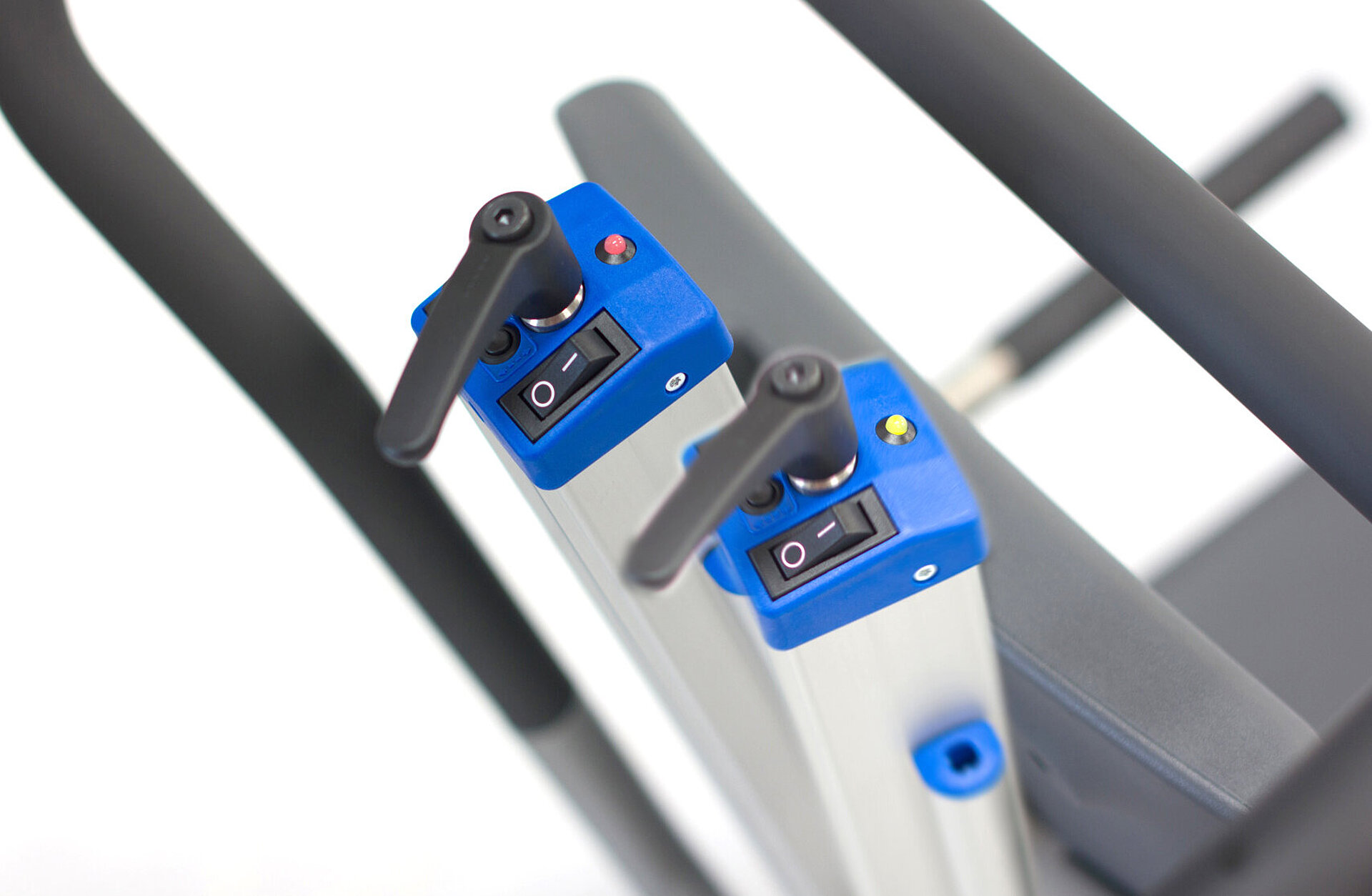

Acoustic and visual tilt angle warning
Stable step edge brake
Can be used for a wide range of wheelchairs
LiftKar PT S
safety and ergonomic handling for indoors.
climbs straight staircases (up and down) indoors

130 kg / 160 kg

220 mm
-
-
LiftKar PT OUTDOOR
safe transport outside the home, too
uneven terrain outdoors

120 kg / 150 kg

220 mm
-
-
LiftKar PT FOLD
the ideal solution for patient transport
patient transport and very narrow spiral staircases

130 kg / 160 kg

220 mm
-
-
LiftKar PT UNIVERSAL
the universal solution for hand-propelled and transport wheelchairs
professional transport of people with a variety of wheelchairs

130 kg / 160 kg

220 mm
-
LiftKar PT PLUS
the complete solution with a high-quality wheelchair
simple and easy docking of the wheelchair provided

125 kg

220 mm
-
-
LiftKar PT ADAPT
to fit to the existing wheelchair
adapter ensures perfect clamping of the existing wheelchair

130 kg / 160 kg

220 mm
-
Description
Ideal for

Load capacity

Total weight
Weight of the heaviest part
Autonomy (max.)
Climbing speed (steps / min.)
Step height
Lightweight construction
For use on steep and narrow spiral staircases
Easy to dismantle & stow away
Integrated seat

Dimensions (height/width/depth)

wheelchair transporter
single step & continuous mode
Acoustic and visual tilt angle warning
Motor-assisted exit aid
Stable step edge brake
Can be used for a wide range of wheelchairs
Stair landing dimensions (min.)
LiftKar PT S
safety and ergonomic handling for indoors.
climbs straight staircases (up and down) indoors



130 kg / 160 kg



35,3 kg
21,5 kg (Steigeinheit mit Sitz)
up to 500 steps
10 / 14 / 18 (Stufen / Min.)
220 mm







-
-
800 mm x 900 mm
LiftKar PT OUTDOOR
safe transport outside the home, too
uneven terrain outdoors



120 kg / 150 kg



37,8 kg
24 kg (Steigeinheit mit Sitz)
up to 500 steps
10 / 14/ 18 (steps / min.)
220 mm







-
-
800 mm x 900 mm
LiftKar PT FOLD
the ideal solution for patient transport
patient transport and very narrow spiral staircases



130 kg / 160 kg



28 kg
up to 500 steps
10 / 14 / 18 (steps / min.)
220 mm







-
-
800 mm x 900 mm
LiftKar PT UNIVERSAL
the universal solution for hand-propelled and transport wheelchairs
professional transport of people with a variety of wheelchairs



130 kg / 160 kg



28 kg
18 kg (Steigeinheit mit Ausleger)
up to 500 steps
10 / 14 / 18 (steps / min.)
220 mm
-







1.100 mm x 900 mm
LiftKar PT PLUS
the complete solution with a high-quality wheelchair
simple and easy docking of the wheelchair provided



125 kg



22,5 kg (Gerät ohne Rollstuhl)
14,5 kg (Steigeinheit)
up to 500 steps
10 / 14 / 18 (steps / min.)
220 mm
-







-
900 mm x 900 mm
LiftKar PT ADAPT
to fit to the existing wheelchair
adapter ensures perfect clamping of the existing wheelchair



130 kg / 160 kg



23 kg
14.5 kg (climber)
up to 500 steps
10 / 14 / 18 (steps / min.)
220 mm







-
900 mm x 900 mm
LiftKar PTR
easy-operate powered tracked stairclimber
universal wheelchairs



130 kg / 160 kg



38,2
28,6 kg (Basiseinheit)
up to 1,000 steps
4.5 / 5.5 / 6.5 (m / min.)
35°
-
-







-
-
-
970 mm x 970 mm
LiftKar PTR-L
longer version (+132 mm) of the easy-operate powered tracked stairclimber
lightweight electric wheelchairs



130 kg / 160 kg



39,4 kg
29,8 kg (Basiseinheit)
up to 1,000 steps
4,5 / 5,5 / 6,5 (m / Min.)
35°
-
-







-
-
-
1150 mm x 1150 mm
