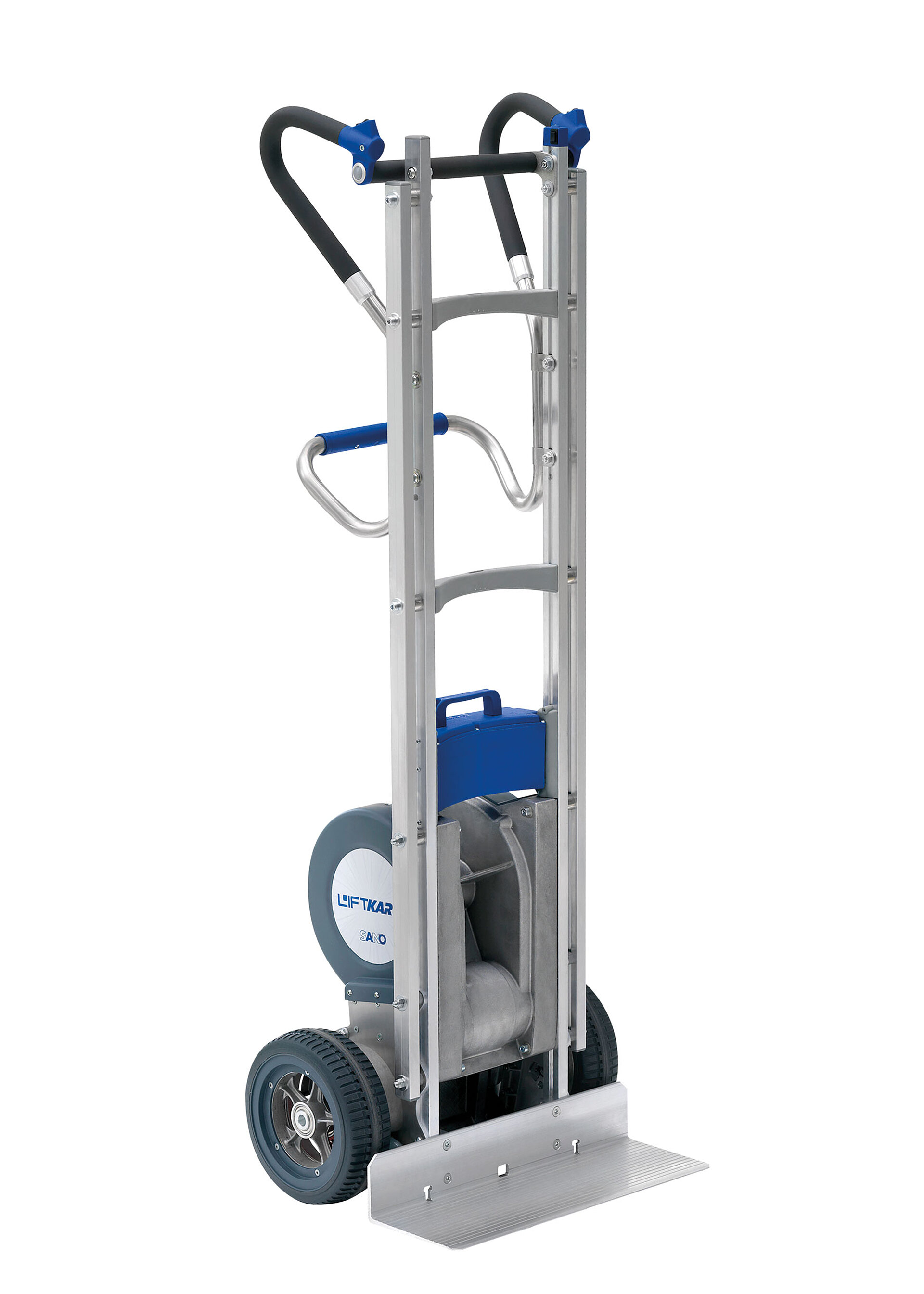

LiftKar HD
Powered stairclimber
for loads up to 360 kg

Heavy loads are difficult loads. Especially for transporting up and down stairs. There is a risk of accidents. And sometimes you need two, or even three, people to get the job done. With the LiftKar HD you can transport heavy loads quick and safe up and down stairs. From heavy boilers and white goods through to bulky rolls of linoleum - with the LiftKar HD you can easily handle transport problems reliably and quickly. The SANO powered stairclimber is ideal for use in transport and logistics companies, retail, trade and industry.

The heart of the LiftKar HD is the perfectly balanced climbing unit with two speed settings, single-step and continuous-step modes. The step edge brake system guarantees the highest level of safety.

The LiftKar HD is an investment that pays for itself very quickly. Where you needed somebody, or even two people, to help you in the past, now you can manage on your own, without great effort, safely and much faster.

Downloads Product Registration
for loads up to 360 kg

modular lightweight construction

perfectly balanced climbing unit for safe operation on steps and stairs
Features

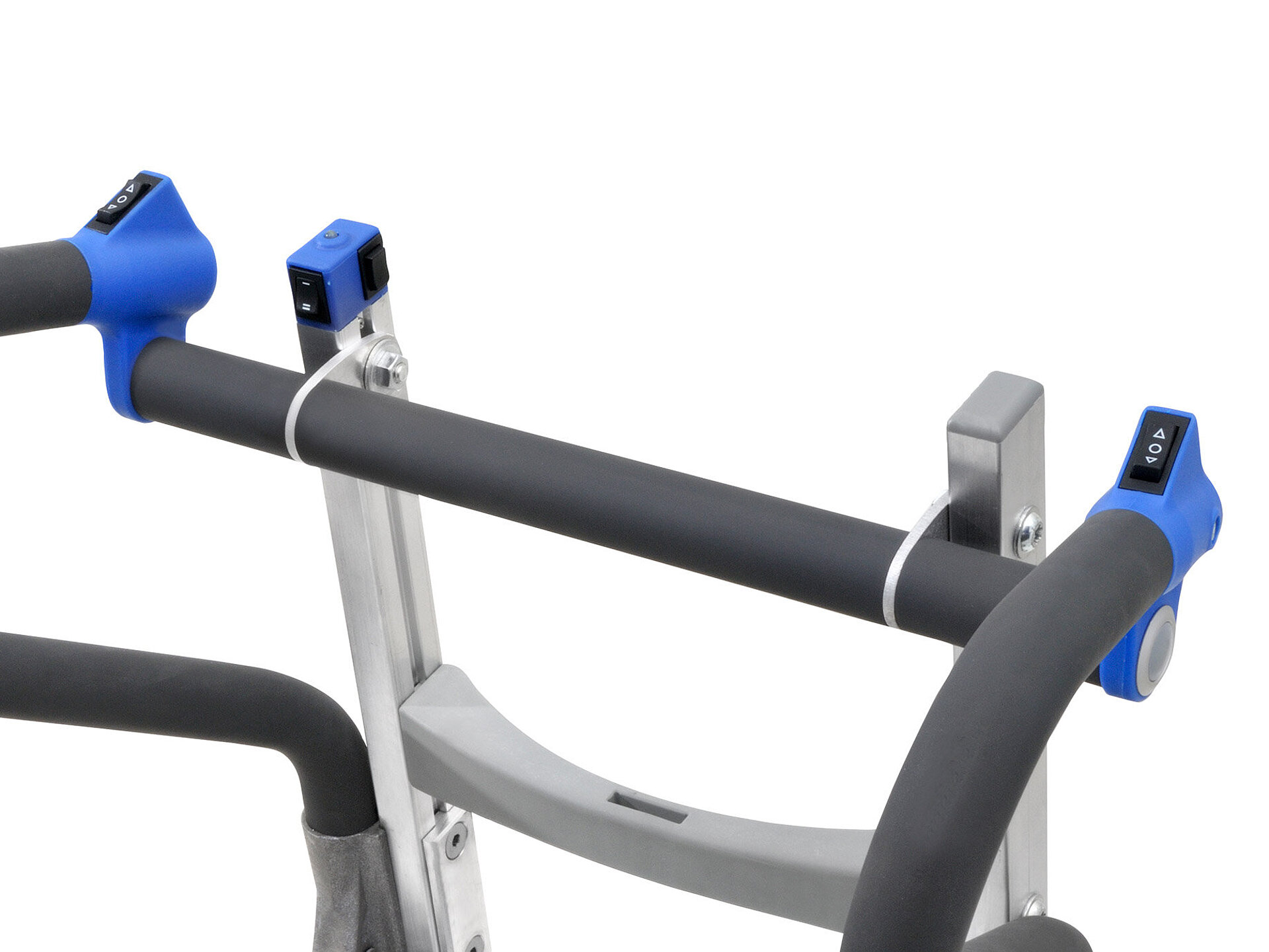

01UP/DOWN switches

LiftKar HD

UP/DOWN switches

UP/DOWN switch on both sides for left- and right-handed operators

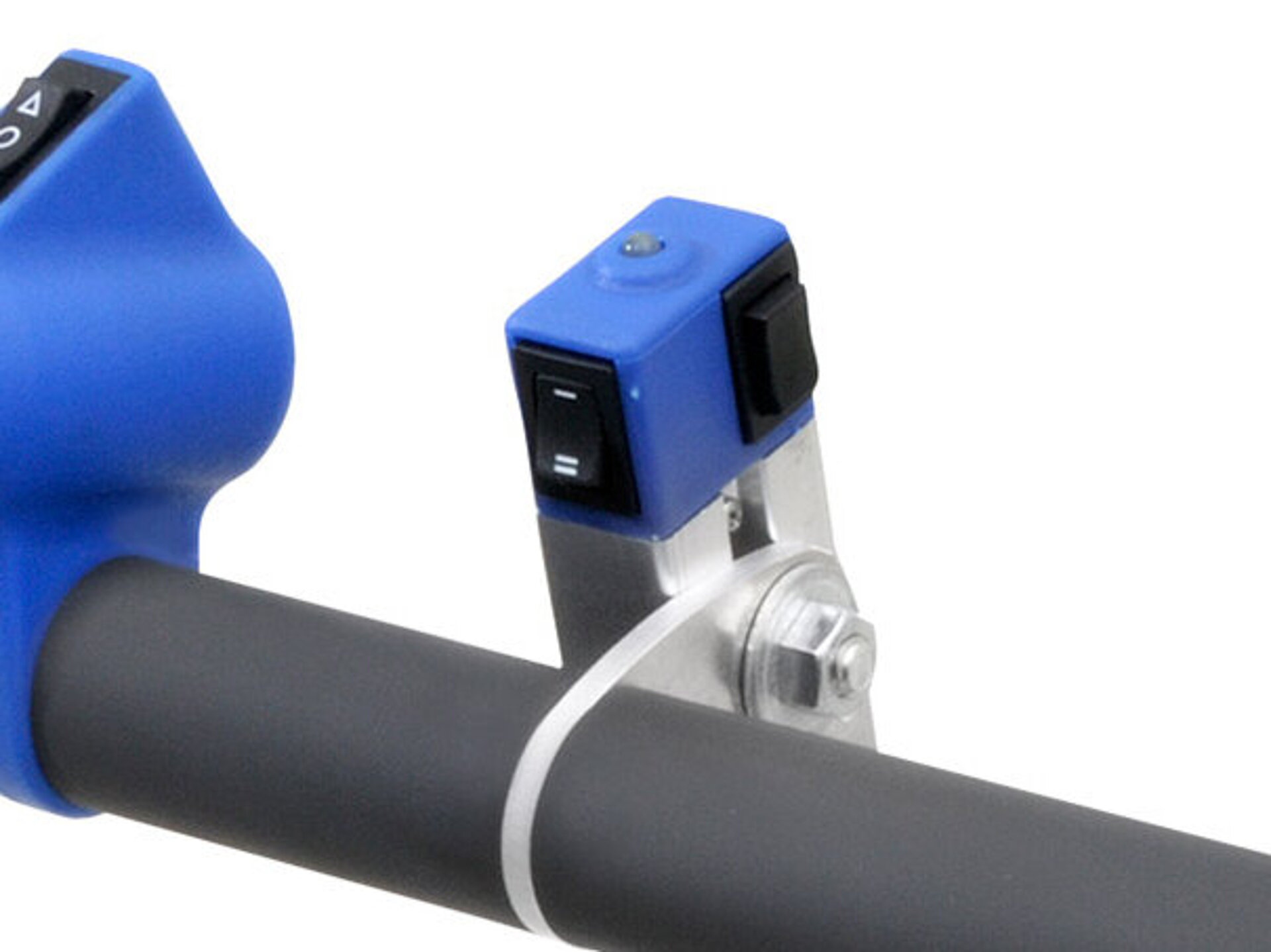

02control unit

LiftKar HD

control unit

The central switching element for activating the LiftKar HD, speed and operating mode selection.
LED for displaying battery status and driving modes.
Attached to the left frame profile.

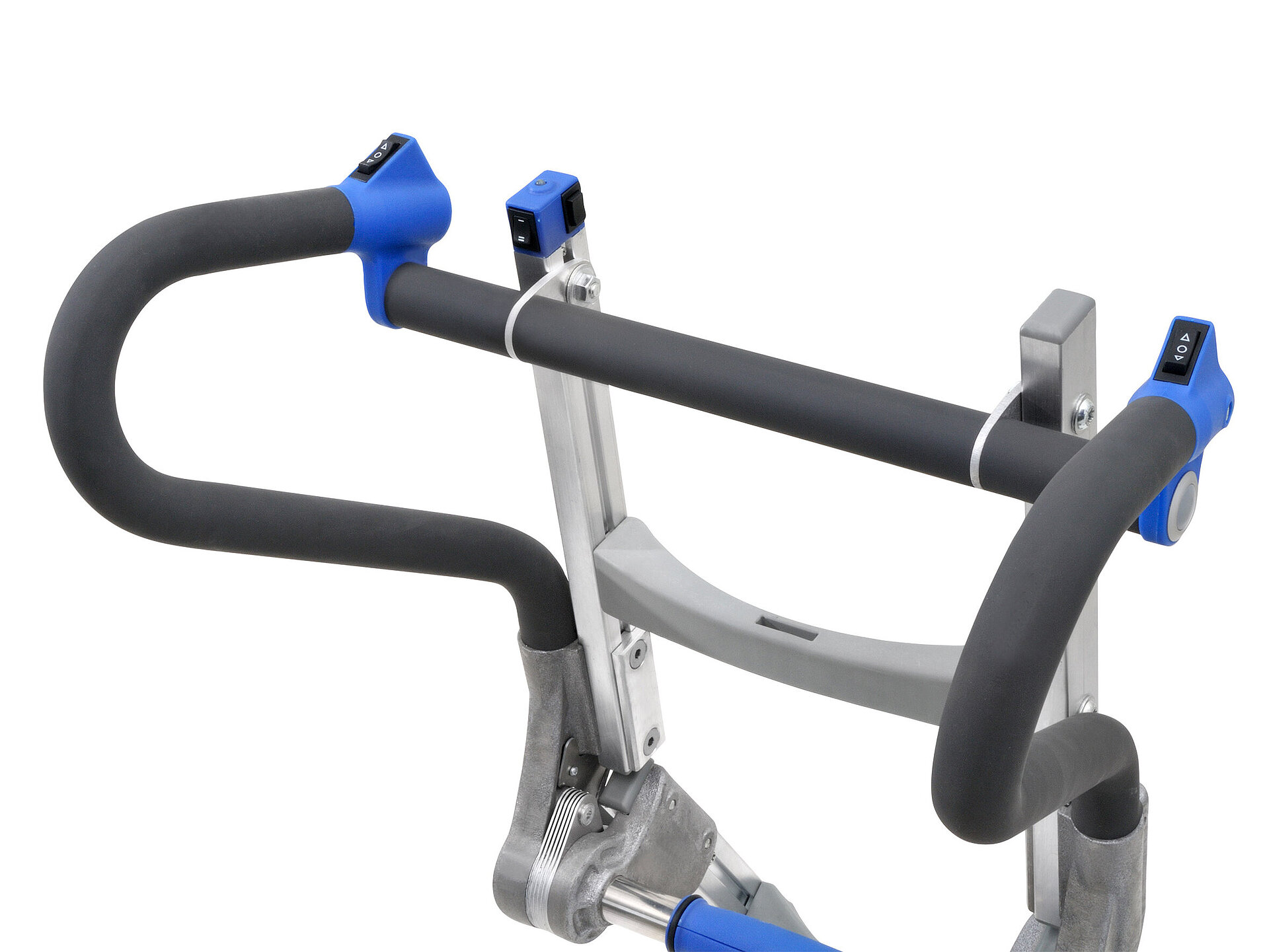

03upper handles

LiftKar HD

upper handles

with special rubber coating

04lower handle

LiftKar HD

lower handle

versatile handling

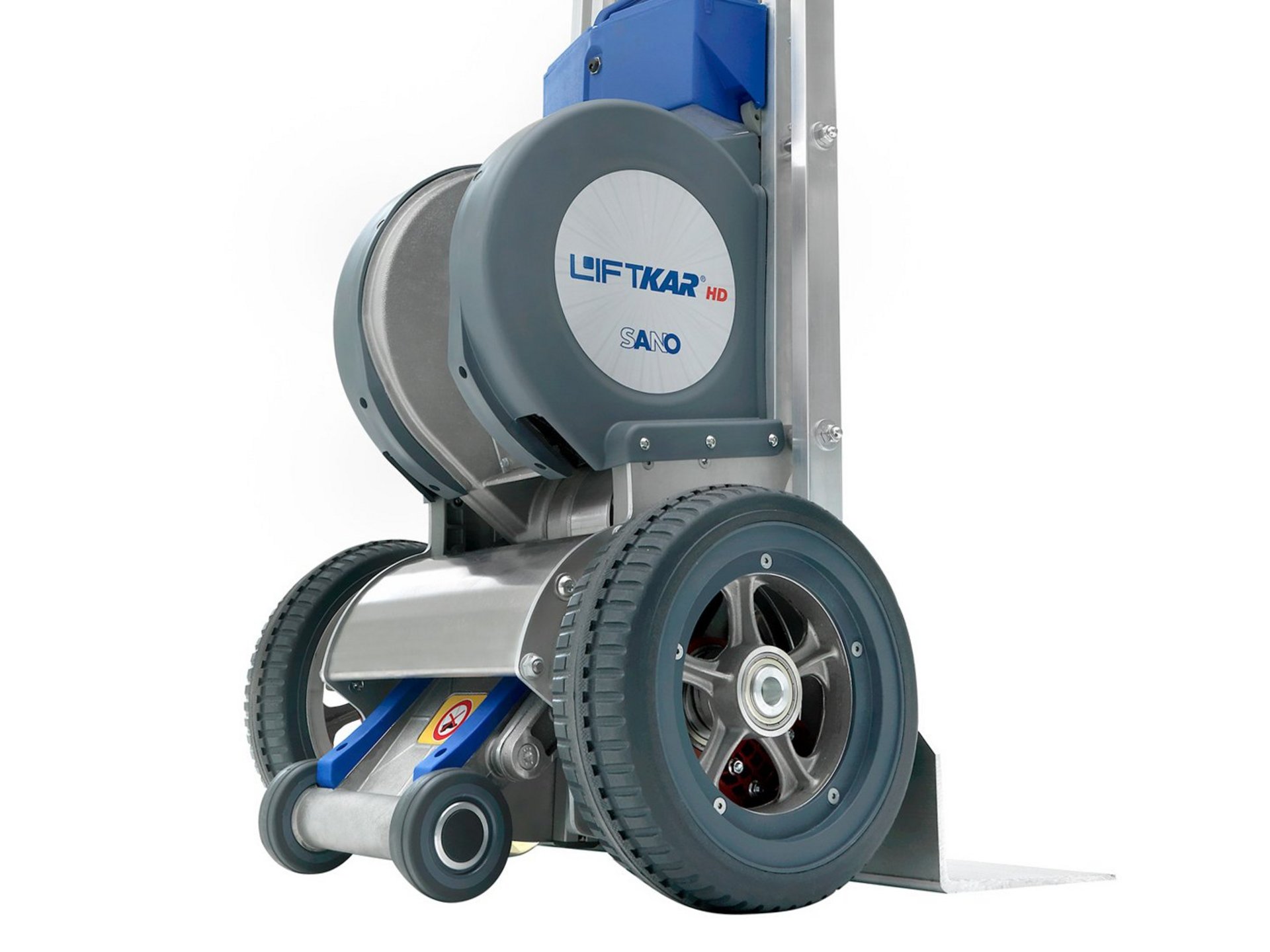

05powerful lifting unit

LiftKar HD

powerful lifting unit

The powerful lifting unit on the LiftKar HD stairclimbers

06puncture-proof tyres

LiftKar HD

puncture-proof tyres

The LiftKar HD stairclimber’s main wheels

07automatic step edge brake

LiftKar HD

automatic step edge brake

Step edge braking system specially protected in the rim.
Activates automatically when the device is switched on.

08double frame

LiftKar HD

double frame

maximum rigidity

09quick-change battery pack

LiftKar HD

quick-change battery pack

The LiftKar HD stairclimber quick-change battery pack.

Weight of 4 kg.

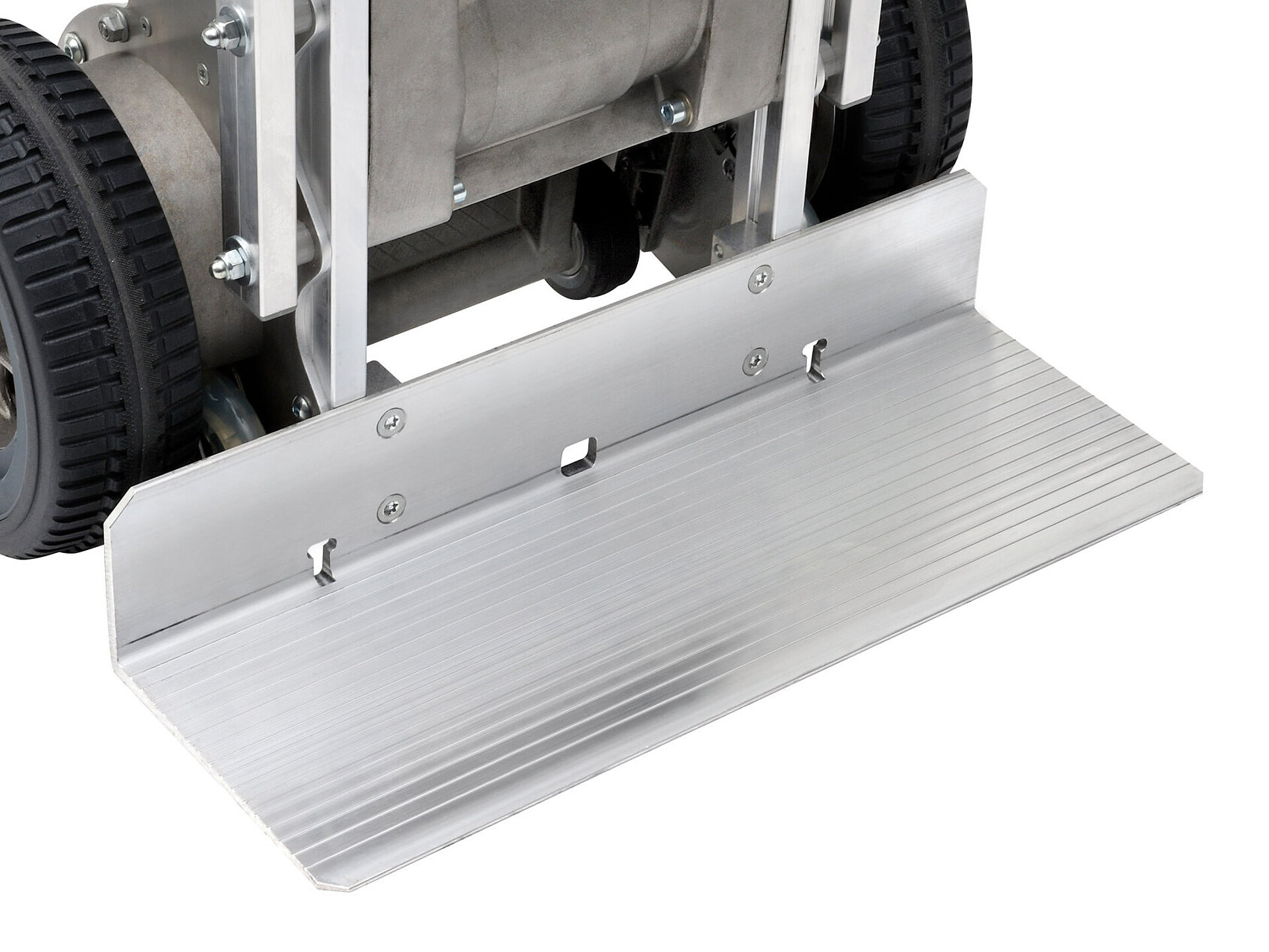

10toe plate

LiftKar HD

toe plate

Toolless accessory attachment

Details
Advantages

14 unbeatable advantages
to convince you

  1. for loads up to 360 kg
  2. for step heights up to 21 cm
  3. two operating modes (single-step mode/continuous mode)
  4. two climbing speeds
  5. modular lightweight construction
  6. rugged frame with patented SANO aluminium profiles
  7. innovative, integrated step edge braking system
  1. automatic shut-off mode
  2. ergonomic hand grips with non-slip rubber coating
  3. UP/DOWN switch on both sides for left- and right-handed operators
  4. perfectly balanced climbing unit for safe operation on steps and stairs
  5. puncture-proof tyres
  6. high-strength aluminium toe plate
  7. 24-V quick-change battery unit
Models

Full power for high and heavy loads.

Whether electrical enclosures, drink dispensers, gaming machines, large boilers, solar heating vessels, heavy rolls of linoleum or stacks of crates, the LiftKar HD UNI has been specially designed to transport high and heavy loads over every kind of stairs

Transporting high objects has usually been a balancing act but with the LiftKar HD UNI one can manage these tasks easily. Thanks to its sleek design and innovative climbing technology, high and heavy objects can be transported safely and effortlessly up and down narrow staircases and even spiral stairs.

Available for the following maximum loads:

  • LiftKar HD 220 UNI: for a maximum load of 220 kg
  • LiftKar HD 330 UNI: for a maximum load of 330 kg
  • LiftKar HD 360 UNI: for a maximum load of 360 kg

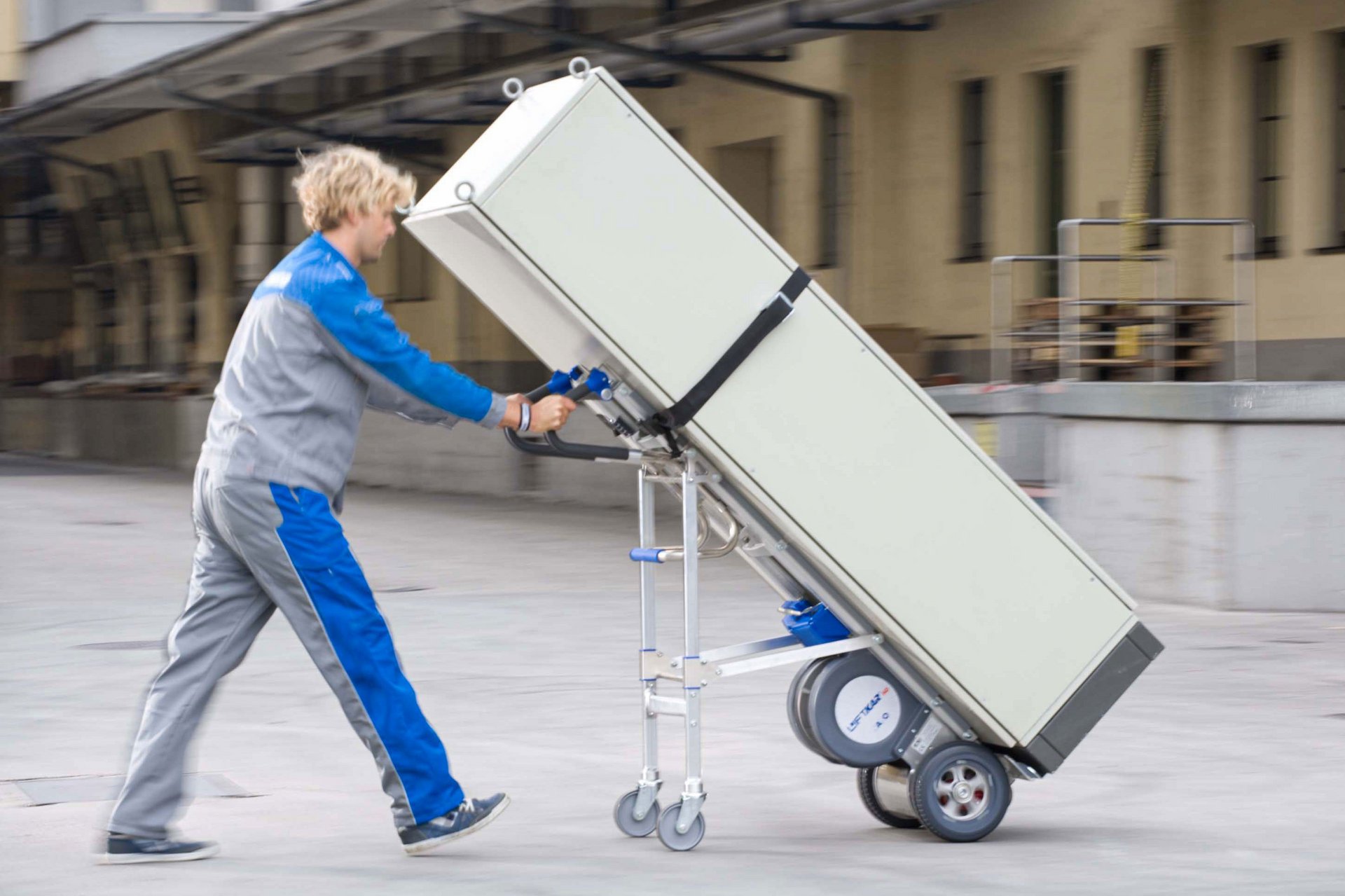

Transport tall and heavy loads perfectly, also on the level.

With the stairs behind us, we've still got level ground to cross. - With the LiftKar HD DOLLY you can increase your speed on the level ground as well. Once you've managed the stairs, the integrated Dolly system comes into play on level ground. It's not only about going up and down stairs. You'll often need to cross car parks and company premises too. With the Dolly system you can now do that a great deal faster. With the support wheels folded out, heavy loads can be pushed over level ground with minimum effort.

The system is activated in no time: simply lift the LiftKar HD, extend the Dolly and lock it into place. On level areas such as building sites and cobblestones, the puncture-proof tyres with an elastic, profiled running surface are ideal. The Dolly version is available for both the UNI model and FOLD model.

Available for the following maximum loads:

  • LiftKar HD 220 DOLLY: for a maximum load of 220 kg
  • LiftKar HD 330 DOLLY: for a maximum load of 330 kg
  • LiftKar HD 360 DOLLY: for a maximum load of 360 kg

Adjustable grip angle - ideal for compact, heavy goods.

Copiers, cast-iron stoves, boilers, linen trucks, batteries for telephone systems, lift motors etc. all have one thing in common: they are compact and heavy.

With the LiftKar HD FOLD you can set the inclination of the handles to the exact centre of gravity of the goods being transported. This means that you can maintain an upright posture while manoeuvring stairclimbers carrying even the heaviest loads up and down stairs. It's so easy: just release the clamping lever on the handlebar frame to set the ideal position of the hand grips in seconds. Friction plates ensure they remain securely in place when the clamping lever is tightened. The name says it all: on the LiftKar HD FOLD the handle bar unit can be folded away so that the stairclimber can be stowed on even the smallest of transport vehicles.

Available for the following maximum loads:

  • LiftKar HD 220 FOLD: for a maximum load of 220 kg
  • LiftKar HD 330 FOLD: for a maximum load of 330 kg
  • LiftKar HD 360 FOLD: for a maximum load of 360 kg

Move compact, heavy goods perfectly, also on the level.

The LiftKar HD FOLD DOLLY gives you all the advantages that the LiftKar HD FOLD offers for compact and heavy loads on stairs on the level ground as well. Once you've managed the stairs, the integrated Dolly system comes into play on level ground. You'll often need to cross car parks and company premises too, with the Dolly system you can now do that a great deal faster. The support wheels folded out, heavy loads can be pushed over level ground with minimum effort.

The system is activated in no time: simply lift the LiftKar HD, extend the Dolly and lock it into place. Transform in seconds from climbing stairs to rolling along on level ground. On level areas such as building sites and cobblestones, the puncture-proof tyres with an elastic, profiled running surface are ideal. The dolly version is available for both the UNI model and FOLD model.

Available for the following maximum loads:

  • LiftKar HD 220 FOLD DOLLY: for a maximum load of 220 kg
  • LiftKar HD 330 FOLD DOLLY: for a maximum load of 330 kg
  • LiftKar HD 360 FOLD DOLLY: for a maximum load of 360 kg

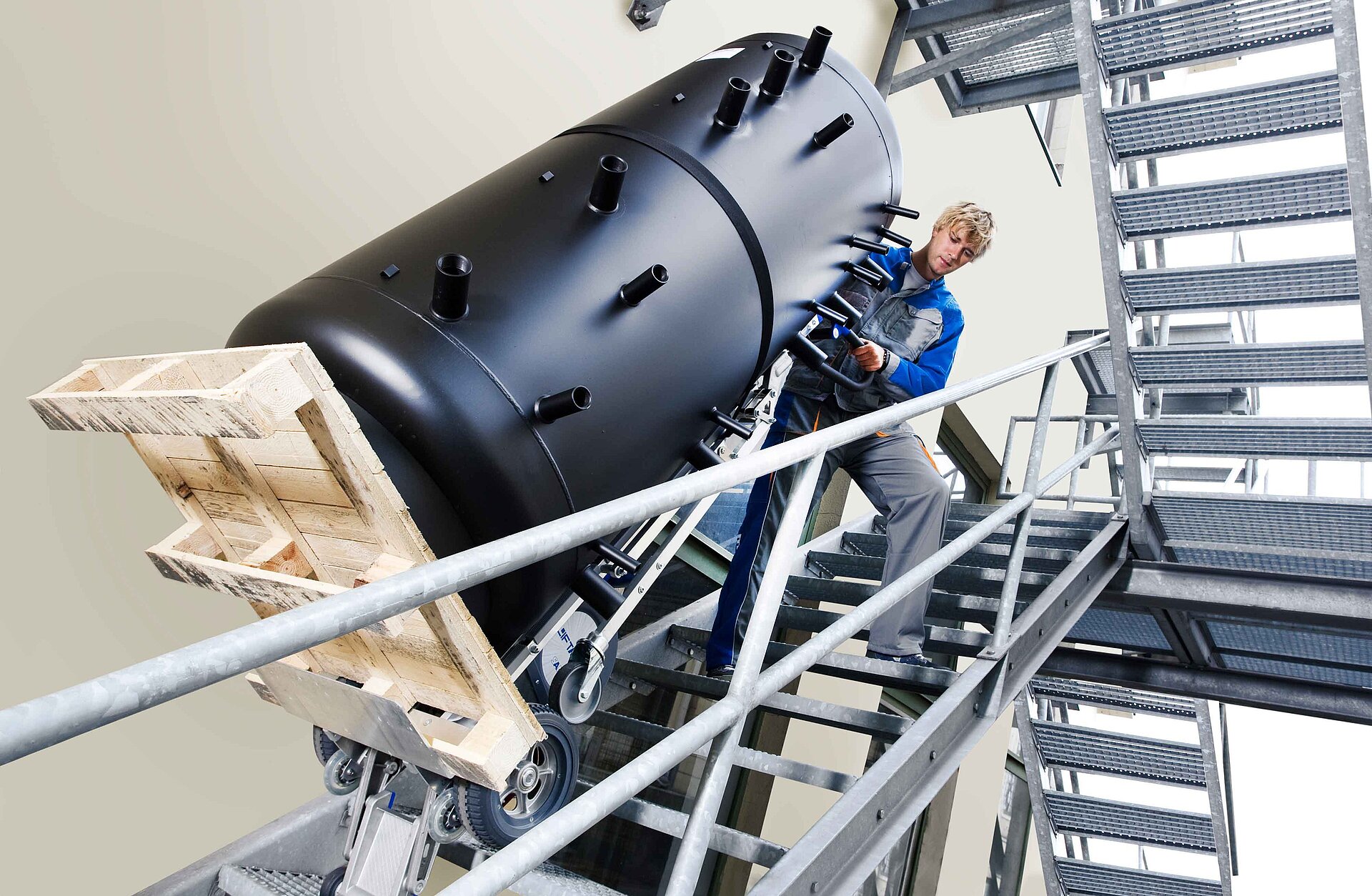

Applications

The LiftKar HD powered
stairclimbers in daily situations

Extras & Accessories

Additional options
matching your needs

Quick-change battery unit BU-SAL/HD
24 VDC, 5 Ah

Art. no. 004 110

i

Battery unit BU-SAL/HD

Standard equipment

100-230 VAC

Art. no. 045141

i

Battery charger PT/SAL/HD

Standard equipment

Art. no. 930 600

i

In-transit charger BC 10-30 VDC

Optionally available

including in-transit battery charger BC 10-30 VDC-SAL
Art. no. 930 114

i

Battery holder with in-transit charger

Optionally available

Keeps the battery securely in place on bumpy ground.
Art. no. 930 140

i

Battery-blocker

Optionally available

Art. no. 936 001

i

Rocker switch with cover

Optionally available

Bag incl. holder, blue

for belt, charger, and much more

Art. no. 935 140



Bag incl. holder, red

for belt, charger, and much more

Art. no. 935 146

i

Bag incl. holder

Optionally available

fixation belt 3,5 m / 50 mm

With special hooks for optimum load fixation and robust metal lashing buckle.


Art. no. 930 123

i

Fixation belt 3,5 m / 50 mm

Optionally available

Fixation belt 4,20 m / 50 mm

With special hooks for optimum load fixation and robust metal lashing buckle.

Art. no. 930 156

i

Fixation belt 4,20 m / 50 mm

Optionally available

Ideal for simplifying the tipping of the load

Art. no. 960 128

i

Tilting lever HD complete

Optionally available

Protection plate for NEO LiftKar HD FOLD and LiftKar HD FOLD
Art. no. 960 122

Protection plate for NEO LiftKar HD UNI, DOLLY and LiftKar HD UNI, DOLLY
Art. no. 960 123

Protection plate for NEO LiftKar HD FOLD DOLLY and LiftKar HD FOLD DOLLY
Art. no. 960 124

i

Protection plate HD

Optionally available

for loads up to 150 kg
Art. no. 930 153

(incl. fixation belt 3,5 m / 50 mm
Art. no. 930 123)


i

Door and panel holder HD

Optionally available

Capacity 80 kg, max. number of chairs approx. 15 pieces

Art. no. 960 125

i

Chair holder for HD

Optionally available

for your company logo

Art. no. 935100

i

Advertising panel

Optionally available

equipped with four double castors.
width 464 mm x depth 345 mm  /  w. 18.3" x d. 13.6"

Art. no. 960 101

i

Toe plate attachment HD - Narrow

Optionally available

equipped with four double castors.
width 535 x depth 345 mm  /  w. 21" x d. 13.4"

Art. no. 960 105

i

Toe plate attachment HD - Wide

Optionally available

equipped with four double castors.
width 535 x depth 550 mm  /  w. 21" x d. 21.6"

Art. no. 960 139

i

Toe plate attachment HD - XL

Optionally available

equipped with four double castors.
width 464 mm x depth 550 mm  /  w. 18.3" x d. 21.6"

Art. no. 960 144

i

Toe plate attachment HD - XL Narrow

Optionally available

680 mm x 300 mm  /  26.8" x 11.8"

Art. no. 960 108

i

Attachable toe plate HD 680 x 300

Optionally available

530 mm x 400 mm  /  20.9" x 15.7"

Art. no. 960 109

i

Attachable toe plate HD 530 x 400

Optionally available

590 mm x 300 mm  /  23.2" x 11.8"

Art. no. 960 110

i

Attachable toe plate HD 590 x 300

Optionally available

780 mm x 190 mm  /  30.7" x 7.5"

Art. no. 960 111

i

Attachable toe plate HD 780 x 190

Optionally available

590 mm x 210 mm  /  23.2" x 8.3"

Art. no. 960 112

i

Attachable toe plate HD 590 x 210

Optionally available

900 mm x 210 mm  /  35.4" x 8.3"

Art. no. 960 113

i

Attachable toe plate HD 900 x 210

Optionally available

Art. no. 960 114

i

Transportation device HD for laundry containers

Optionally available

Instead of the standard toe plate.

Art. no. 065 108

i

Toe plate HD 600

Optionally available

Instead of the standard toe plate.

Art. no. 065 162

i

Toe plate HD 650

Optionally available

Instead of the standard toe plate.

Art. no. 065 163

i

Toe plate HD 750

Optionally available

Instead of the standard toe plate.

Art. no. 065 164

i

Toe plate HD 800

Optionally available

Technical data

The LiftKar HD powered stairclimbers
in facts and figures

Description

Load capacity

Load capacity | Pounds

Weight base unit without battery
Weight base unit without battery | Pounds
Battery weight
Battery weight | Pounds
Autonomy (max.)
Climbing speed (steps / min.)
For use on steep and narrow spiral staircases
Foldable
Transportation over stairs
Transportation on flat surfaces
Maximum step height

Dimensions (height/width/depth)

Dimensions (height/width/depth) | Inch

LiftKar HD UNI
full power for high and heavy loads



220 kg / 330 kg / 360 kg





485 lbs / 727.5 lbs / 793.6 lbs





34 kg





74.9 lbs





4 kg





8.8 lbs



220 / 120 / 90 steps
9-15 / 6-10 / 6-10 [steps/min.]
✔
-
✔
✔
210 mm

1615 / 560 / 485 mm


63.6" / 22" / 19.1"

LiftKar HD FOLD
adjustable grip angle - ideal for compact, heavy goods



220 kg / 330 kg / 360 kg





485 lbs / 727.5 lbs / 793.6 lbs





35 kg





77.1 lbs





4 kg





8.8 lbs



220 / 120 / 90 steps
9-15 / 6-10 / 6-10 [steps/min.]
✔
✔
✔
✔
210 mm

1615 / 560 / 485 mm
(folded 1195 / 560 / 485 mm)

63.6" / 22" / 19.1"
(folded 47" / 22" / 19.1")

LiftKar HD DOLLY
HD Uni with folding support wheels - for long distances



220 kg / 330 kg / 360 kg





485 lbs / 727.5 lbs / 793.6 lbs





40 kg





88.2 lbs





4 kg





8.8 lbs



220 / 120 / 90 steps
9-15 / 6-10 / 6-10 [steps/min.]
✔
-
✔
✔
210 mm

1615 / 560 / 485 mm

63.6" / 22" / 19.1"

LiftKar HD FOLD DOLLY
HD Fold with folding support wheels - for long distances



220 kg / 330 kg / 360 kg





485 lbs / 727.5 lbs / 793.6 lbs





41 kg





90.4 lbs





4 kg





8.8 lbs



220 / 120 / 90 steps
9-15 / 6-10 / 6-10 [steps/min.]
✔
✔
✔
✔
210 mm

1781 / 560 / 485 mm
(folded 1361 / 560 / 545 mm)

70.1" / 22" / 19,1"
(folded 53.5" / 22" / 21.4")

download as PDF
Description
Ideal for

Load capacity

Load capacity | Pounds

Weight base unit without battery
Weight base unit without battery | Pounds
Battery weight
Battery weight | Pounds
Autonomy (max.)
Climbing speed (steps / min.)
For use on steep and narrow spiral staircases
Foldable
Transportation over stairs
Transportation on flat surfaces
Maximum step height

Dimensions (height/width/depth)

Dimensions (height/width/depth) | Inch

LiftKar HD UNI
full power for high and heavy loads
electrical enclosures, drink dispensers, gaming machines, large boilers, solar heating vessels, heavy rolls of linoleum...



220 kg / 330 kg / 360 kg





485 lbs / 727.5 lbs / 793.6 lbs





34 kg





74.9 lbs





4 kg





8.8 lbs



220 / 120 / 90 steps
9-15 / 6-10 / 6-10 [steps/min.]
✔
-
✔
✔
210 mm

1615 / 560 / 485 mm


63.6" / 22" / 19.1"

NEO Liftkar HD UNI
fully strong for high and heavy loads
Control cabinets, beverage vending machines, gaming machines, large boilers, solar storage tanks, heavy linoleum rolls.



220 kg / 330 kg / 360 kg





485 lbs / 727.5 lbs / 793.6 lbs





35,5 kg





78.2 lbs





1,6 kg





3.5 lbs



700 / 500 / 500 steps
10-15 / 6-10 / 6-10 [steps/min.]
✔
-
✔
✔
210 mm

1615 / 560 / 485 mm

63.6" / 22" / 19.1"

download as PDF
Description
Ideal for

Load capacity

Load capacity | Pounds

Weight base unit without battery
Weight base unit without battery | Pounds
Battery weight
Battery weight | Pounds
Autonomy (max.)
Climbing speed (steps / min.)
For use on steep and narrow spiral staircases
Foldable
Transportation over stairs
Transportation on flat surfaces
Maximum step height

Dimensions (height/width/depth)

Dimensions (height/width/depth) | Inch

LiftKar HD FOLD
adjustable grip angle - ideal for compact, heavy goods
photocopiers, cast-iron stoves, boilers, batteries, lift motors, safes



220 kg / 330 kg / 360 kg





485 lbs / 727.5 lbs / 793.6 lbs





35 kg





77.1 lbs





4 kg





8.8 lbs



220 / 120 / 90 steps
9-15 / 6-10 / 6-10 [steps/min.]
✔
✔
✔
✔
210 mm

1615 / 560 / 485 mm
(folded 1195 / 560 / 485 mm)

63.6" / 22" / 19.1"
(folded 47" / 22" / 19.1")

NEO LiftKar HD FOLD
Adjustable handle inclination - ideal for compact, heavy goods
copiers, stoves, boilers, batteries, elevator motors, safes



220 / 330 / 360 kg





485 lbs / 727.5 lbs / 793.6 lbs





36,2 kg





79.8 lbs





1,6 kg





3.5 lbs



700 / 500 / 500 steps
10-15 / 6-10 / 6-10 [steps/min.]
✔
✔
✔
✔
210 mm

1615 / 560 / 485 mm
(folded 1195 / 560 / 485 mm)

63.6" / 22" / 19.1"
(folded 47" / 22" / 19.1")

download as PDF
Description
Ideal for

Load capacity

Load capacity | Pounds

Weight base unit without battery
Weight base unit without battery | Pounds
Battery weight
Battery weight | Pounds
Autonomy (max.)
Climbing speed (steps / min.)
For use on steep and narrow spiral staircases
Foldable
Transportation over stairs
Transportation on flat surfaces
Maximum step height

Dimensions (height/width/depth)

Dimensions (height/width/depth) | Inch

LiftKar HD DOLLY
HD Uni with folding support wheels - for long distances
electrical enclosures, drink dispensers, gaming machines, large boilers, solar heating vessels, heavy rolls of linoleum,



220 kg / 330 kg / 360 kg





485 lbs / 727.5 lbs / 793.6 lbs





40 kg





88.2 lbs





4 kg





8.8 lbs



220 / 120 / 90 steps
9-15 / 6-10 / 6-10 [steps/min.]
✔
-
✔
✔
210 mm

1615 / 560 / 485 mm

63.6" / 22" / 19.1"

NEO LiftKar HD DOLLY
HD Universal with fold-out support wheels - for long distances
Control cabinets, beverage vending machines, gaming machines, large boilers, solar storage tanks, heavy linoleum rolls.



220 kg / 330 kg / 360 kg





485 lbs / 727.5 lbs / 793.6 lbs





42 kg





92.6 lbs





1,6 kg





3.5 lbs



700 / 500 / 500 steps
10-15 / 6-10 / 6-10 [steps/min.]
✔
-
✔
✔
210 mm

1615 / 560 / 485 mm

63.6" / 22" / 19.1"

download as PDF
Description
Ideal for

Load capacity

Load capacity | Pounds

Weight base unit without battery
Weight base unit without battery | Pounds
Battery weight
Battery weight | Pounds
Autonomy (max.)
Climbing speed (steps / min.)
For use on steep and narrow spiral staircases
Foldable
Transportation over stairs
Transportation on flat surfaces
Maximum step height

Dimensions (height/width/depth)

Dimensions (height/width/depth) | Inch

LiftKar HD FOLD DOLLY
HD Fold with folding support wheels - for long distances
photocopiers, cast-iron stoves, boilers, batteries, lift motors, safes



220 kg / 330 kg / 360 kg





485 lbs / 727.5 lbs / 793.6 lbs





41 kg





90.4 lbs





4 kg





8.8 lbs



220 / 120 / 90 steps
9-15 / 6-10 / 6-10 [steps/min.]
✔
✔
✔
✔
210 mm

1781 / 560 / 485 mm
(folded 1361 / 560 / 545 mm)

70.1" / 22" / 19,1"
(folded 53.5" / 22" / 21.4")

NEO LiftKar HD FOLD DOLLY
HD Fold with fold-out support wheels - for long distances
copiers, stoves, boilers, batteries, elevator motors, safes



220 / 330 / 360 kg





485 lbs / 727.5 lbs / 793.6 lbs





43,5 kg





95.4 lbs





1,6 kg





3.5 lbs



700 / 500 / 500 steps
10-15 / 6-10 / 6-10 [steps/min.]
✔
✔
✔
✔
210 mm

1781 / 560 / 485 mm
(folded 1361 / 560 / 545 mm)

70.1" / 22" / 19.1"
(folded 53.6" / 22" / 21.4")

Videos
Downloads

All information in PDF format

CatalogueDownload PDF
Data sheetDownload PDF
Repair SheetDownload PDF
Instruction ManualDownload PDF
