Description

LiftKar PTR
Powered tracked stairclimber

The LiftKar PTR is a tracked stairclimber that helps you safely convey wheelchair users up and down stairs.

The LiftKar PTR is a mobile unit that has been developed for operating on staircases. Wheelchair users can now move around more freely and helpers no longer need to strain their backs on the stairs.

The extremely lightweight LiftKar PTR tracked stairclimber is impressively easy to use, has 3 speeds, acoustic and visual inclination warning as well as a range of up to 1000 steps on a single battery charge. It's so easy - simply release two levers to dismantle the LiftKar PTR into two easily portable parts. The LiftKar PTR ensures safe handling on the stairs.

There are two versions of the LiftKar PTR available for two maximum loads.

speed control
extended range
overload protection
Features

LiftKar PTR

controls handle unit

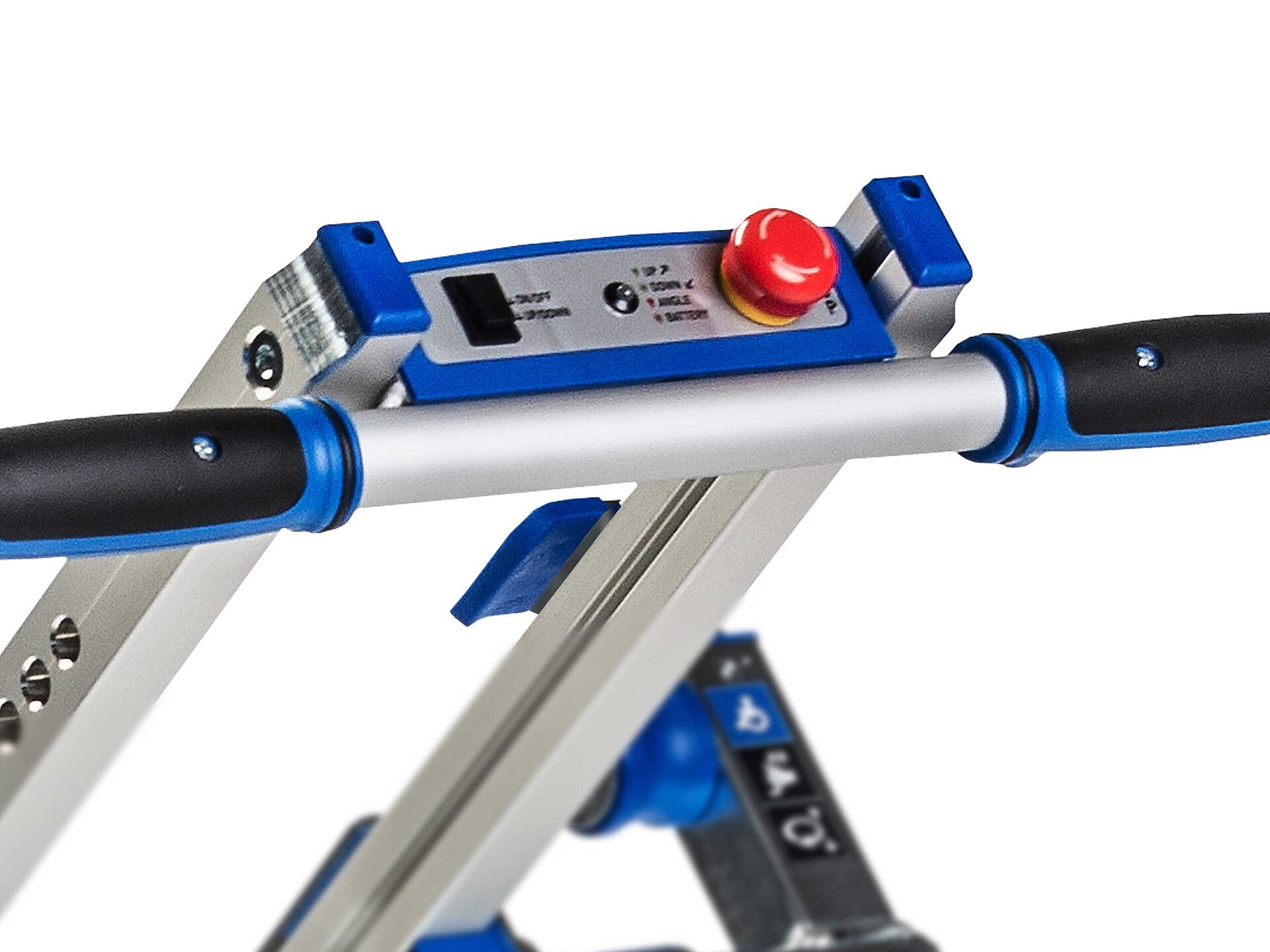

The control panel on the handle unit of the LiftKar PTR tracked stairclimber

02handle unit

LiftKar PTR

controls base unit

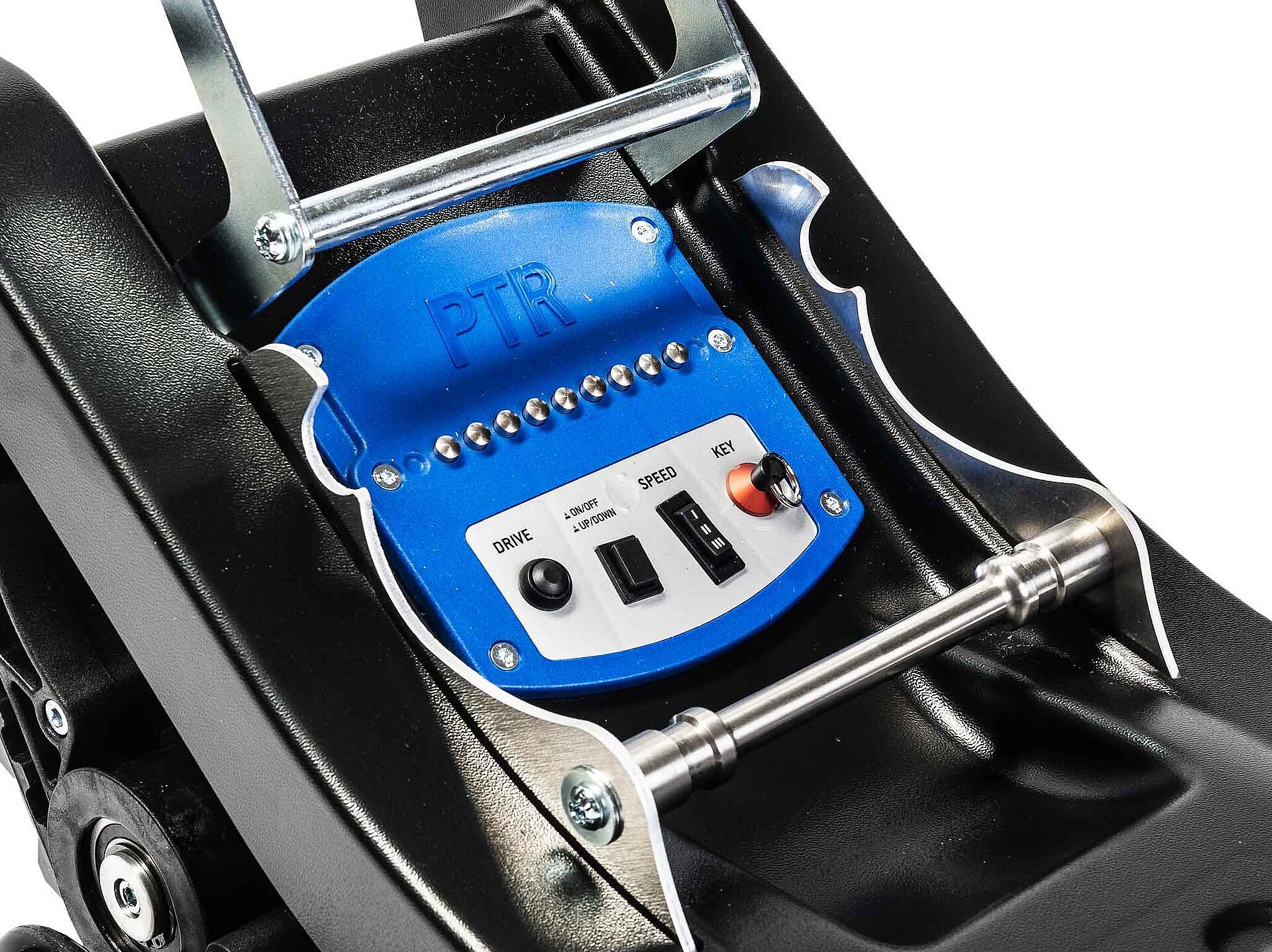

The control panel on the base unit of the LiftKar PTR tracked stairclimber

04emergency stop

LiftKar PTR

backrest clamp

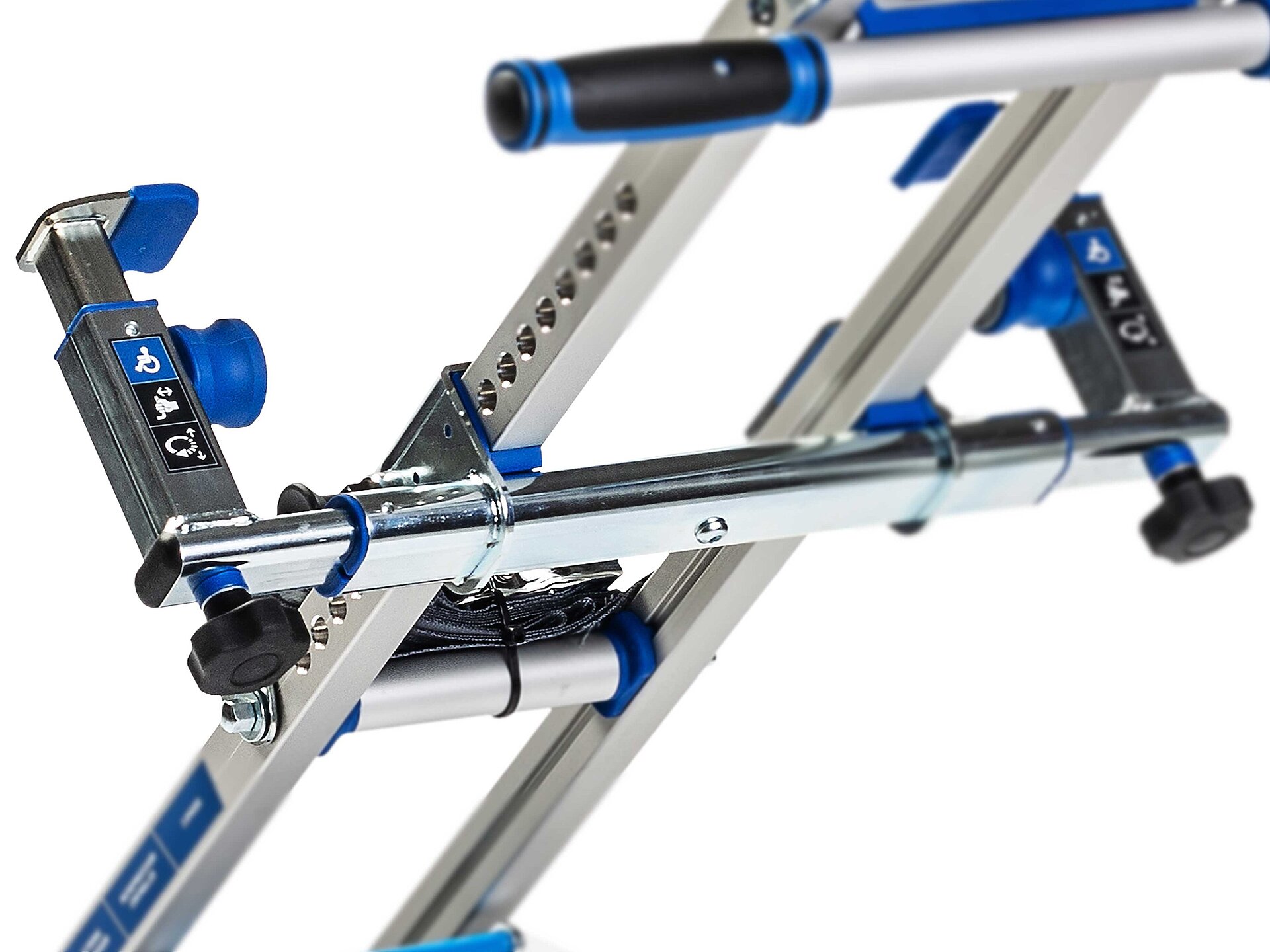

The adjustable backrest clamp on the LiftKar PTR tracked stairclimber

06lap belt
07power connector cord
08base unit
Application examples

Daily situations

Applications

10 unbeatable advantages
to convince you

  1. extremely easy to operate
  2. lightest tracked stairclimber on the market
  3. range of up to 1000 steps on a single battery charge
  4. easy to dismantle and take with you
  5. electronic inclination sensor including speed monitor
  1. acoustic and visual inclination warning
  2. LED indication for driving direction
  3. electronic overload protection
  4. microprocessor controlled operation system
  5. emergency stop switch
Variants

Powered tracked stairclimber for universal wheelchairs

The LiftKar PTR is the compact basic version that enables manual wheelchairs to be transported up and down stairs conveniently and safely. Available for the following maximum loads (wheelchair and passenger):

  • LiftKar PTR 130 (Art. no. 075 701): for a maximum load of 130 kg
  • LiftKar PTR 160 (Art. no. 075 702): for a maximum load of 160 kg

Powered tracked stairclimber for lightweight electric wheelchairs

The LiftKar PTR-L is the longer version (+132 mm) of the LiftKar PTR tracked stairclimber, which is available as an option with factory-fitted drive-on ramps (Art. no. 975 110) for transporting in poeple in powered wheelchairs and multi-function wheelchairs. Available for the following maximum loads (wheelchair and passenger):

  • LiftKar PTR-L 130 (Art. no. 075 705): for a maximum load of 130 kg
  • LiftKar PTR-L 160 (Art. no. 075 703): for a maximum load of 160 kg

Ideal for straight stairs

The LiftKar PTR Kids enables manual wheelchairs to be transported up and down straight stairs. The LiftKar PTR version for kids is equipped with a narrow backrest clamp as standard.

Recommended additional equipment:

  • drive-on ramps
  • front castors
  • laser position determination
Applications

The LiftKar PTR powered tracked
stairclimber in daily situations

Extras & Accessoires

Additional options
matching your needs

Art. no. 075 664

i

Power connector cord

Standard equipment

fix mounted



Art. no. 075 105

i

Lap belt PTR

Standard equipment

Mini ramps

up to track width 710 mm

Art. no. 975 143



Mini ramps

up to track width 740 mm

Art. no. 975 165

i

Mini ramps

Optionally available

specially for transport chairs
or wheelchairs with small wheels

Art. no. 975 103


i

Add-on ramps

Optionally available

Ideal for LiftKar PTR-L
Can be retrofitted

Art. no. 975 106

i

Drive-on ramps PTR (retrofit set)

Optionally available

ideal for small wheelchairs.
Can be retrofitted.

Art. no. 975 181

i

Drive-on ramps - narrow PTR (retrofit set)

Optionally available

Art. no. 075 104

i

Headrest

Optionally available

Art. no. 975 141

i

Headrest with sliding elements

Optionally available

Art. no. 975 104

i

Backrest cushion

Optionally available

Art. no. 975 105

i

Expansion Wheelchair retention arm +100 mm

Optionally available

Art. no. 975 140

i

Belt system for drive-on ramps

Optionally available

ideal for LiftKar PTR-L

Art. no. 975 110

i

Drive-on ramps

Optionally available

ideal for small wheelchairs

Art. no. 975 182

i

Drive-on ramps - narrow

Optionally available

Laser position determination (mounted) for the LiftKar PTR variants*.
*currently not possible in combination with miniramps PTR

Art. no. 976 105

i

Laser position determination (mounted)

Optionally available

Art. no. 975 115

i

Tilting device

Optionally available

instead of standard wheelchair retention arm

Art. no. 975 100

i

Folding wheelchair retention arm

Optionally available

Front castors
for LiftKar PTR
Art. no. 975 168


Front castors
for LiftKar PTR-L
Art. no. 975 142

i

Front castors

Optionally available

Backrest clamp – adjustable plates
Standard (clamping range: 360 mm - 500 mm)
Art. no. 975 146


Backrest clamp – adjustable plates
Wide (clamping range: 460 mm - 600 mm)
Art. no. 975 149


Backrest clamp
Wide (clamping range: 440 mm - 600 mm)
Art. no. 975 129

i

Backrest clamp

Optionally available

Grey tracks, fitted
for LiftKar PTR
Art. no. 075 087


Grey tracks, fitted
for LiftKar PTR-L
Art. no. 076 043

i

Grey tracks, fitted

Optionally available

Technical data

The LiftKar PTR tracked stairclimber
in facts and figures

Description
Ideal for

Load capacity

Step height
For use on steep and narrow spiral staircases
Integrated seat
wheelchair transporter
single step & continuous mode
Acoustic and visual tilt angle warning
Stable step edge brake
Can be used for a wide range of wheelchairs
LiftKar PTR
easy-operate powered tracked stairclimber
universal wheelchairs



130 kg / 160 kg



35°
-
-
-
-
LiftKar PTR-L
longer version (+132 mm) of the easy-operate powered tracked stairclimber
lightweight electric wheelchairs



130 kg / 160 kg



35°
-
-
-
-
Description
Ideal for

Load capacity

Total weight
Weight of the heaviest part
Autonomy (max.)
Climbing speed (steps / min.)
Step height
Lightweight construction
For use on steep and narrow spiral staircases
Easy to dismantle & stow away
Integrated seat

Dimensions (height/width/depth)

wheelchair transporter
single step & continuous mode
Acoustic and visual tilt angle warning
Motor-assisted exit aid
Stable step edge brake
Can be used for a wide range of wheelchairs
Stair landing dimensions (min.)
LiftKar PTR
easy-operate powered tracked stairclimber
universal wheelchairs



130 kg / 160 kg



38,2
28,6 kg (Basiseinheit)
35°
-
-







-
-
-
up to 1,000 steps
4.5 / 5.5 / 6.5 (m / min.)
970 mm x 970 mm
LiftKar PTR-L
longer version (+132 mm) of the easy-operate powered tracked stairclimber
lightweight electric wheelchairs



130 kg / 160 kg



39,4 kg
29,8 kg (Basiseinheit)
35°
-
-







-
-
-
up to 1,000 steps
4,5 / 5,5 / 6,5 (m / Min.)
1150 mm x 1150 mm
LiftKar PT S
safety and ergonomic handling for indoors.
climbs straight staircases (up and down) indoors



130 kg / 160 kg



35,3 kg
21,5 kg (Steigeinheit mit Sitz)
220 mm







-
-
up to 500 steps
10 / 14 / 18 (Stufen / Min.)
800 mm x 900 mm
LiftKar PT Outdoor
safe transport outside the home, too
uneven terrain outdoors



120 kg / 150 kg



37,8 kg
24 kg (Steigeinheit mit Sitz)
220 mm







-
-
up to 500 steps
10 / 14/ 18 (steps / min.)
800 mm x 900 mm
LiftKar PT Fold
the ideal solution for patient transport
patient transport and very narrow spiral staircases



130 kg / 160 kg



28 kg
220 mm







-
-
up to 500 steps
10 / 14 / 18 (steps / min.)
800 mm x 900 mm
LiftKar PT Universal
the universal solution for hand-propelled and transport wheelchairs
professional transport of people with a variety of wheelchairs



130 kg / 160 kg



28 kg
18 kg (Steigeinheit mit Ausleger)
220 mm
-







up to 500 steps
10 / 14 / 18 (steps / min.)
1.100 mm x 900 mm
LiftKar PT Plus
the complete solution with a high-quality wheelchair
simple and easy docking of the wheelchair provided



125 kg



22,5 kg (Gerät ohne Rollstuhl)
14,5 kg (Steigeinheit)
220 mm
-







-
up to 500 steps
10 / 14 / 18 (steps / min.)
900 mm x 900 mm
LiftKar PT Adapt
to fit to the existing wheelchair
adapter ensures perfect clamping of the existing wheelchair



130 kg / 160 kg



23 kg
14.5 kg (climber)
220 mm







-
-
up to 500 steps
10 / 14 / 18 (steps / min.)
900 mm x 900 mm
