LiftKar MTK
Powered stairclimber in
steel for loads up to 310 kg.

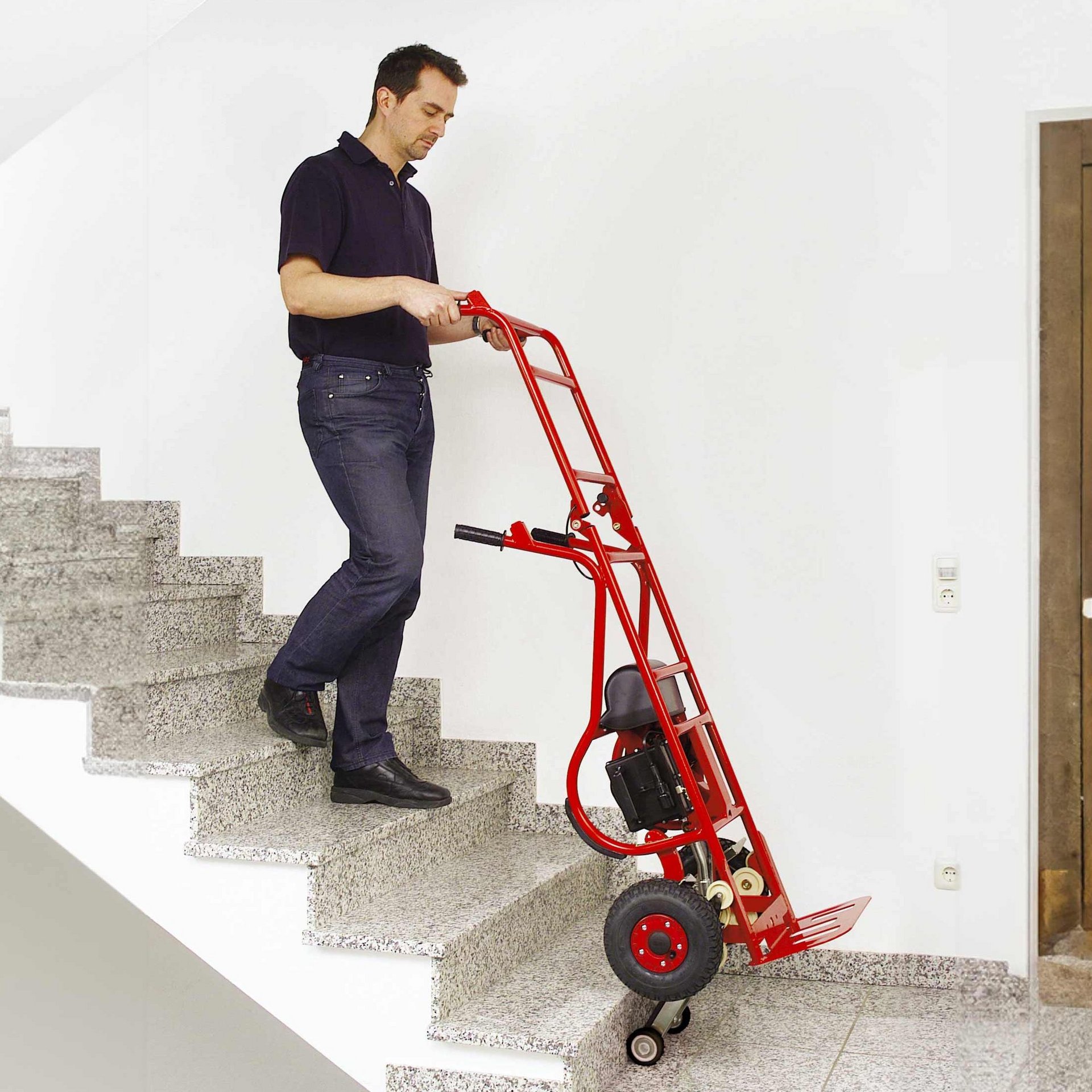

Stairs used to be a major hurdle for transporting heavy goods; sometimes several people had to handle objects up and down stairs, which often presented a high risk of back injury. That was until the introduction of LiftKar MTK.

LiftKar MTK: easy to operate and ideal for a wide range of applications

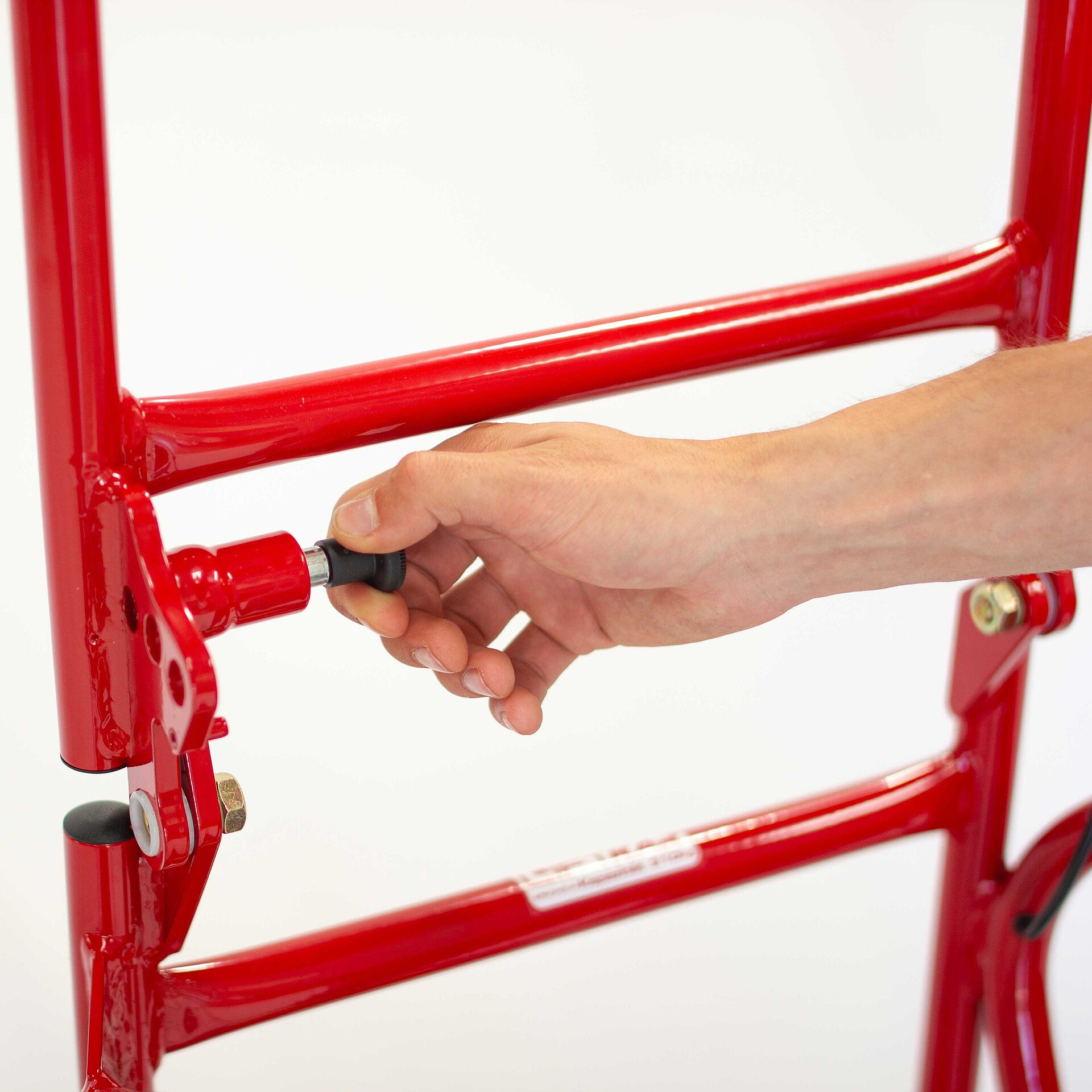

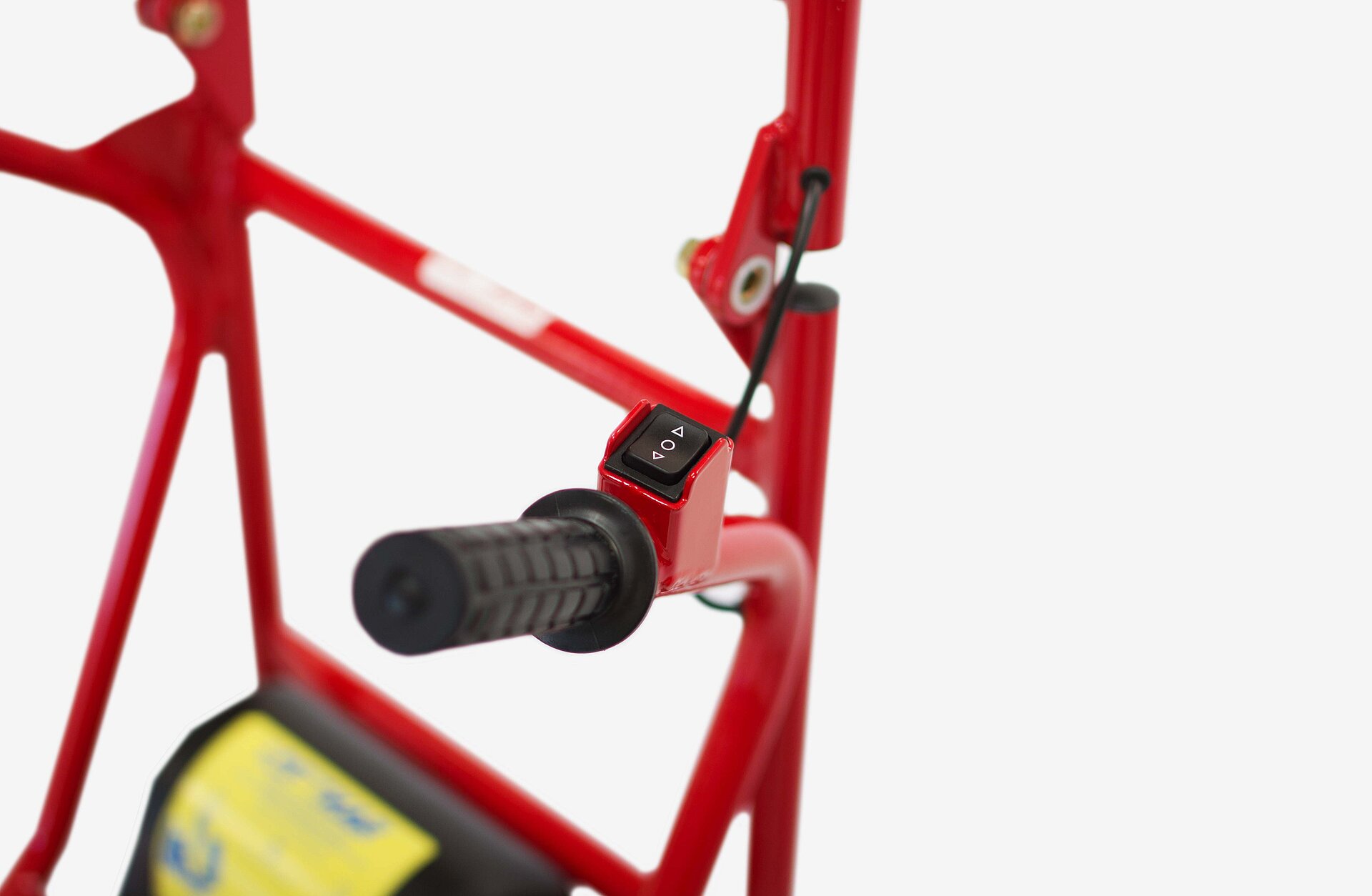

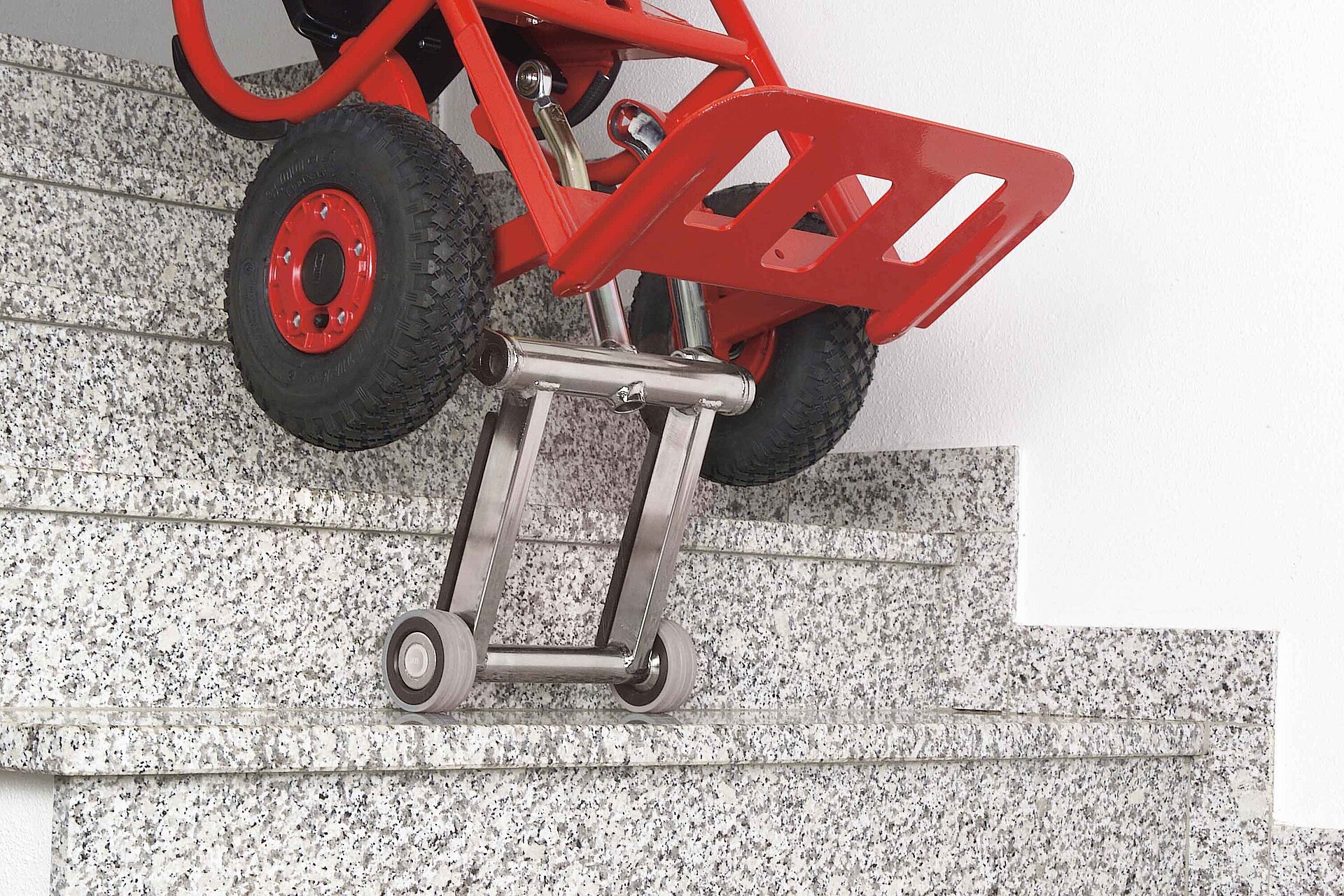

The heart of the handtruck - the electric lifting system with drive crank - is controlled using electronic switches integrated into the right-hand grip. A sliding clutch protects the handtruck from mechanical overload. Double handles and a folding frame provide optimum control of the load in every position. A practical quick-change battery unit is included. In order to ensure uninterrupted use, the battery can also be charged quickly in any location using a special charger for in-transit use.

for loads up to 310 kg
even spiral staircases
easy operation and smooth movement
Details
Advantages

8 unbeatable advantages
to convince you

  1. up to 310 kg
  2. effortless, safe and quick up and down almost any steps (even spiral staircases)
  3. easy operation; smooth movement
  4. steel construction for maximum robustness
  1. easy to operate and ideal for a wide range of applications
  2. sliding clutch for mechanical overload protection
  3. quick-change battery unit and optional in-transit battery charger for continous operation

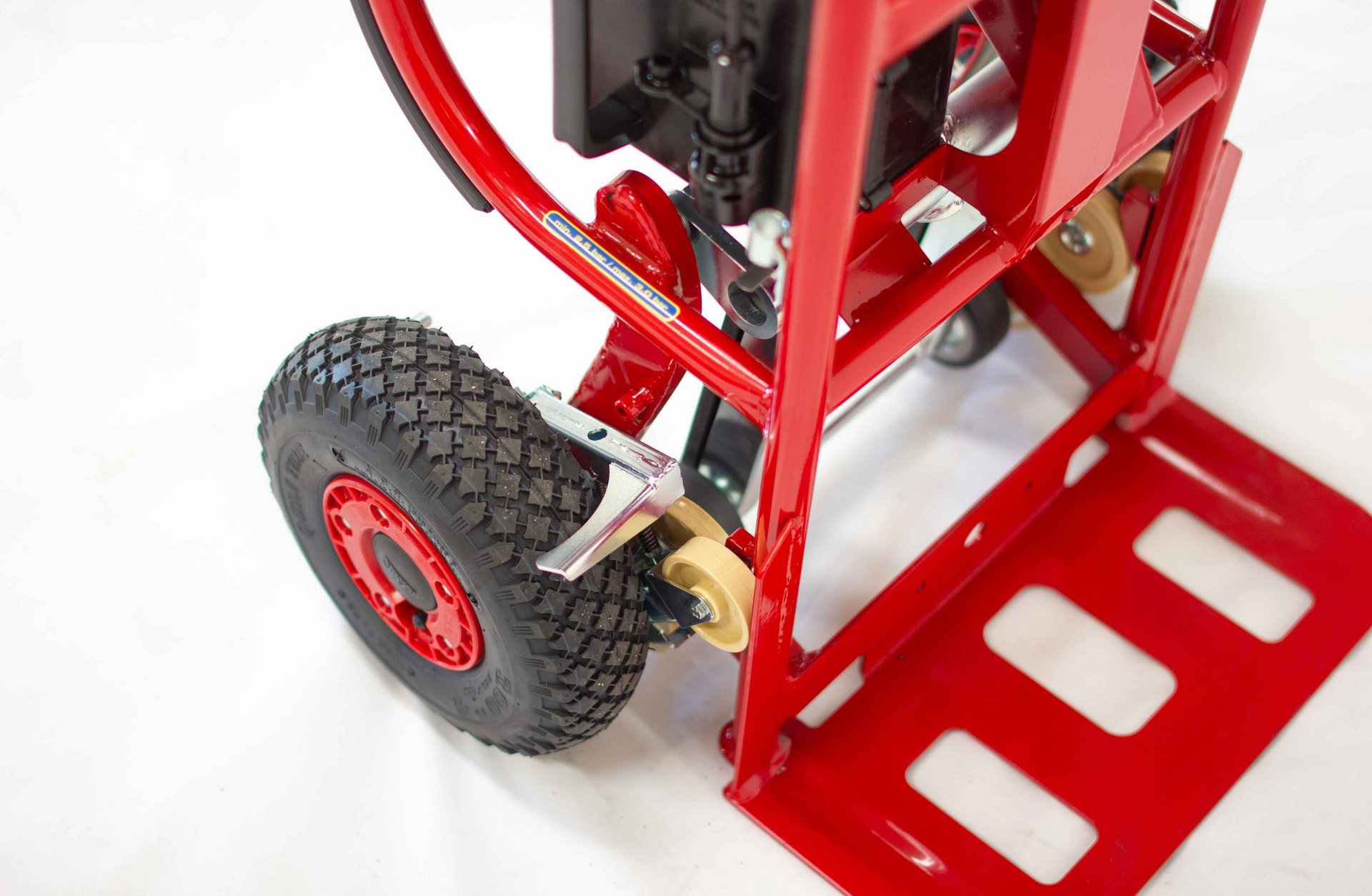

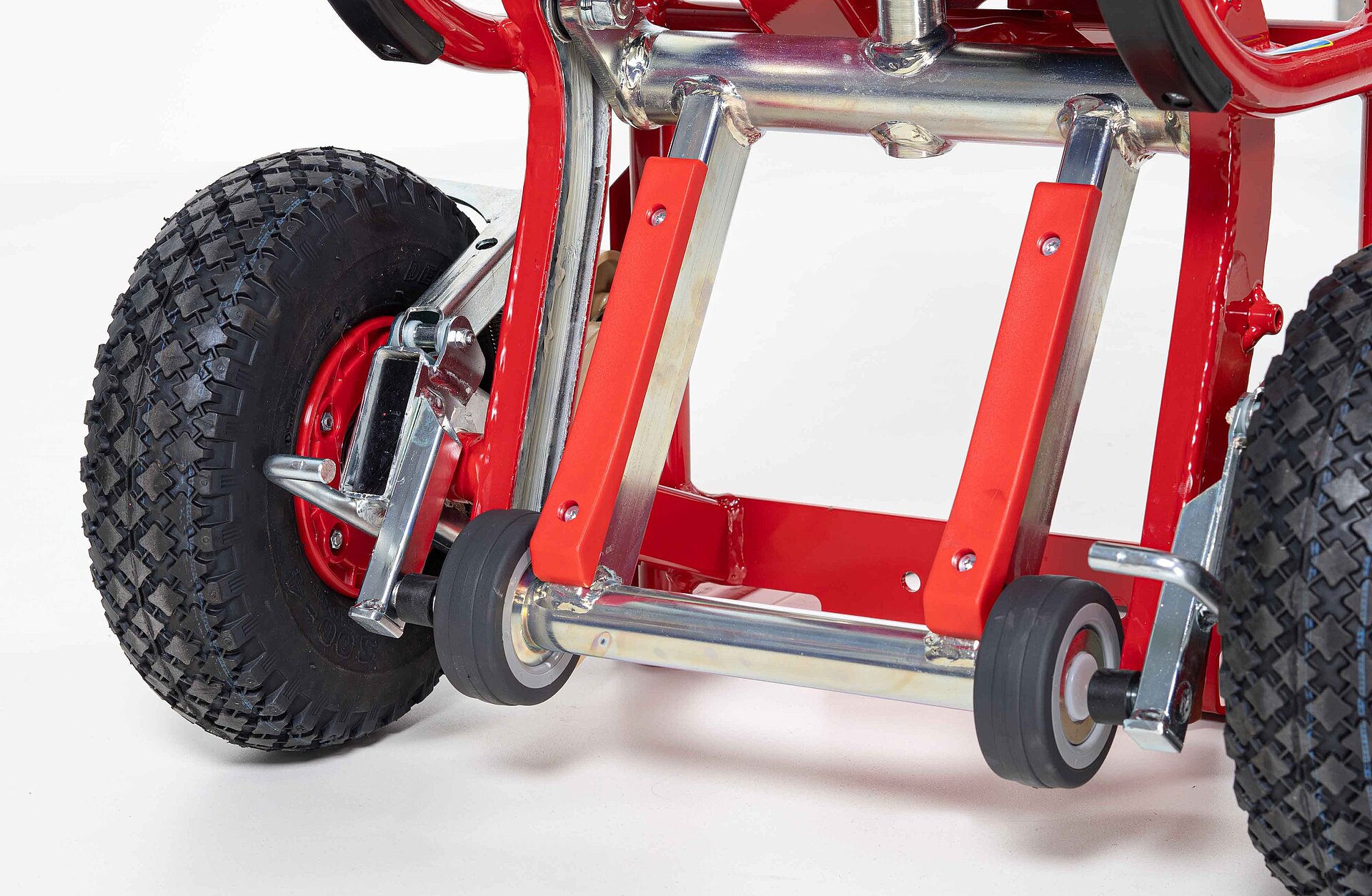

  4. step edge braking system for safe and controlled handling
Variants

LiftKar MTK 310-B

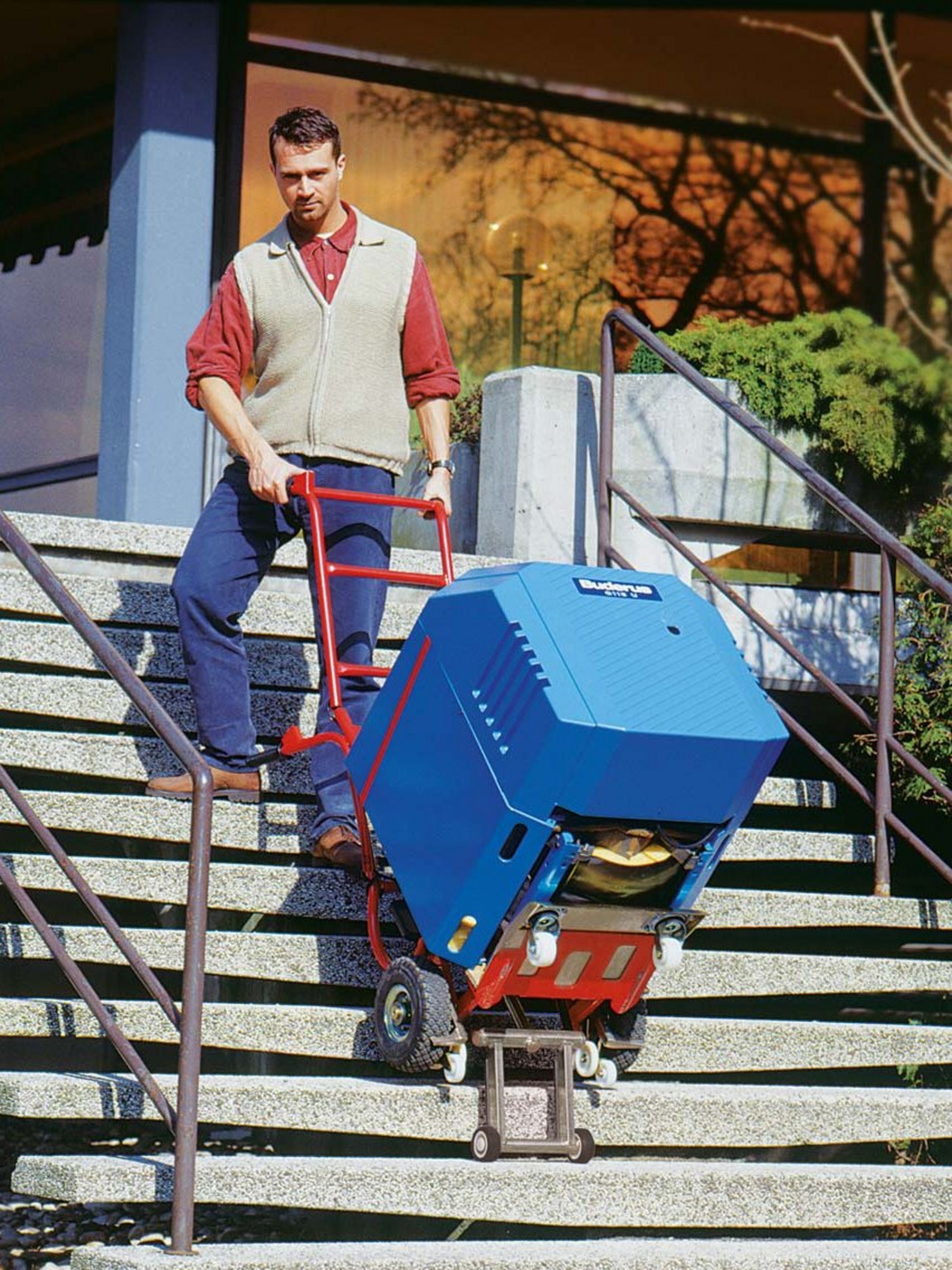

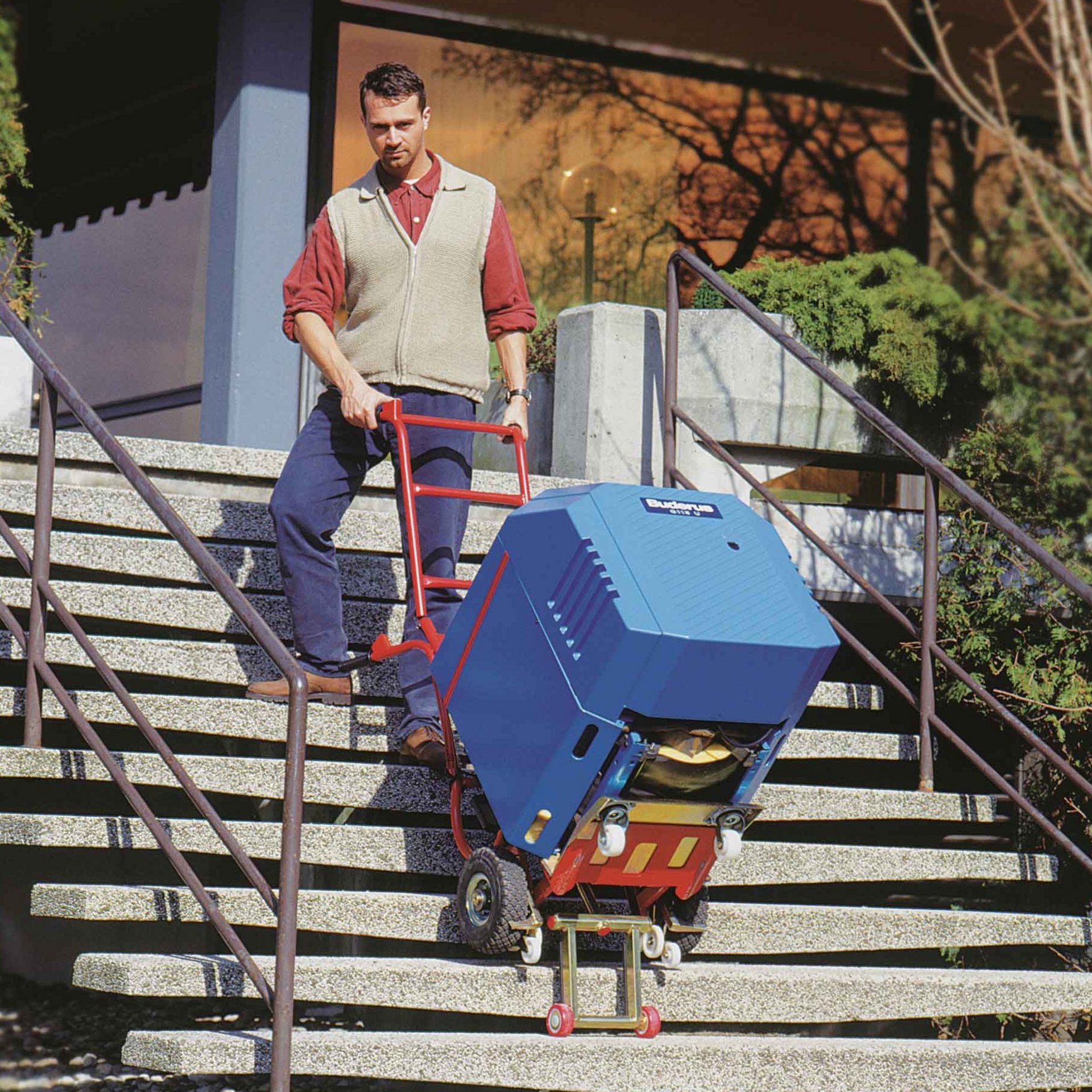

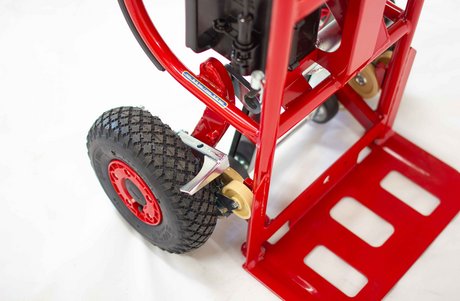

Even bulky goods such as cases, stoves, safes and vending machines with a weight of up to 310 kg are no problem anymore. An additional automatic brake is fitted as standard to the main wheels to guarantee safe and controlled handling of heavy loads.

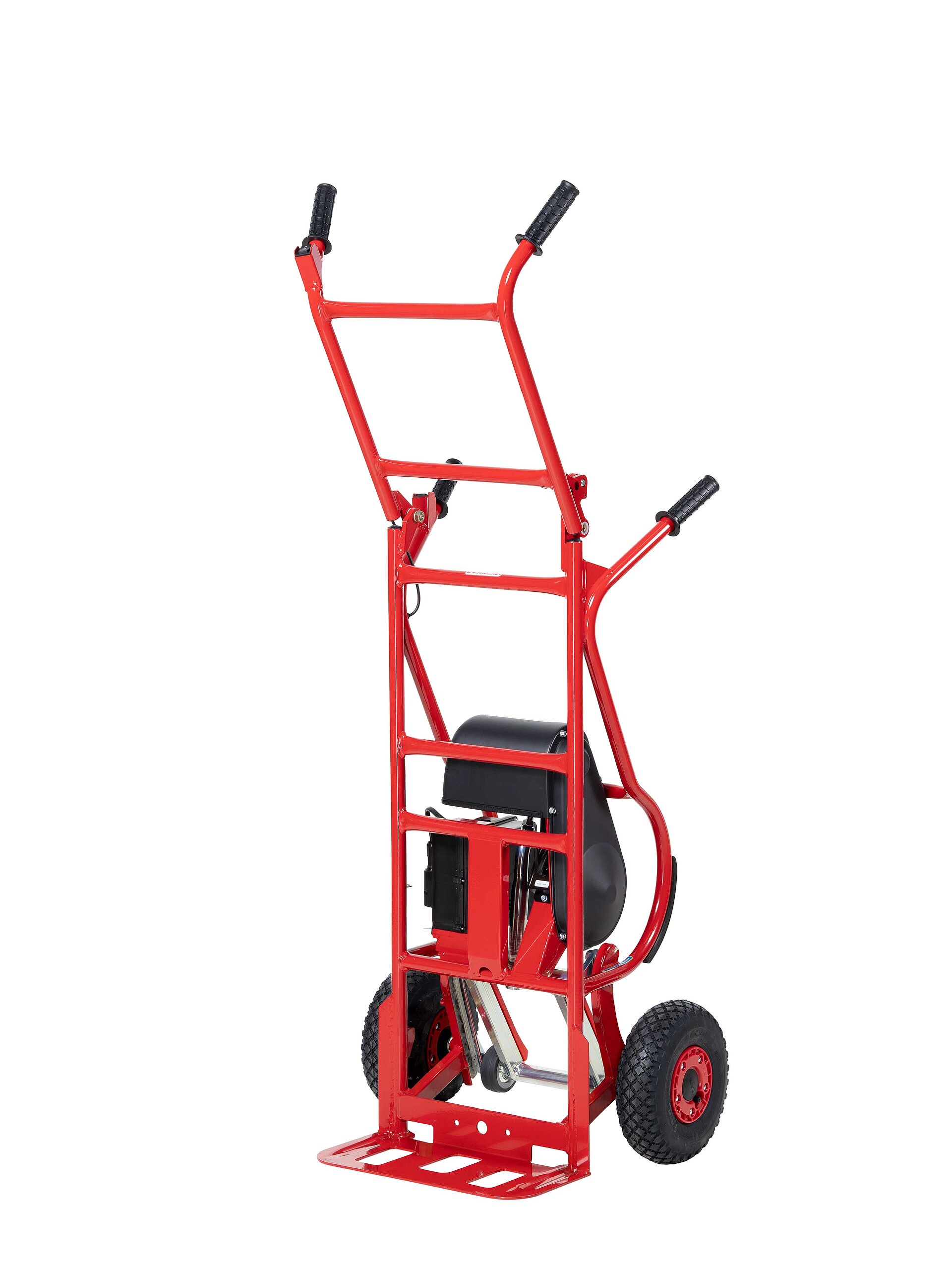

LiftKar MTK 190

The LiftKar MTK 310's faster brother for loads up to 190 kg. Supplied without brakes as standard, although these can be retrofitted if required

Applications

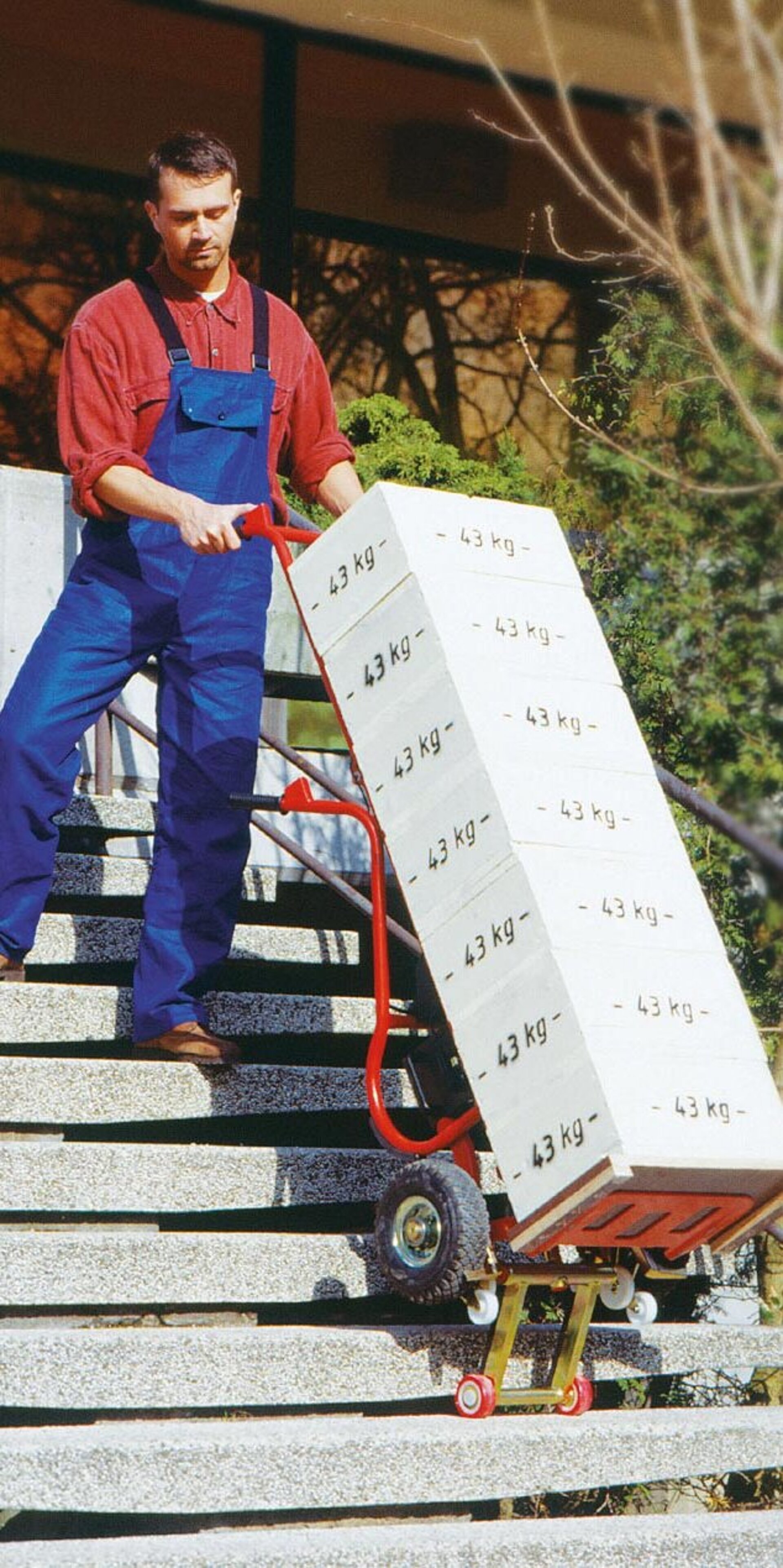

The LiftKar MTK stairclimbers
in daily situations

Extras & Accessories

Additional options
matching your needs

Art. no. 100 500

i

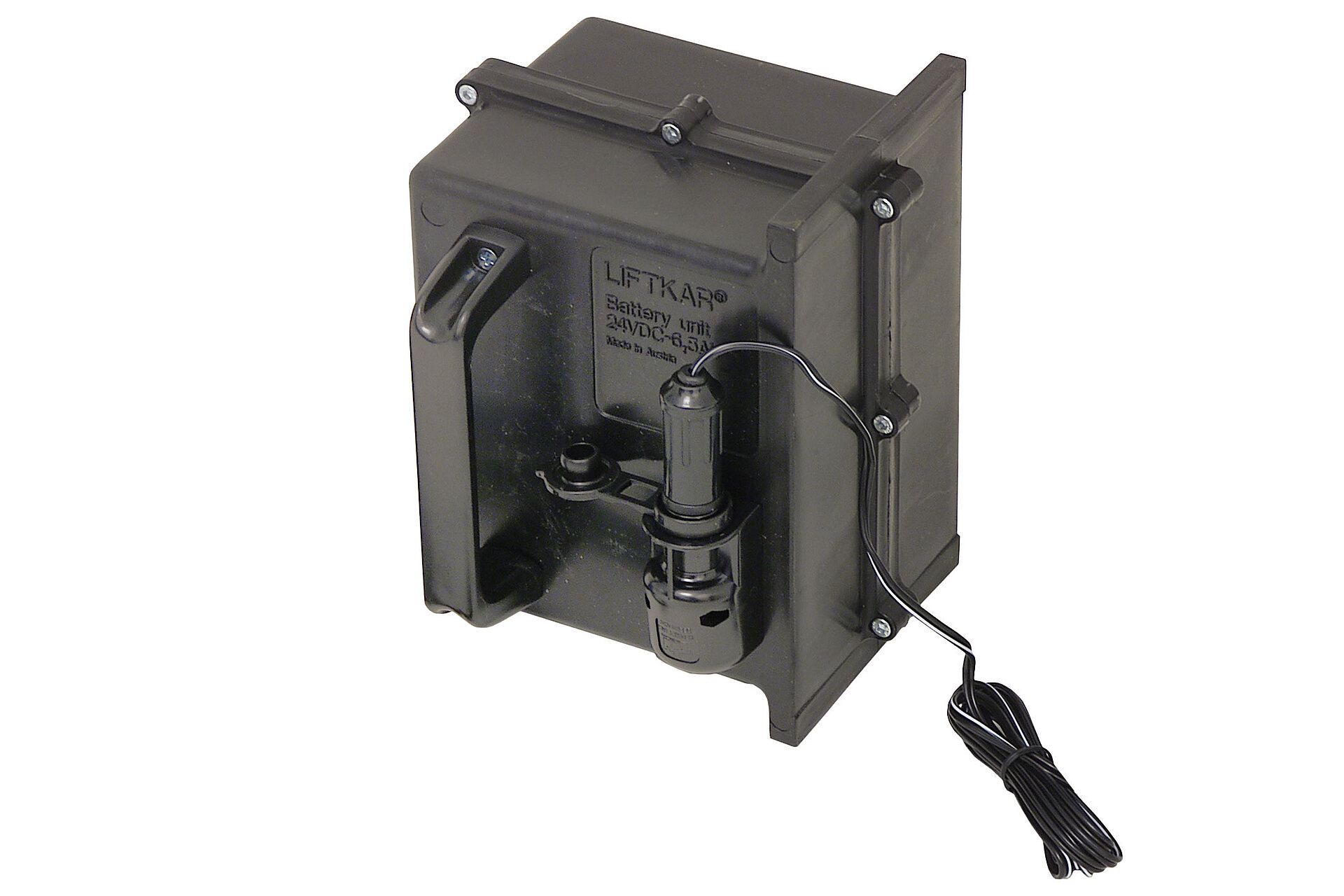

Quick change battery unit BU

Standard equipment

100-230 VAC

Art. no. 100 501

i

Battery charger MTK

Standard equipment

BC 10-30 VDC-MTK



Art. no. 100 502

i

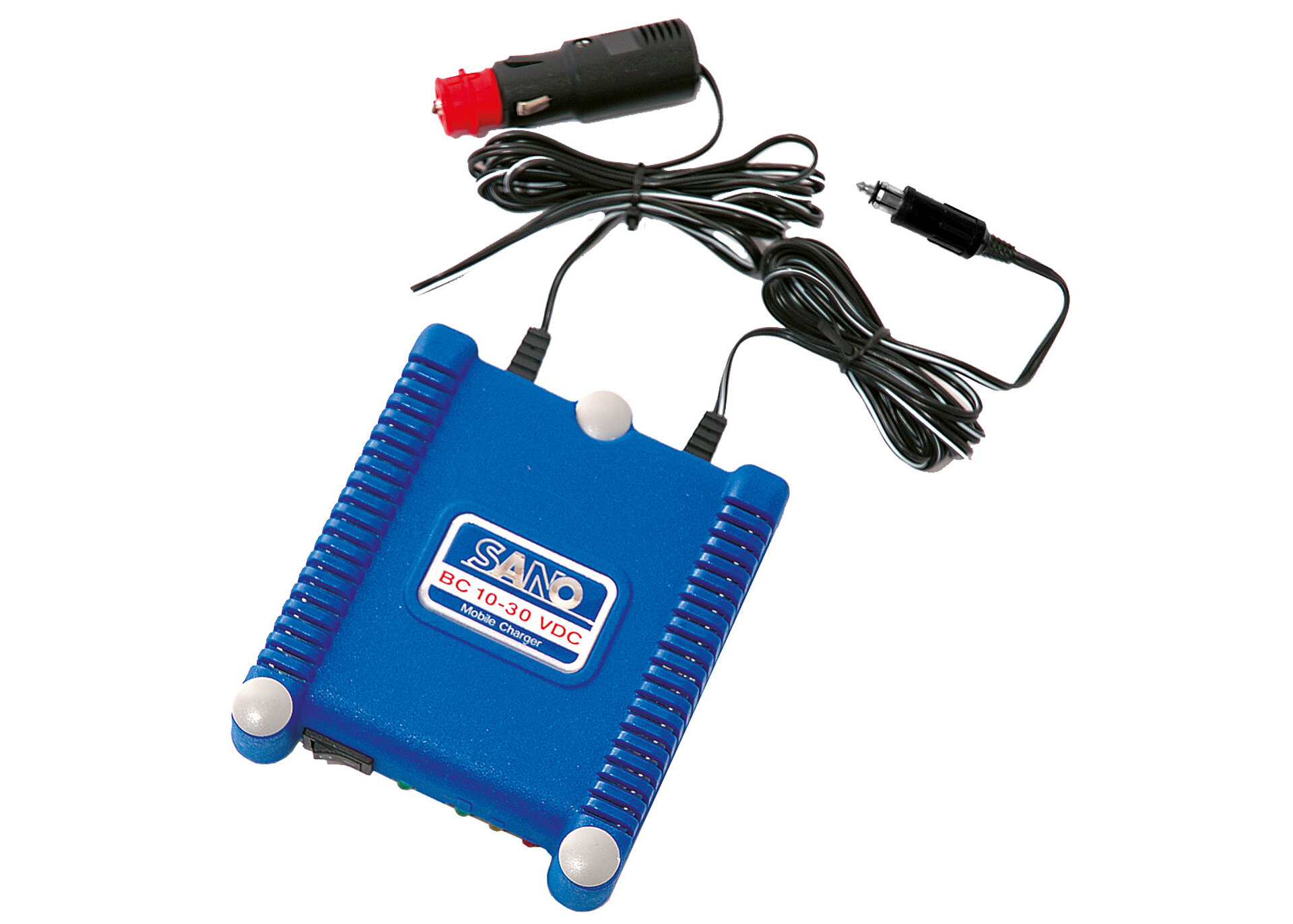

In-transit charger MTK

Optionally available

Art. no. 100 503

i

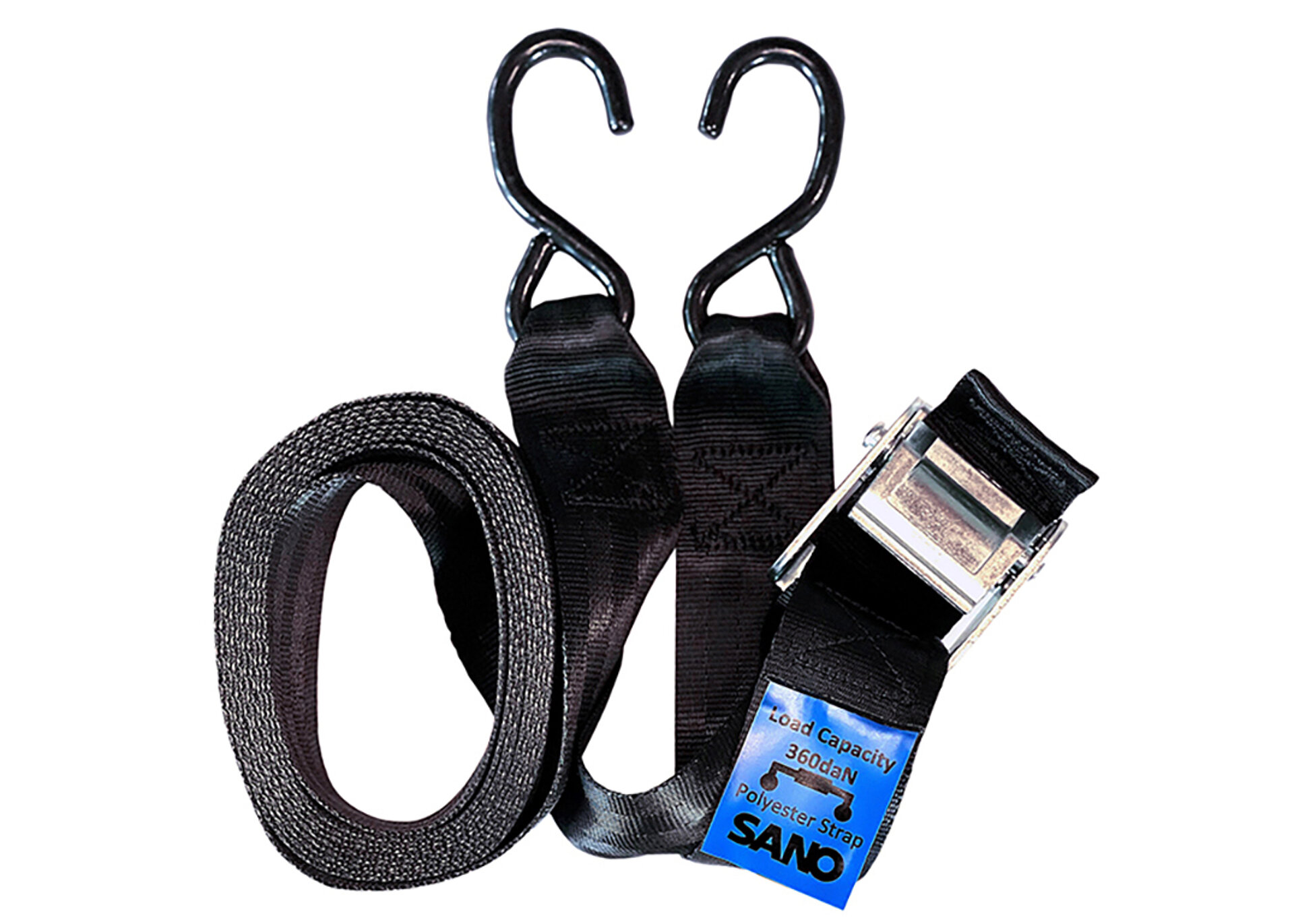

Extra strap SB - 3.5 m with ratchet and 2 hooks

Standard equipment

can be retrofitted with MTK 190 (With MTK 310 as standard)

Art. no. 100 533

i

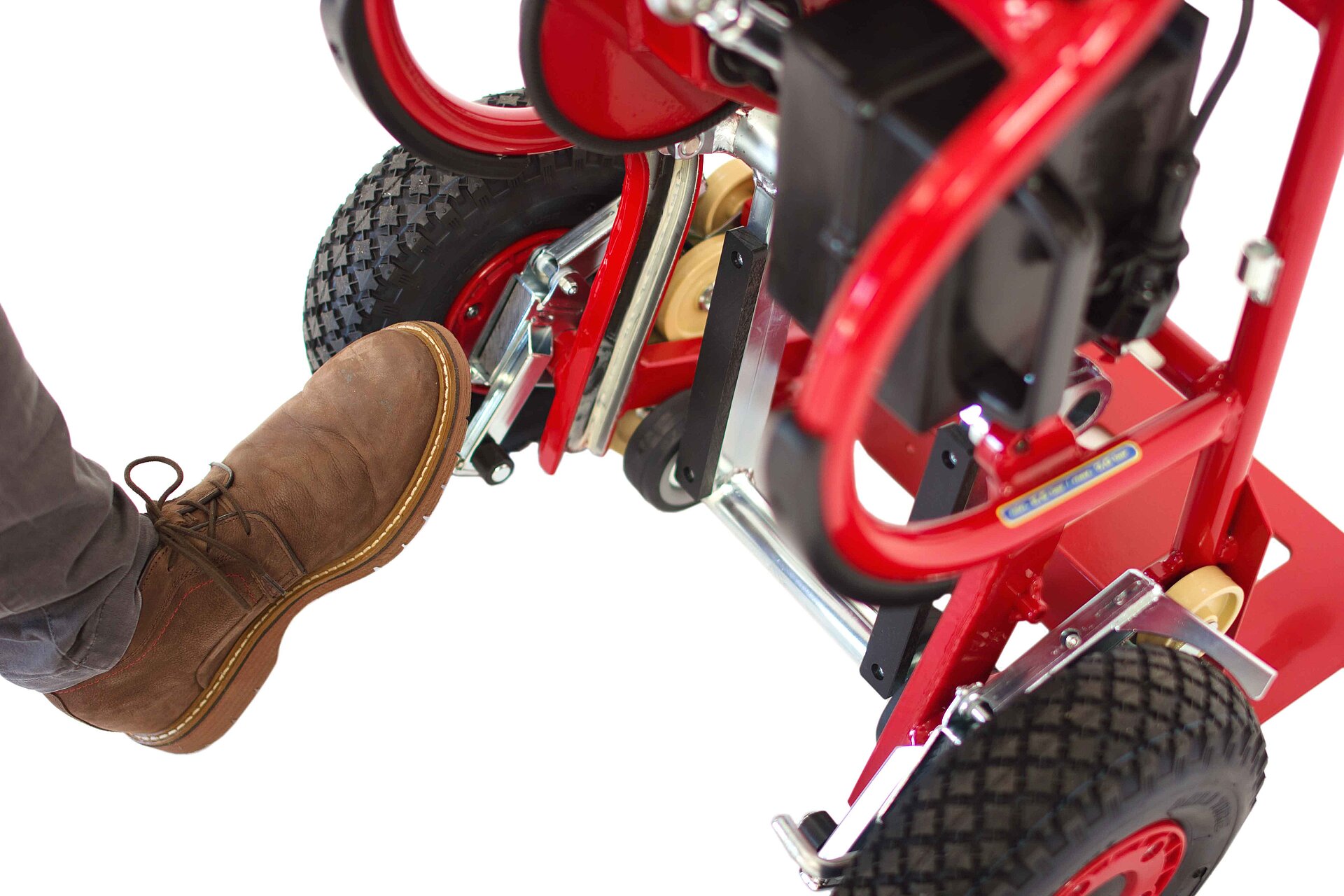

Brake kit for MTK 190

Optionally available

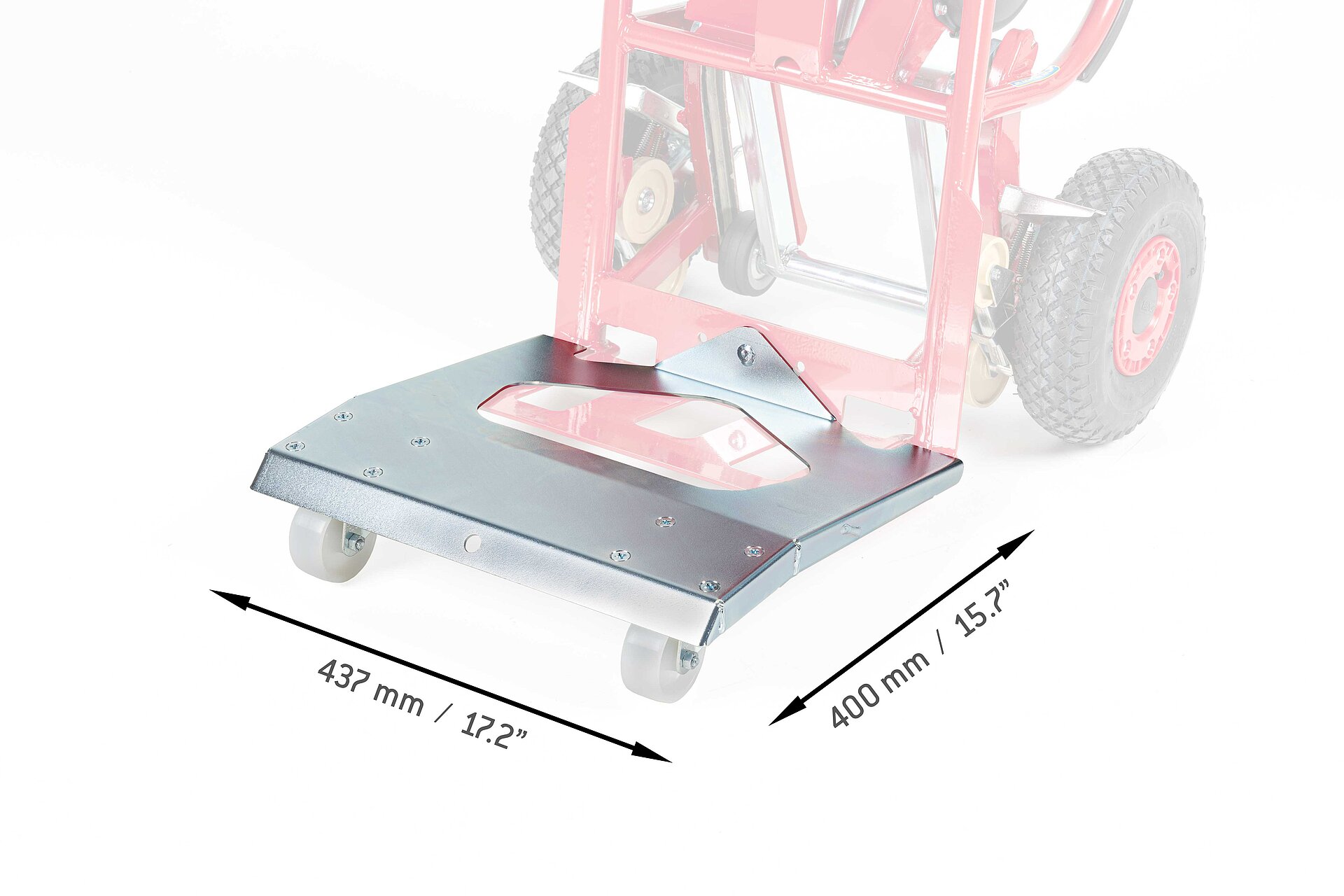

Toe plate attachment with 2 swivel castors SA-F 400 mm
Art. no. 100 516

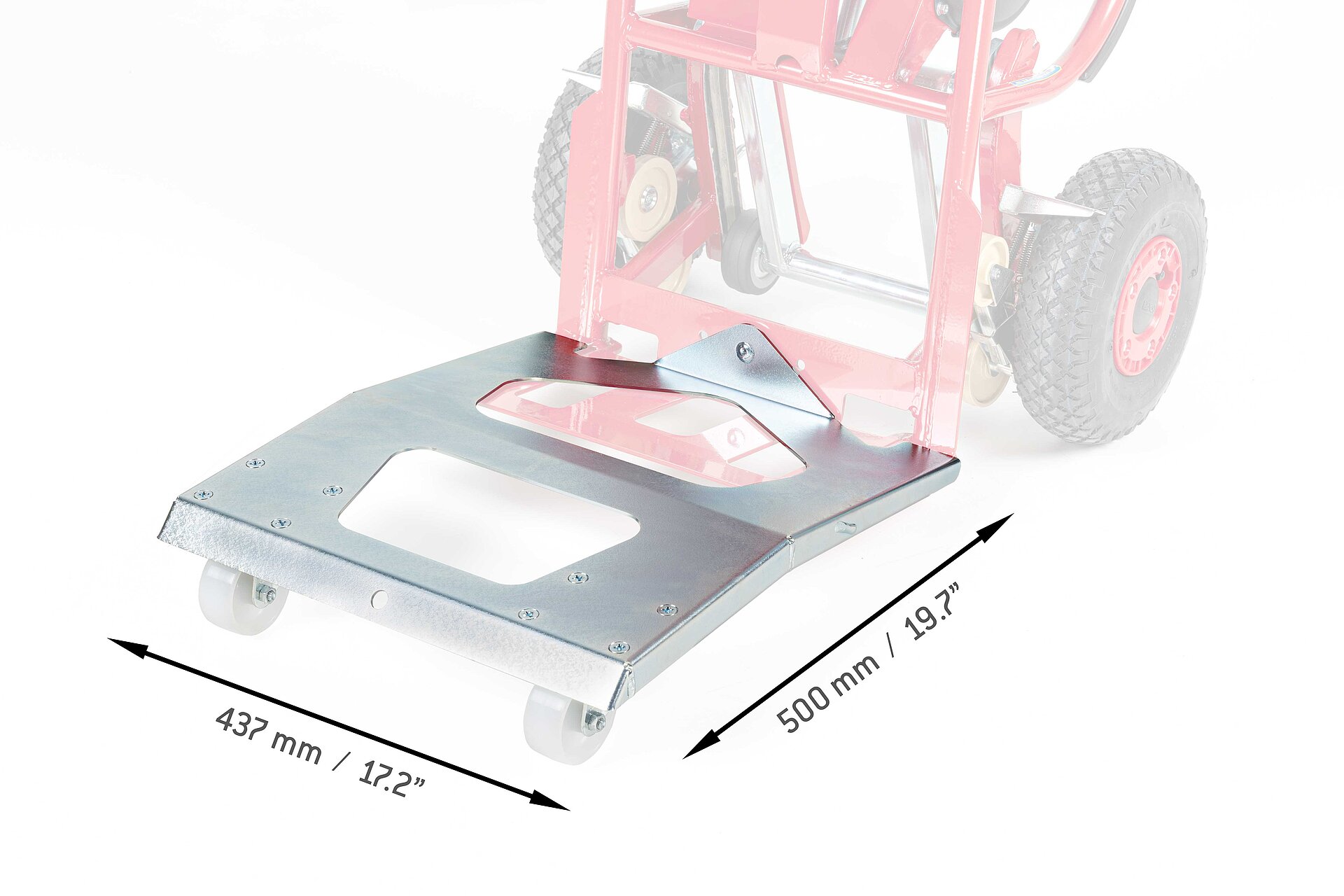

Toe plate attachment with 2 swivel castors SA-F 500 mm
Art. no. 100 513

i

Toe plate attachments MTK

Optionally available

700mm x 190mm
Art. no. 100 557

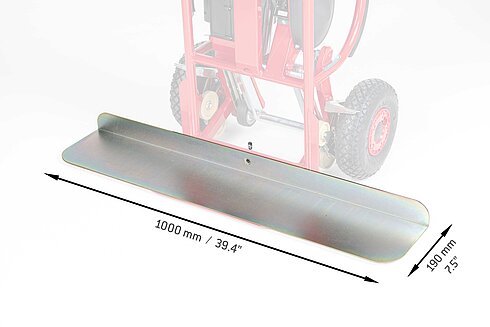

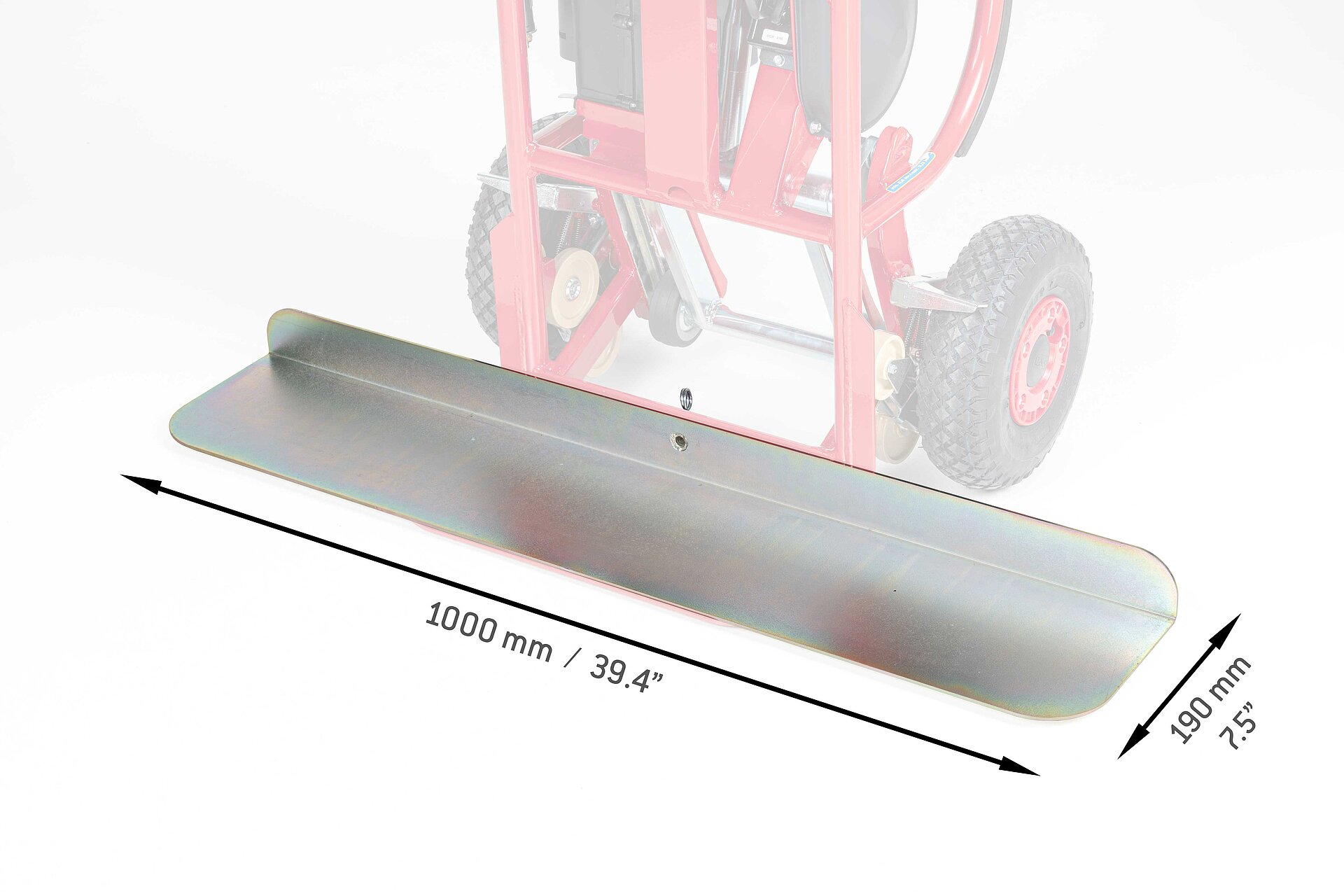

1000mm x 190mm
Art. no. 100 558

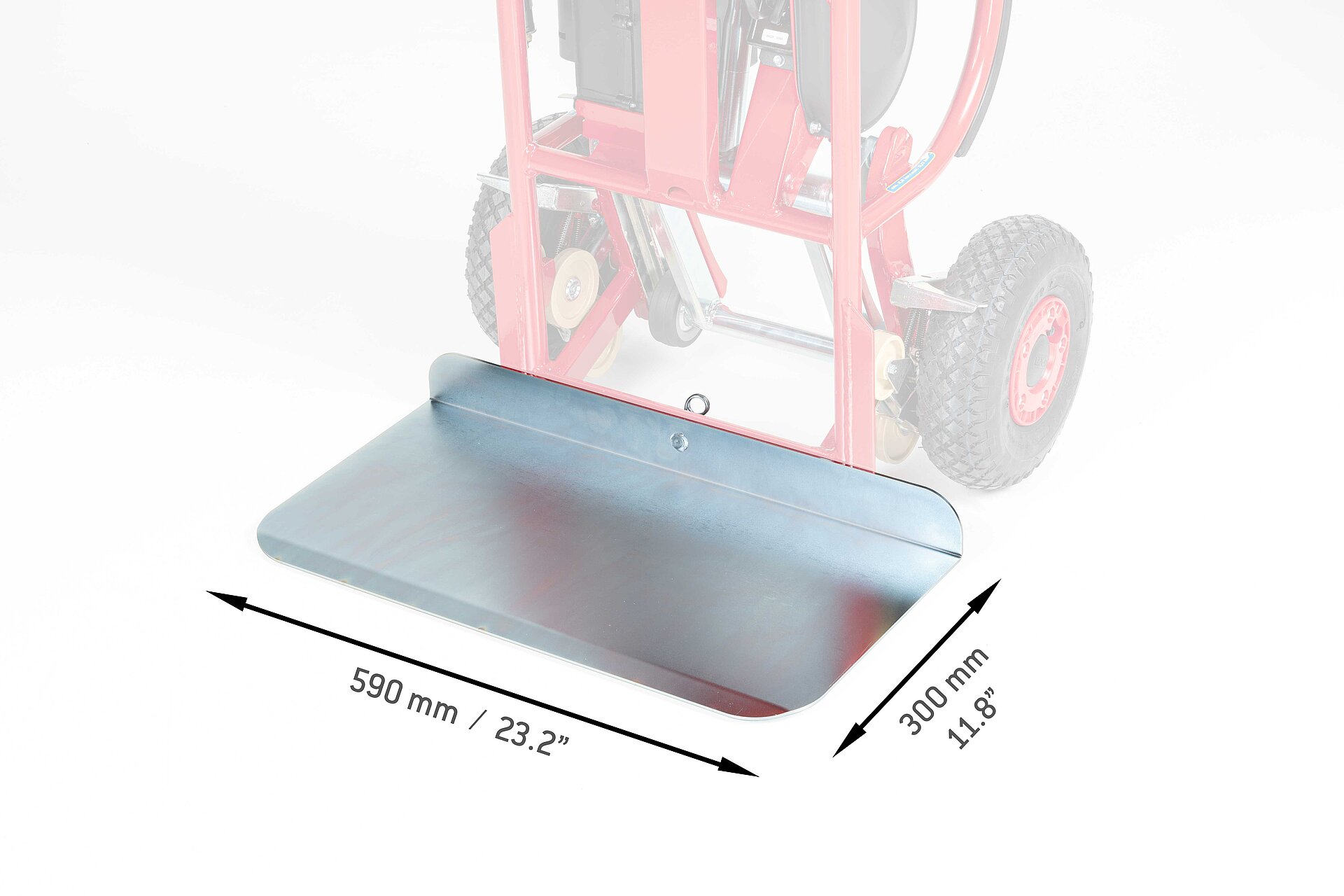

590mm x 300mm
Art. no. 100 559

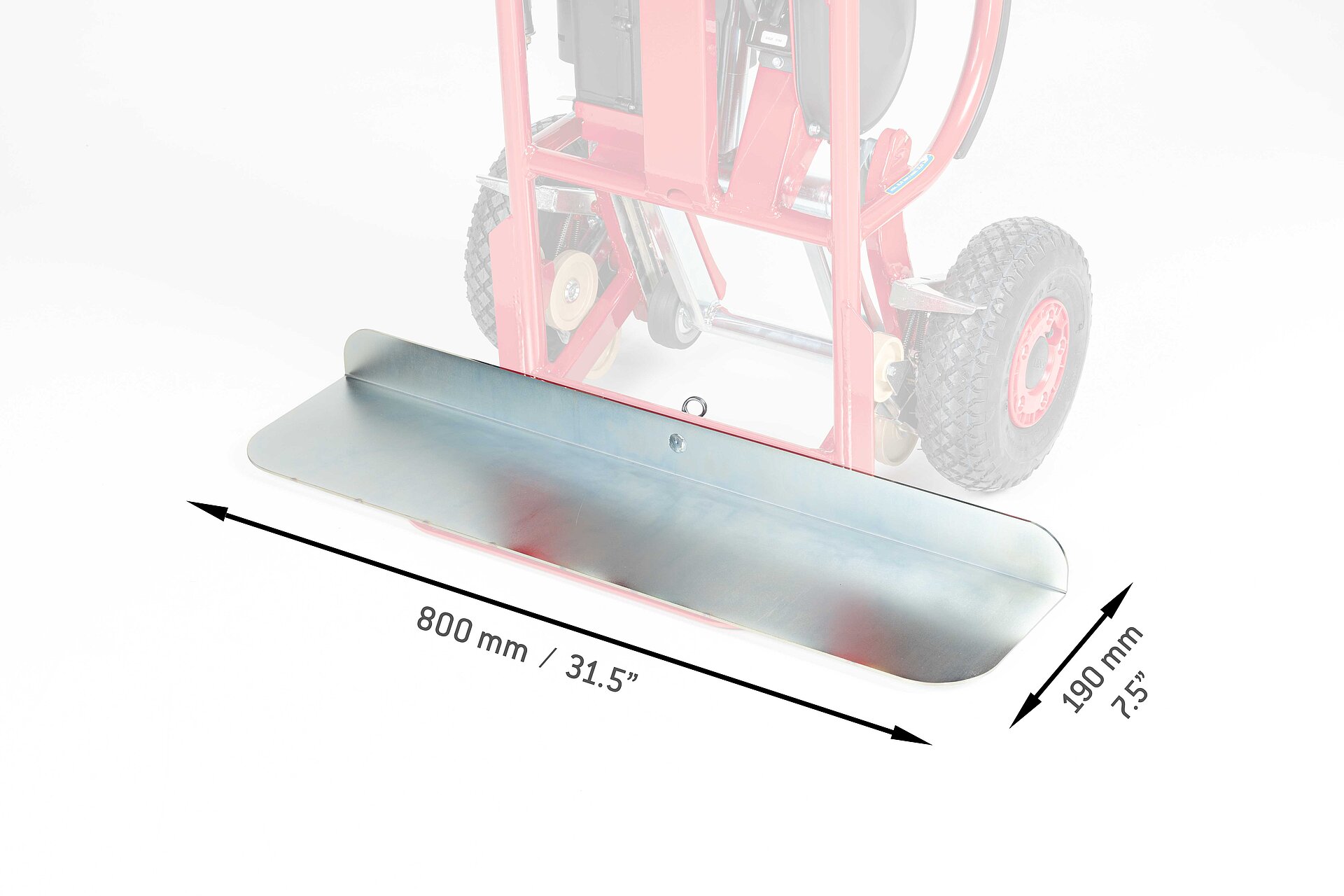

800mm x 190mm
Art. no. 100 560

i

Attachable toe plate for MTK

Optionally available

Technical data

The LiftKar MTK stairclimbers
in facts and figures

Description

Load capacity

Load capacity | Pounds

Weight base unit without battery
Weight base unit without battery | Pounds
Battery weight
Battery weight | Pounds
Autonomy (max.)
Climbing speed (steps / min.)
For use on steep and narrow spiral staircases
Foldable
Transportation over stairs
Transportation on flat surfaces
Maximum step height

Dimensions (height/width/depth)

Dimensions (height/width/depth) | Inch

LiftKar MTK 190
the classic in steel for loads up to 190 kg



190 kg





418.9 lbs



32 kg
70.5 lbs
5,5 kg
12.1 lbs
approx. 170 steps [up and down]
16-18 [steps/min.]
210 mm

1520 / 550 / 505 mm
(folded 1100 / 550 / 551 mm)

59.8″ / 21.6″ / 19.9″
(folded 43.3″ / 21.6″ / 21.7″)

LiftKar MTK 310-B
the classic in steel for loads up to 310 kg



310 kg





683.4 lbs



35 kg
77.1 lbs
5,5 kg
12.1 lbs
approx. 100 steps [up and down]
8-9 [steps/min.]
210 mm

1630 / 580 / 505 mm
(folded 1100 / 580 / 551 mm)

64.2″ / 22.8″ / 19.9″
(folded 43.3″ / 22.8″ / 21.7″)

Description
Ideal for

Load capacity

Load capacity | Pounds

Weight base unit without battery
Weight base unit without battery | Pounds
Battery weight
Battery weight | Pounds
Autonomy (max.)
Climbing speed (steps / min.)
For use on steep and narrow spiral staircases
Foldable
Transportation over stairs
Transportation on flat surfaces
Maximum step height

Dimensions (height/width/depth)

Dimensions (height/width/depth) | Inch

LiftKar MTK 310-B
the classic in steel for loads up to 310 kg
stoves, safes, boilers, engines



310 kg





683.4 lbs



35 kg
77.1 lbs
5,5 kg
12.1 lbs
approx. 100 steps [up and down]
8-9 [steps/min.]
210 mm

1630 / 580 / 505 mm
(folded 1100 / 580 / 551 mm)

64.2″ / 22.8″ / 19.9″
(folded 43.3″ / 22.8″ / 21.7″)

LiftKar MTK 190
the classic in steel for loads up to 190 kg
stoves, safes, boilers, engines



190 kg





418.9 lbs



32 kg
70.5 lbs
5,5 kg
12.1 lbs
approx. 170 steps [up and down]
16-18 [steps/min.]
210 mm

1520 / 550 / 505 mm
(folded 1100 / 550 / 551 mm)

59.8″ / 21.6″ / 19.9″
(folded 43.3″ / 21.6″ / 21.7″)
