Description

The new LiftKar SAL Pro-series:
extremely fast and light powered stairclimbers
for loads up to 170 kg

When you need to get the job done; deliveries such as fridges, dryers, copier paper, cupboards, or any similar load, can be managed professionally with the new LiftKar SAL Pro series. SANO products are designed for you, to work effectively, ergonomically and safe ensuring that your back is protected against any unnecessary strain.

Light and quick. Universally applicable.
The LiftKar SAL Pro is as easy to use as a hand truck. With the battery-powered climbing mechanism, the stairs can be climbed quickly and safely. The LiftKar SAL Pro pulls itself up the stairs efficiently and precisely to the next step. Down steps, the motor acts like an eddy-current brake. Enabling the load to descend at a safe smooth speed; without a press of a button! Your back is protected, and the risk of accidents is minimized.

Large selection
The LiftKar SAL Pro is available in four versions. This variety of models makes it ideal for use in industry, trade and commerce, but also in schools, hospitals, canteen kitchens, office buildings and much more. No matter what transport needs you have, the LiftKar SAL Pro is available in the right version.

Product registration Downloads
extremely lightweight and fast

very wide range of applications

extended battery life
Features
01Up button

LiftKar SAL Pro

Up button

The LiftKar SAL Pro stairclimber up button

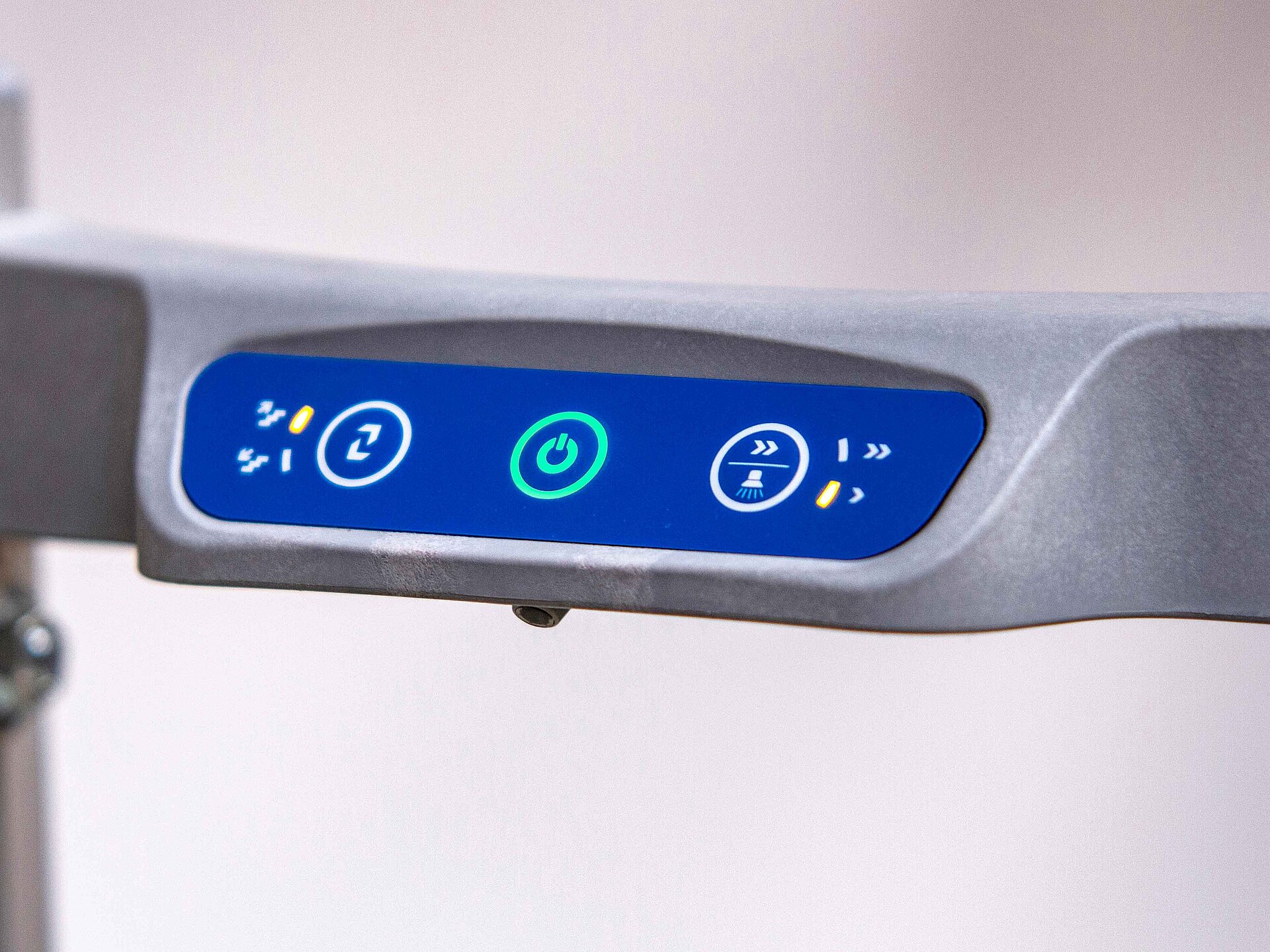

02control unit

LiftKar SAL Pro

control unit

Clear, robust touchpanel - intuitive for user-friendly and easy operation.

03step light

LiftKar SAL Pro

step light

For optimal lighting when visibility is poor or in dark stairwells. Easily switchable.

04lithium battery

LiftKar SAL Pro

lithium battery

High-performance battery with state-of-charge indicator for up to 2000 steps, particularly safe due to the double-walled plastic housing.

Weight 1,6 kg

05Lower handle
06Main wheels
07Upper handle
08Drive unit with safety flap

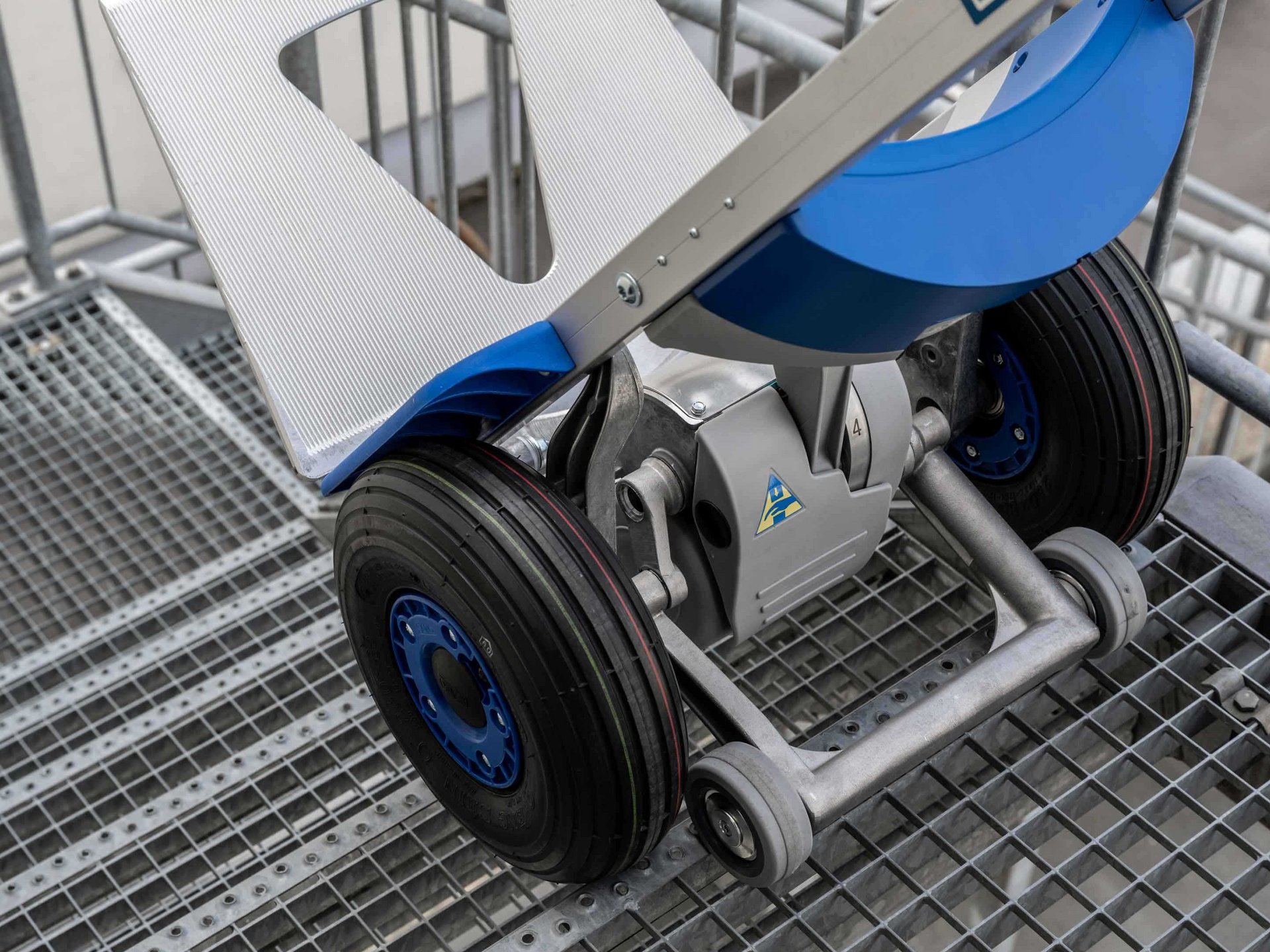

09Pivot arm with braked support wheels

LiftKar SAL Pro

Pivot arm with braked support wheels

LiftKar SAL Pro stairclimber pivot arm with forward-braked support wheels.

Wheel change

Wheel changes in just 10 seconds – Easy for everyone!

Whether young or old, man or woman – our electric stair climber enables a quick **tire change in just 10 seconds**. This easy handling not only saves time, but also makes work easier for all users.

Details
Advantages

15 unbeatable advantages
to convince you

  1. User-friendly and easy to operate
  2. Handy like a sack truck
  3. Extremely light, the basic device without battery weighs as little as 16 kg (depending on the model)
  4. Powerful lithium battery: autonomy up to 2000 steps up and down
  5. Long battery life, with charge level indicator, 1,6 kg net weight
  6. Extremely fast - up to 48 steps/min (depending on the model)
  7. 2 climbing speeds
  8. Intelligent lifting unit starts automatically during downstair operation
  1. Step light for poor lighting conditions
  2. Choose from a wide range of available toe plates and mounting options ideally tailored to your needs
  3. Toe plate made of high-strength aluminum
  4. Friction clutch and electronic overload protection
  5. Negotiates all types of stairs, even spiral staircases and narrow landings
  6. Large pneumatic tyres, optional puncture-proof tyres
  7. Foldable – easy to stow, fits in any car trunk (depending on the model)
Models

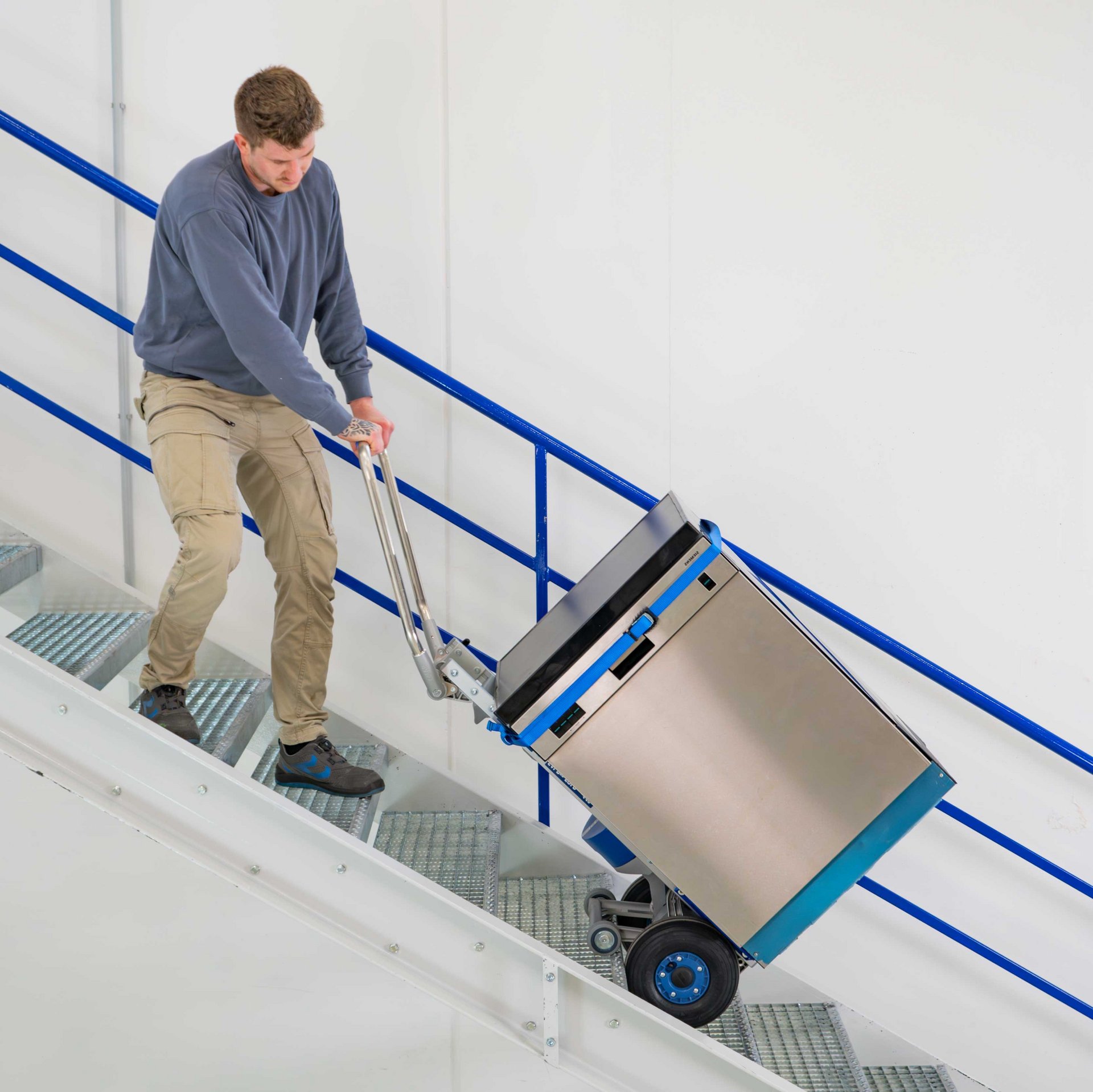

the compact, easy to transport

A true all-rounder for transporting a wide variety of loads over stairs.

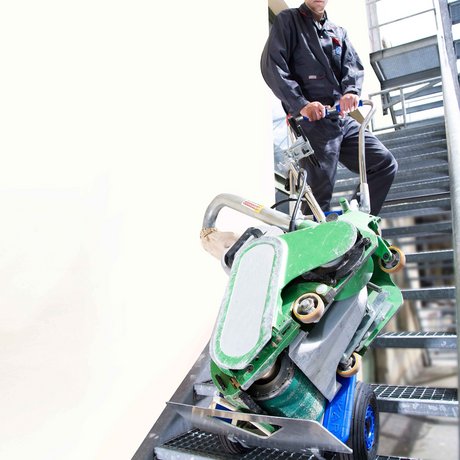

Whether compact floor sanders, washing machines, or oxygen bottles - with the foldable model LiftKar SAL Pro FOLD the load is kept in balance. This way, even difficult loads can be handled safely, in an upright position and without jeopardising your back.

The LiftKar SAL Pro FOLD is a true all-rounder for transporting a wide variety of loads over stairs. The patented folding mechanism enables the handle bar to be optimally adjusted to the center of gravity of transported goods. The LiftKar SAL Pro FOLD is also ideal for transporting compact loads in a perfectly balanced manner. When folded, it is easily to store even in smaller cars. Despite its light weight of 17,3 kg, the LiftKar SAL Pro FOLD can also handle heavy loads.

The LiftKar SAL Pro FOLD is available in three weight categories: 110 kg, 140 kg and 170 kg.

the all-rounder compact & versatile

Transport tall loads and keep them perfectly balanced.

Whether furniture, refrigerators, oxygen bottles or bulky stacks of chairs - with the foldable model LiftKar SAL Pro FOLD-L, the load stays perfectly balanced. This means that even difficult loads can be handled safely, in an upright position and without straining your back.

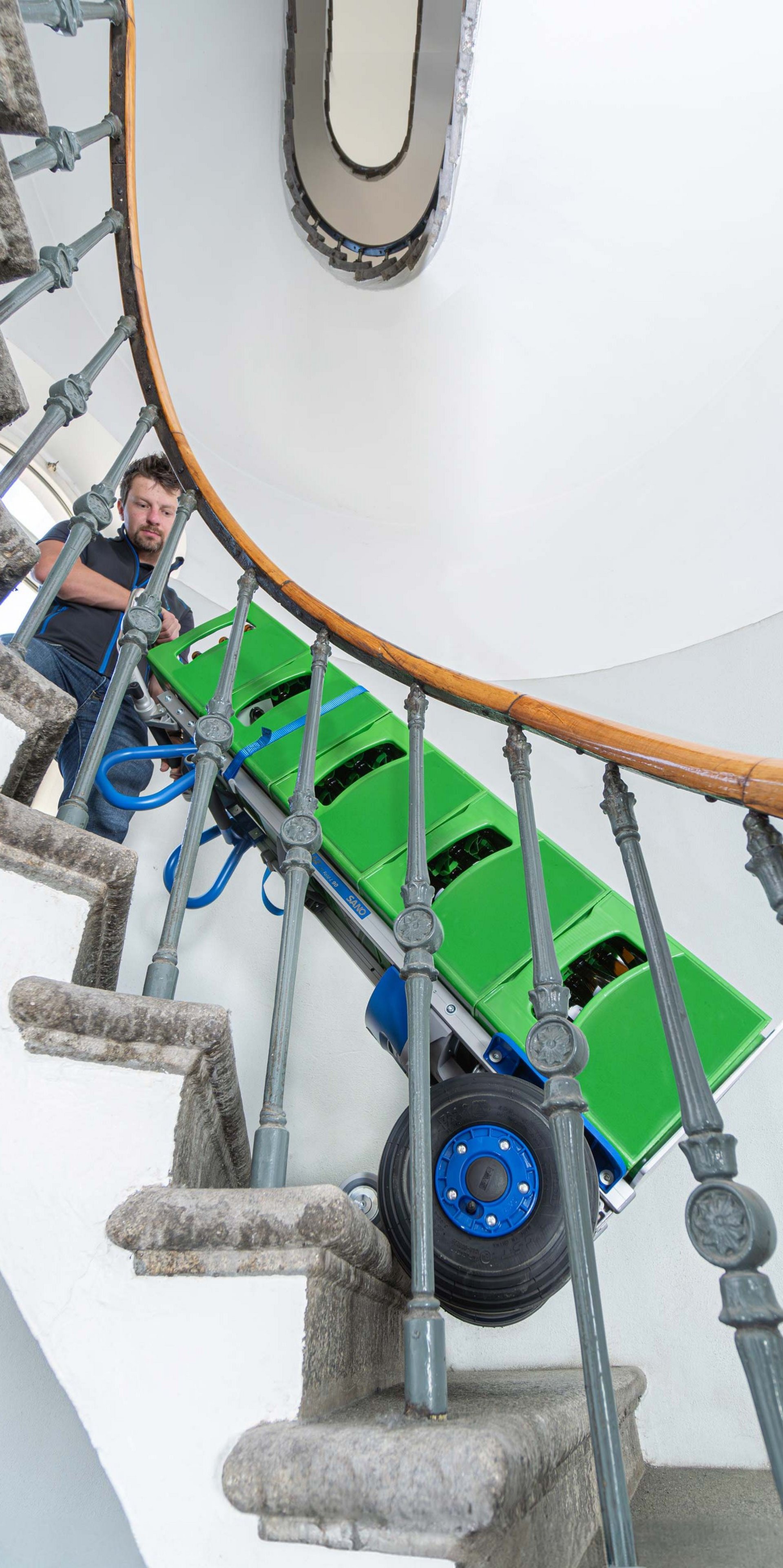

The LiftKar SAL Pro FOLD-L is the perfect solution for a wide variety of loads over stairs. The patented folding mechanism enables the handle bar to be optimally adjusted to the centre of gravity of the load. Especially for slightly higher loads, the LiftKar SAL Pro FOLD-L is the perfect solution. When folded, it is easy to stow in the car. Despite its light weight of 19,5 kg, the LiftKar SAL Pro FOLD-L can also handle heavy loads.

The LiftKar SAL Pro FOLD-L is available in three weight categories: 110 kg, 140 kg and 170 kg.

Maximum Mobility. Minimum Effort.

Transport bulky loads and keep them perfectly balanced.

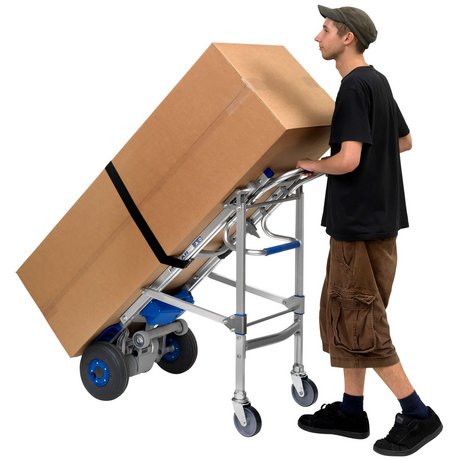

Discover the LiftKar SAL Pro Fold-L Dolly Kick-Out – our innovative solution for convenient and efficient transportation over longer distances. Developed for heavy, bulky loads such as tall cabinets, linoleum rolls and similar goods, this product impresses with outstanding stability and ergonomic operation. Thanks to its robust design and flexible application possibilities, the Dolly Kick-Out effortlessly masters challenging transport tasks, spares your back and optimizes your logistical processes. Experience professional transport solutions that revolutionize your everyday life.

The LiftKar SAL Pro FOLD-L Dolly Kick-Out is available in three weight categories: 110 kg, 140 kg and 170 kg.

the specialist for stacking goods

Great for water bottles, beer kegs, stacks of tyres and more.

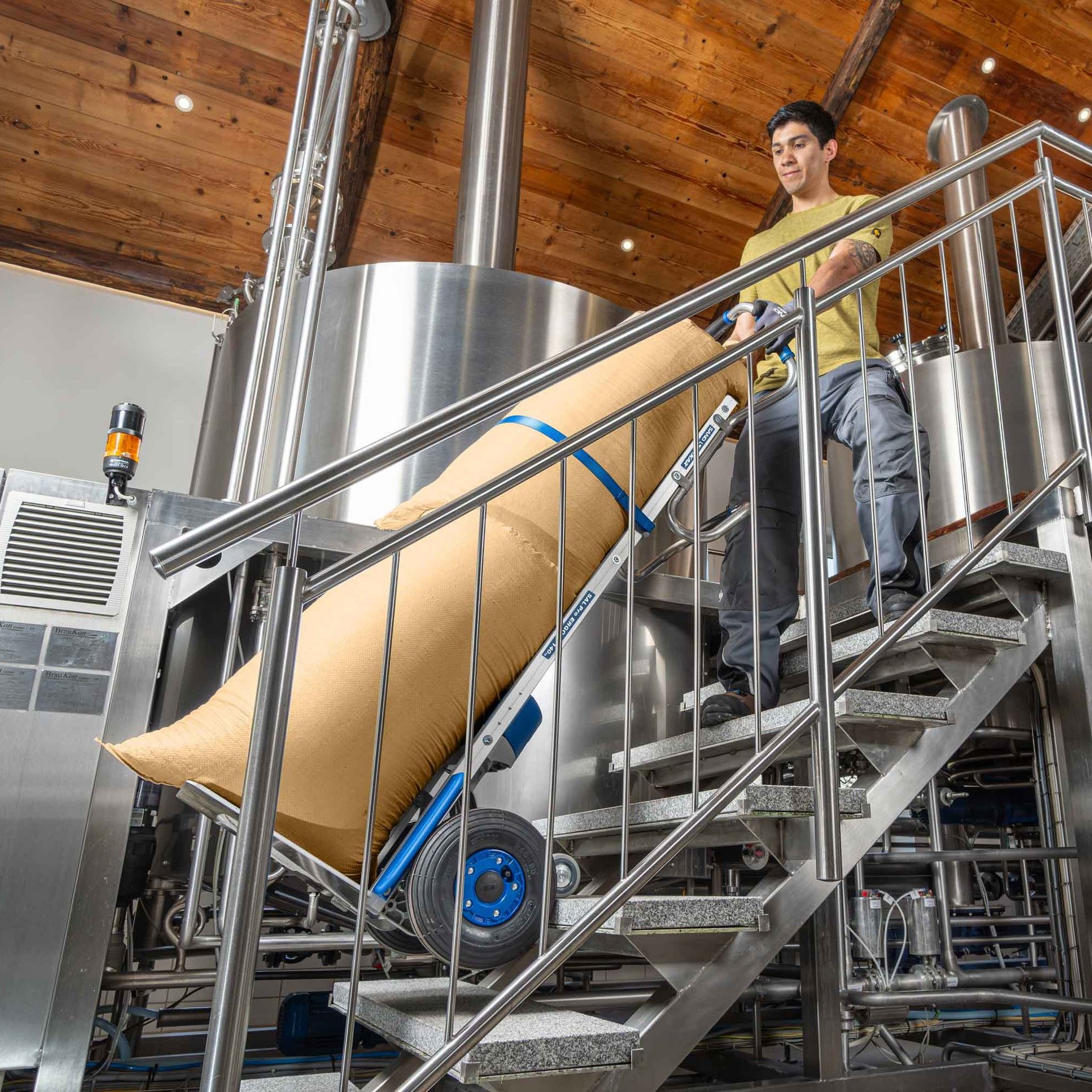

Thanks to the exceptionally ergonomic handle, the LiftKar SAL Pro ERGO model allows stability on the stairs and thus maximum control over the transported goods. Great for water bottles, beer kegs, stacks of tyres and many more.

The entire LiftKar SAL Pro ERGO range is characterised by its light weight of 17,4 kg including the lithium battery. This makes transport even easier and quicker. The LiftKar SAL Pro ERGO is also easy to manoeuvre outdoors, especially on uneven construction site surfaces. Different types of tyres adapt the device to different operating conditions. Two handle variants are available (loop or pistol grip).

The LiftKar SAL Pro ERGO is available in three weight categories: 110 kg, 140 kg and 170 kg.

the expert for taller loads

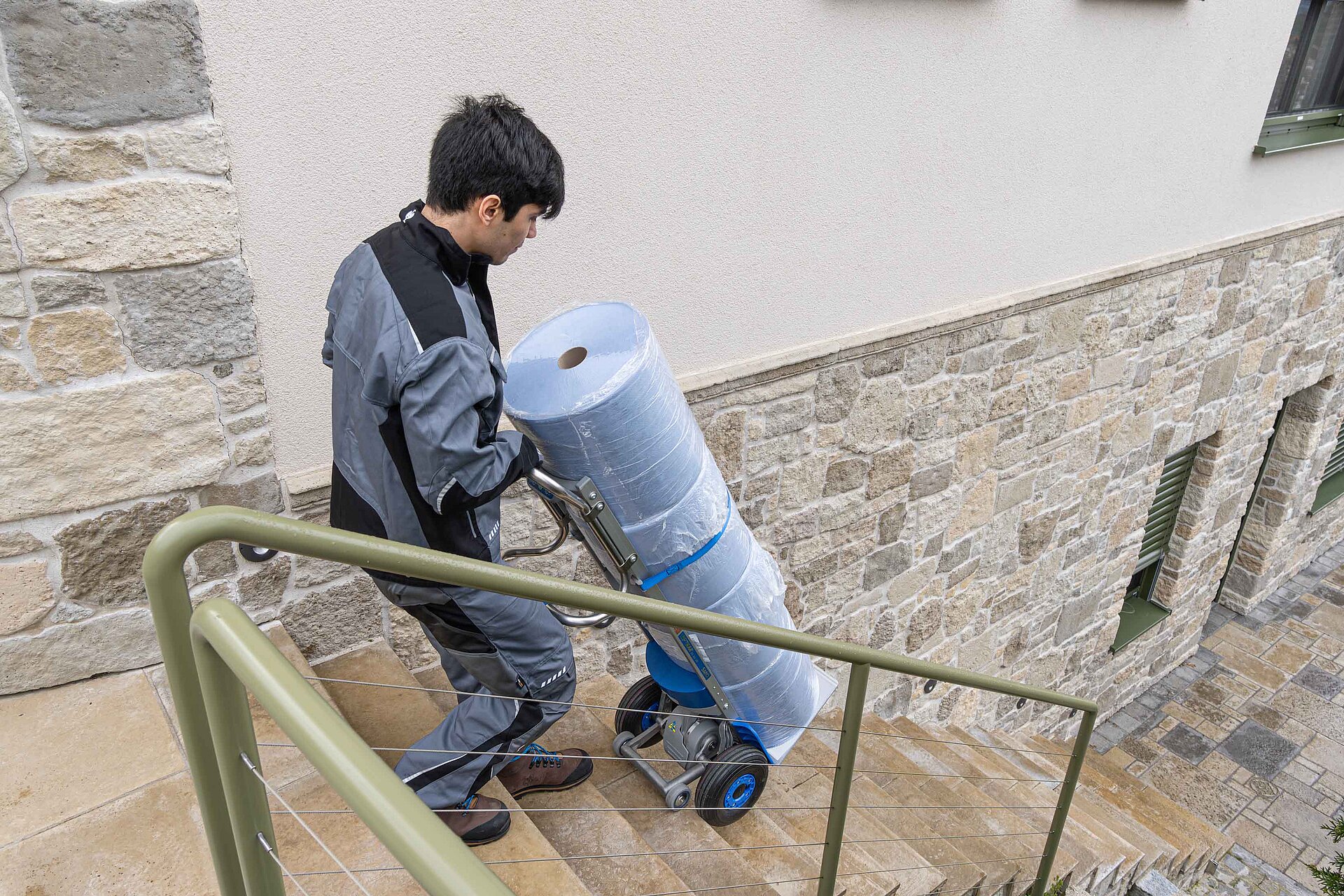

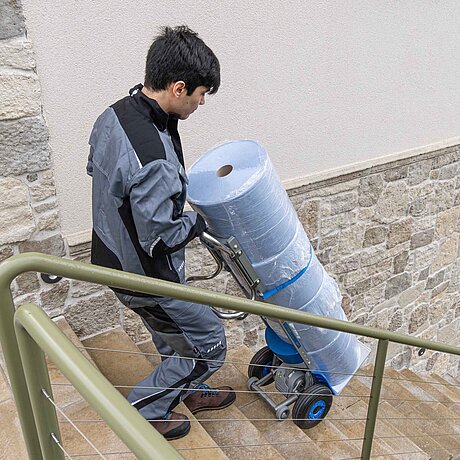

Ideal for rolls and stacked goods - the lightweight all-rounder with speed.

The LiftKar SAL Pro UNI model corresponds to the classic hand truck and is particularly suitable for transporting tall loads, beverage crates, copier paper or files.

The entire LiftKar SAL Pro UNI range is characterised by its low weight of 17 kg. This makes transport even easier and quicker. Also outdoors the LiftKar SAL Pro UNI is easy to manoeuvre, especially on uneven construction site surfaces. Different types of tyres adapt the device to different operating conditions. Two handle variants are available. (loop or pistol grip).

The LiftKar SAL Pro UNI is available in two weight categories: 110 kg and 140 kg.

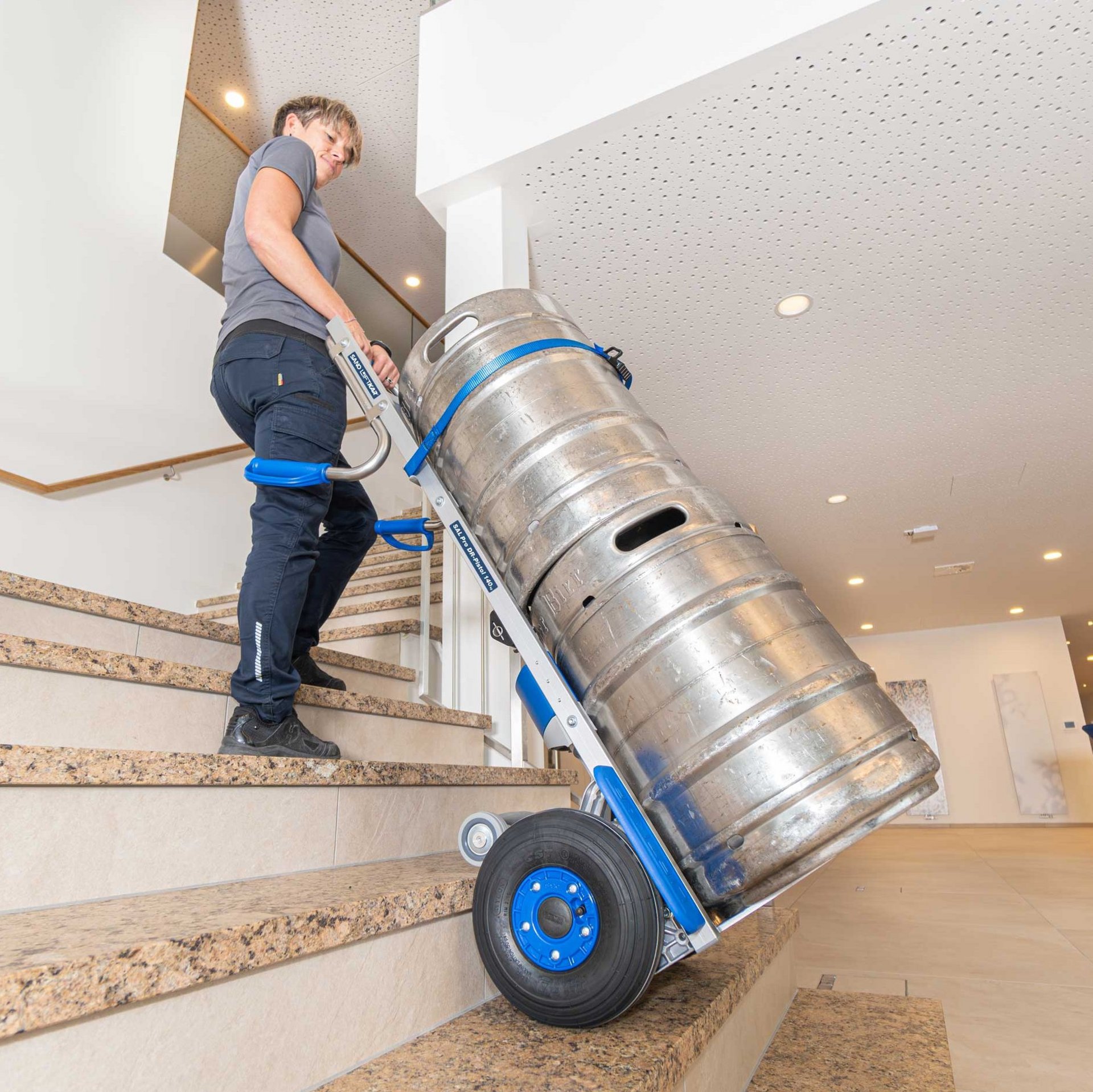

the classic handtruck with stair climbing system

The classic handtruck with stair climbing system.

Our portfolio is complemented by the LiftKar SAL Pro DR pistol – an agile, purpose-built solution designed for beverage delivery companies that performs well even in confined spaces. Discover how our innovative transport solutions can optimize your logistics processes and increase your competitiveness.

The LiftKar SAL Pro DR-Pistol is available in two weight categories: 110 kg and 140 kg.

Applications

The LiftKar SAL Pro stairclimbers
in daily situations

Extras & Accessories

Additional options
matching your needs

(7.2 Ah) with charge indicator

Art. no. 035 100

i

Quick-change battery LI-ION

Standard equipment

LI-ION BC 100-240 VAC mains charger (EURO plug) Art. no. 035600

LI-ION BC 100-240 VAC mains charger (UK plug) Art. no. 035601

LI-ION BC 100-240 VAC mains charger (USA plug) Art. no. 035602

LI-ION BC 100-240 VAC mains charger (AUS plug) Art. no. 035603

i

Battery charger LI-ION

Standard equipment

for belt, charger, and much more

Art. no. 935 140

i

Bag incl. holder

Optionally available

Fixation belt 1,40 m / 25 mm
Art. no. 930 006

(does not fit on ModulKar 2 in 1 HD model)

i

Fixation belt 1,40 m / 25 mm

Optionally available

Fixation belt 2,70 m / 25 mm
Art. no. 930 007

(does not fit on ModulKar 2 in 1 HD model)

i

Fixation belt 2,70 m / 25 mm

Optionally available

fixation belt 3,5 m / 50 mm

With special hooks for optimum load fixation and robust metal lashing buckle.


Art. no. 930 123

i

Fixation belt 3,5 m / 50 mm

Optionally available

Protection plate for LiftKar SAL UNI, ERGO and FOLD-L models (Li-Ion or Lead-Acid battery)
Art. no. 930 181

Protection plate for LiftKar SAL FOLD models (Li-Ion or Lead-Acid battery)
Art. no. 930 182

i

Protection plate

Optionally available

Lifting system 900 mm
for loads up to 120 kg (folding platform - Art. no. 100 529 - available as option)
Art. no. 930 173


Lifting system 1100 mm
for loads up to 120 kg (folding platform - Art. no. 100 529 - available as option)
Art. no. 930 184

Fits to: LiftKar SAL ERGO, FOLD-L and UNI models (Li-Ion or Lead-Acid battery)
Compatible with the Toe plate S (Art. no. 030 025) and Toe plate G (Art. no. 930 003)

i

Lifting system

Optionally available

max. load capacity 80 kg - 176 lbs, or about 15 chairs

Art. no. 930 183

i

Chair holder

Optionally available

Door and panel holder for LiftKar SAL UNI, ERGO and FOLD-L models (Li-Ion or Lead-Acid battery)
for loads up to 150 kg
Art. no. 930 153

(incl. fixation belt 3,5 m / 50 mm
Art. no. 930 123)

i

Door and panel holder

Optionally available

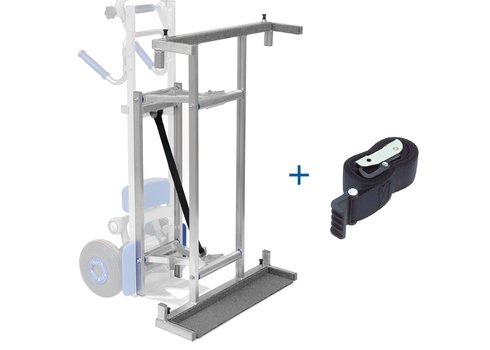

Door and panel holder for LiftKar SAL UNI, ERGO and FOLD-L models (Li-Ion or Lead-Acid battery)
for loads up to 150 kg

(incl. ratched strap with roll-up mechanism instead of standard belt)
Art. no. 930 196

i

Door and panel holder + incl. ratched belt

Optionally available

for your company logo

Art. no. 936 067

i

Advertising panel

Optionally available

Art. no. 930 171

i

Crate - box hook

Optionally available

Art. nr. 930 108

i

Keg hook

Optionally available

Art. no. 930 107

i

Twin bottle holder

Optionally available

with Air-Tyre black, blue rim with ball bearings

Art. no. 030 145

i

Standard wheel

Standard equipment

with Air-Tyre grey, blue rim with ball bearings

Art. no. 930 110

i

Non-marking wheel

Optionally available

grey rim rugged with ball bearings

Art. no. 930 148

i

Puncture proof wheel

Optionally available

Wheel base extension 80 mm
80 mm wider, per pair
Art. no. 930 111

i

Wheel base extension

Optionally available

for LiftKar SAL
Art. no. 930 193

i

Ratched belt with roll-up mechanism - complete

Optionally available

Long:
length: 860 mm / 33", fits all models except SAL FOLD-L Dolly Kick-Out and SAL FOLD
Art. no. 930 131

Short:
length: 520 mm / 20.5", for LiftKar SAL FOLD models (Li-Ion or Lead-Acid battery)
Art. no. 935 144

i

Support wings

Optionally available

for 6 bottles, fixed toe plate for 2 bottles or cooler/stacked goods and 4 hinged bottle carriers
Art. no. 930 132

Fits to: LiftKar SAL ERGO and UNI models (Li-Ion or Lead-Acid battery)

i

Water bottle attachment | SAL AQUA for 6 water bottles

Optionally available

incl. mounting parts
Art. no. 830 001



i

Hinged toe plate assy

Optionally available

incl. mounting parts
Art. no. 830 002

i

Toe plate block fixed

Optionally available

450x185 mm - not hinged
without toe-plate assy
Art. no. 027 047



i

Die-Casting Toe plate

Optionally available

for the fixation of the toe plate block
Art. no. 930 103

i

Fixed toe plate assembly set

Optionally available

275x236x7 mm
with grooves to prevent load slipping sideways
Art. no. 030 025

i

Toe plate S

Optionally available

420x340x7 mm
for large packages
Art. no. 930 003

i

Toe plate G

Optionally available

450x190x7 mm
also for packages
Art. no. 930 085

i

Toe plate DS-NG

Optionally available

476x239x7 mm
as used in the beverages industry; wide enough for safe transport
of kegs and crates - no straps required
Art. no. 930 030

i

Toe plate GS

Optionally available

476x239x7 mm
for packages (e.g.: beverage cans)
Art. no. 930 084

i

Toe plate GS-NG

Optionally available

467x278x5 mm
same as toe plate V but larger
Art. no. 930 002

i

Toe plate LH

Optionally available

413x233x5 mm
toe plate for transporting oxygen cylinders, etc.
Art. no. 930 001

i

Toe plate V

Optionally available

356x180x7 mm
for white goods, refilling vending machines etc.
Art. no. 930 018

i

Toe plate WL

Optionally available

590x180x7 mm
also for white goods, feet stand on toe plate
Art. no. 930 074

i

Toe plate XWL

Optionally available

Width x Depth: 330 x 450 mm - 13 x 17.7 in

Art. no. 930 191

i

Toe plate special-SAL with forks for containers

Optionally available

Technical data

The LiftKar SAL Pro stairclimbers
in figures and facts

Article Number
Description

Load capacity

Load capacity | Pounds

Weight base unit without battery
Weight base unit without battery | Pounds
Battery weight
Battery weight | Pounds
Autonomy (max.)
Climbing speed (steps / min.)
For use on steep and narrow spiral staircases
Foldable
Transportation over stairs
Transportation on flat surfaces
Maximum step height

Dimensions (height/width/depth)

Dimensions (height/width/depth) | Inch

SAL Pro FOLD
038 708 / 038 707 / 038 723
The compact, easy to transport



110 / 140 / 170 kg





242.5 / 308.6 / 374.8 lbs





15,7 kg





34.6 lbs





1,6 kg





3.5 lbs



approx. 2000 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
✔
✔
✔
210 mm

1560 (1000 folded) / 480 / 280 mm

61.4 (39.4 folded) / 18.9 / 11.0 in

SAL Pro FOLD-L
038 717 / 038 716 / 038 724
The all-rounder, compact & versatile



110 / 140 / 170  kg





242.5 / 308.6 / 374.8 lbs





17,9 kg





39.4 lbs





1,6 kg





3.5 lbs



approx. 2000 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
✔
✔
✔
210 mm

1750 (1360 folded) / 480 / 280  mm

68.9 (53.5 folded) / 18.9 / 11.0 in

SAL Pro FOLD-L Dolly KICK-OUT
038 733 / 038 734 / 038 735
The larger chooice for longer distances



110 / 140 / 170 kg





242.5 / 308.6 / 374.8 lbs





22,9 kg





50.4 lbs





1,6 kg





3.5 lbs



approx. 2000 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
✔
✔
✔
210 mm

1920 (1540 folded) / 480 / 230 (1300 Dolly-Kick-Out extended) mm

75.6 (60.6 folded) / 18.9 / 9.1 (51.2 Dolly-Kick-Out extended) in

SAL Pro ERGO
035 705 / 035 704 / 035 722
The specialist for stacked goods



110 / 140 / 170 kg





242.5 / 308.6 / 374.8 lbs





15,8 kg





34.8 lbs





1,6 kg





3.5 lbs



approx. 2000 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
-
✔
✔
210 mm

1600 / 480 / 410 mm

63.0 / 18.9 / 16.1 in

SAL Pro UNI
035 702 / 035 701
The professional for higher loads



110 / 140 kg





242.5 / 308.6 lbs





15,4 kg





33.9 lbs





1,6 kg





3.5 lbs



approx. 2000 steps (up and down)
48 / 35 (steps/min.)
✔
-
✔
✔
210 mm

1530 / 480 / 280  mm

60.2 / 18.9 / 11.0 in

SAL Pro DR-Pistol
035 755 / 035 754
Light, Agile, Perfect for Beverage Deliveries!



110 / 140 kg





242.5 / 308.6 lbs





15,2 kg





34.1 lbs





1,6 kg





3.5 lbs



approx. 2000 steps (up and down)
48 / 35 (steps/min.)
✔
-
✔
✔
210 mm

1370 / 480 / 410 mm

63.0 / 18.9 / 16.1 in

Videos
download as PDF
Article Number
Description
Ideal for

Load capacity

Load capacity | Pounds

Weight base unit without battery
Weight base unit without battery | Pounds
Battery weight
Battery weight | Pounds
Autonomy (max.)
Climbing speed (steps / min.)
For use on steep and narrow spiral staircases
Foldable
Transportation over stairs
Transportation on flat surfaces
Maximum step height

Dimensions (height/width/depth)

Dimensions (height/width/depth) | Inch

SAL Pro UNI
035 702 / 035 701
The professional for higher loads
Copy paper, laundry containers, cupboards, rolled goods



110 / 140 kg





242.5 / 308.6 lbs





15,4 kg





33.9 lbs





1,6 kg





3.5 lbs



approx. 2000 steps (up and down)
48 / 35 (steps/min.)
✔
-
✔
✔
210 mm

1530 / 480 / 280  mm

60.2 / 18.9 / 11.0 in

to the model
NEO LiftKar SAL UNI
The professional for tall loads
copier paper, laundry containers, cupboards, rolled goods



110 kg / 140 kg / 170 kg





242.5 lb / 308.6 lb / 374.8 lb





15,5 kg





34.1 lbs





1,6 kg





3.5 lbs



approx. 2000 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
-
✔
✔
210 mm

1530 / 480 / 280 mm

60.2" / 18.9" / 11"

to the model
LiftKar SAL UNI
The lightweight all-rounder for higer loads
Photocopy paper, laundry containers, cupboard, rolling goods



110 kg / 140 kg / 170 kg





242.5 lbs / 308.6 lbs / 374.8 lbs





15,5 kg





34.1 lbs





4 kg





8.8 lbs



300 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
-
✔
✔
210 mm

1530 / 480 / 280 mm

60.2" / 18.9" / 11"

to the model
download as PDF
Article Number
Description
Ideal for

Load capacity

Load capacity | Pounds

Weight base unit without battery
Weight base unit without battery | Pounds
Battery weight
Battery weight | Pounds
Autonomy (max.)
Climbing speed (steps / min.)
For use on steep and narrow spiral staircases
Foldable
Transportation over stairs
Transportation on flat surfaces
Maximum step height

Dimensions (height/width/depth)

Dimensions (height/width/depth) | Inch

SAL Pro ERGO
035 705 / 035 704 / 035 722
The specialist for stacked goods
Beer kegs, water bottles, beverage crates, tire stacks



110 / 140 / 170 kg





242.5 / 308.6 / 374.8 lbs





15,8 kg





34.8 lbs





1,6 kg





3.5 lbs



approx. 2000 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
-
✔
✔
210 mm

1600 / 480 / 410 mm

63.0 / 18.9 / 16.1 in

to the model
NEO LiftKar SAL ERGO
The specialist for stacked goods
beer kegs, water bottles, beverage crates, tyre stacks



110 kg / 140 kg / 170 kg






242.5 lbs / 308.6 lbs / 374.8 lbs





16,0 kg





35.2 lbs





1,6 kg





3.5 lbs



approx. 2000 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
-
✔
✔
210 mm

1600 / 480 / 410 mm


63" / 18.9" / 16.1"

to the model
LiftKar SAL ERGO
upright posture and maximum control
beer barrels, water bottles, drinks crates, stacks of tyres



110 kg / 140 kg / 170 kg





242.5 lbs / 308.6 lbs / 374.8 lbs





16 kg





35.2 lbs





4 kg





8.8 lbs



300 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
-
✔
✔
210 mm

1570 / 480 / 410 mm

61.8" / 18.9" / 16.1"

to the model
download as PDF
Article Number
Description
Ideal for

Load capacity

Load capacity | Pounds

Weight base unit without battery
Weight base unit without battery | Pounds
Battery weight
Battery weight | Pounds
Autonomy (max.)
Climbing speed (steps / min.)
For use on steep and narrow spiral staircases
Foldable
Transportation over stairs
Transportation on flat surfaces
Maximum step height

Dimensions (height/width/depth)

Dimensions (height/width/depth) | Inch

SAL Pro FOLD
038 708 / 038 707 / 038 723
The compact, easy to transport
Washing machines, gas cylinder, floor sanders



110 / 140 / 170 kg





242.5 / 308.6 / 374.8 lbs





15,7 kg





34.6 lbs





1,6 kg





3.5 lbs



approx. 2000 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
✔
✔
✔
210 mm

1560 (1000 folded) / 480 / 280 mm

61.4 (39.4 folded) / 18.9 / 11.0 in

to the model
NEO LiftKar SAL FOLD
035 708 / 035 707 / 035 723
The compact one, easy to transport
washing machines, gas cylinders, floor grinders



110 kg / 140 kg / 170 kg






242.5 lbs / 308.6 lbs / 374.8 lbs





16,0 kg





35.2 lbs





1,6 kg





3.5 lbs



approx. 2000 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
✔
✔
✔
210 mm

1550 (folded 1000) / 480 / 280 mm


61" (39.3" folded) / 18.9" / 11"

to the model
LiftKar SAL FOLD
030 708 / 030 707 / 030 723
folding model, fits in any car boot
washing machines, floor sanding machines, gas cylinders



110 kg / 140 kg / 170 kg





242.5 lbs / 308.6 lbs / 374.8 lbs





16 kg





35.2 lbs





4 kg





8.8 lbs



300 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
✔
✔
✔
210 mm

1450 (folded 1000) / 480 / 280 mm

57.1" (39.3" folded) / 18.9" / 11"

to the model
download as PDF
Article Number
Description
Ideal for

Load capacity

Load capacity | Pounds

Weight base unit without battery
Weight base unit without battery | Pounds
Battery weight
Battery weight | Pounds
Autonomy (max.)
Climbing speed (steps / min.)
For use on steep and narrow spiral staircases
Foldable
Transportation over stairs
Transportation on flat surfaces
Maximum step height

Dimensions (height/width/depth)

Dimensions (height/width/depth) | Inch

SAL Pro FOLD-L
038 717 / 038 716 / 038 724
The all-rounder, compact & versatile
Large refrigerators, doors, windows, furniture, kitchen worktops, tiles



110 / 140 / 170  kg





242.5 / 308.6 / 374.8 lbs





17,9 kg





39.4 lbs





1,6 kg





3.5 lbs



approx. 2000 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
✔
✔
✔
210 mm

1750 (1360 folded) / 480 / 280  mm

68.9 (53.5 folded) / 18.9 / 11.0 in

to the model
NEO LiftKar SAL FOLD-L
The all-rounder, compact & stable
large refrigerators, doors, windows, furniture, kitchen worktops, tiles



110 kg / 140 kg / 170 kg






242.5 lbs / 308.6 lbs / 374.8 lbs





17,2 kg





37.9 lbs





1,6 kg





3.5 lbs



approx. 2000 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
✔
✔
✔
210 mm

1740 (folded 1350) / 480 / 280 mm

68.5" (53.1" folded) / 18.9" / 11"

to the model
LiftKar SAL FOLD-L
folding model with higher base frame
large refrigerators, doors, windows, kitchen worktops, tiles



110 kg / 140 kg / 170 kg






242.5 lbs / 308.6 lbs / 374.8 lbs





17 kg





37.4 lbs





4 kg





8.8 lbs



300 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
✔
✔
✔
210 mm

1630 (folded 1305) / 480 / 280 mm


64.1" (51.3" folded) / 18.9" / 11"

to the model
Downloads

Download area in PDF format

Flyer LiftKar SAL ProDownload PDF
Repair sheetDownload PDF
LiftKar SAL Pro Instruction manualDownload PDF

To top
