Models

TWIN HD

TWIN LINE

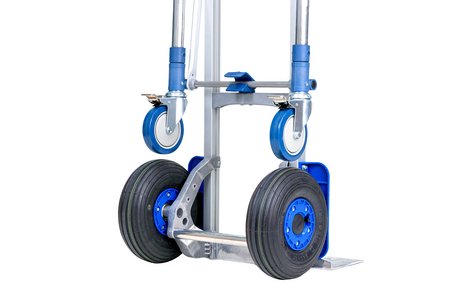

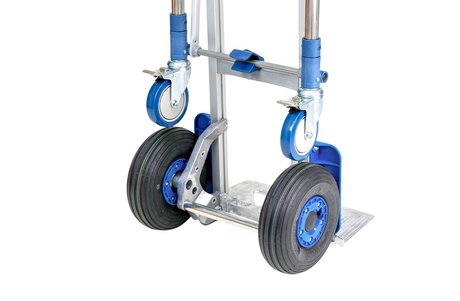

Convertible 2-4 wheel handtruck - Air tyres Ø 260 mm
and swivel-castors with brake. Capacity up to 350 kg

Vertical device height: 1400 mm
Weight: 17,5 kg

KgArt.Nr.€ *
300027 700696

* Prices: ex works, exkl. VAT, unpacked.

Market-specific pricing – please contact your local dealer.

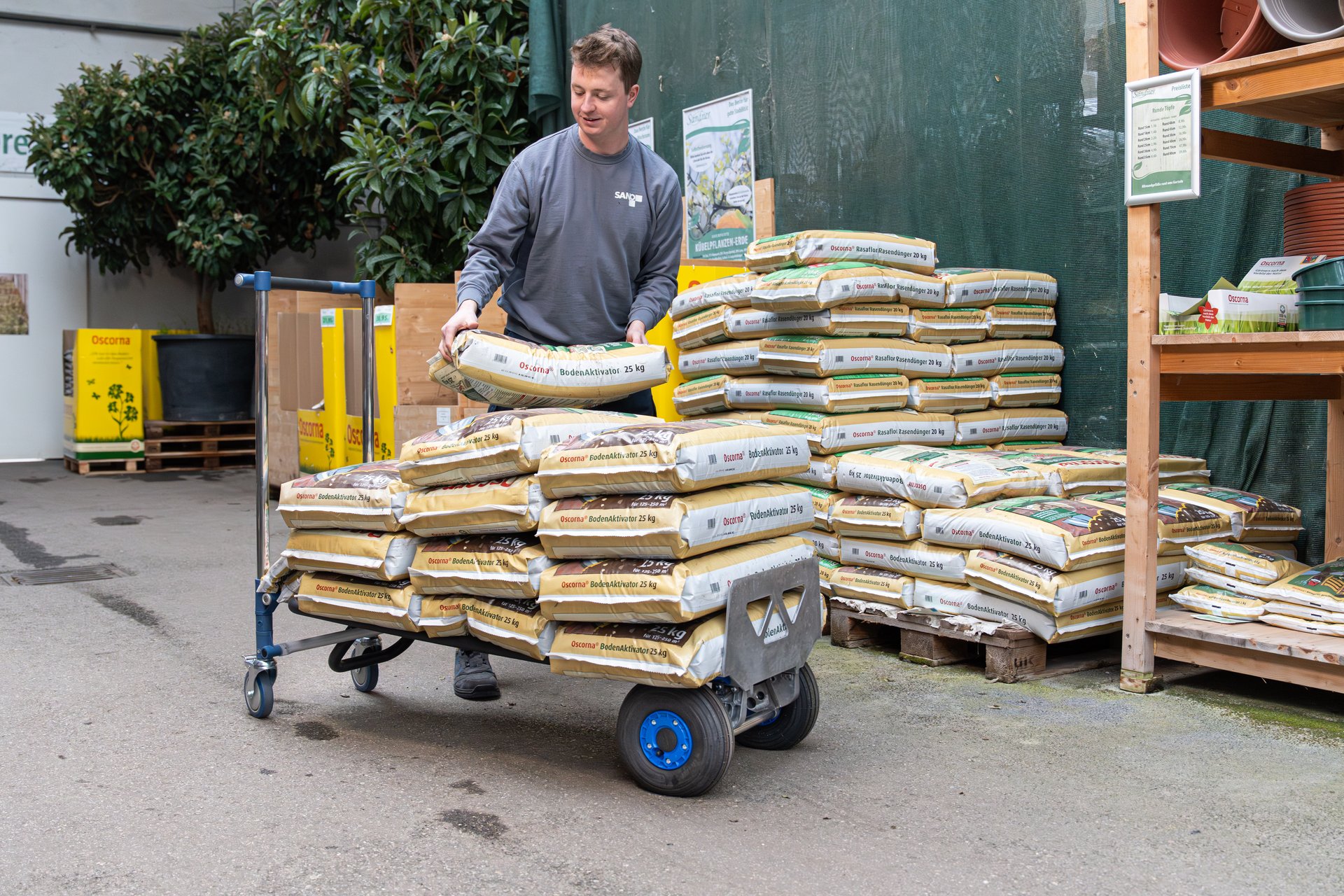

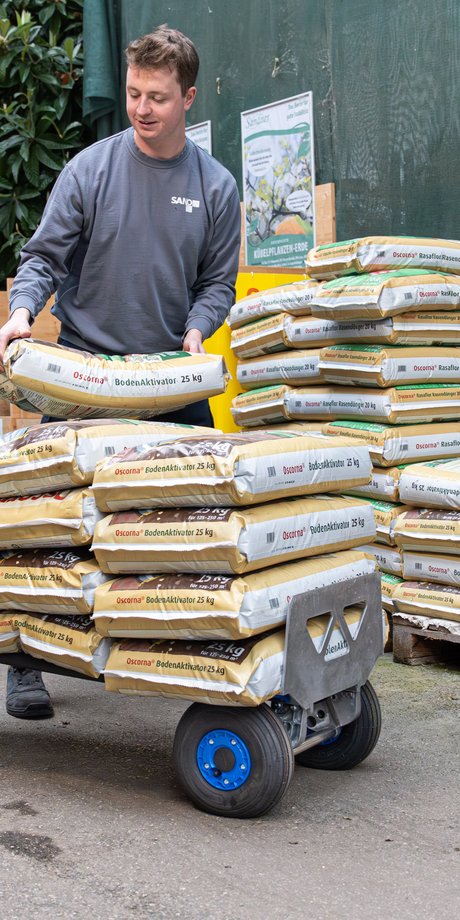

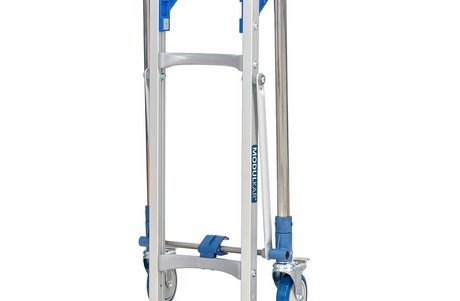

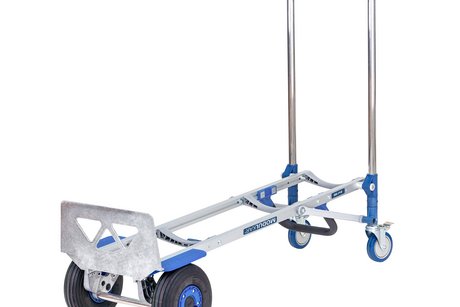

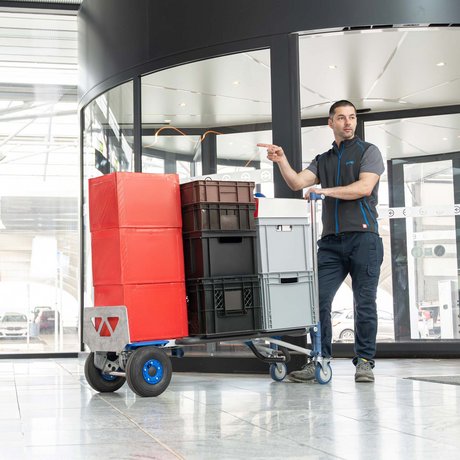

The ModulKar TWIN HD is the perfect solution for anyone looking for a flexible, robust and durable handtruck. Thanks to its innovative design, the Modulkar can be effortlessly converted from a push cart to a sack truck and thus offers double the possible uses. Whether in logistics, retail or event technology - the ModulKar TWIN HD ensures fast and safe transport of loads of up to 350 kg wherever you need it.

article number: 027 700

standard equipment:
- handle with soft tube
- incl. Die-Casting Toe plate
- pneumatic tires

key data:
- weight: 16.5 kg
- dimensions: HxWxD 1400 mm x 490 mm x 470 mm
  (H: 1130 x W: 490 x D: 1470 mm with all 4 wheels folded out)

A wide range of accessories and options available

TWIN LT

TWIN LINE

Convertible 2-4 wheel handtruck - Nylon wheels Ø 200 mm

Vertical device height: 1400 mm
Weight: 13 kg

KgArt.Nr.€ *
200027 701598

* Prices: ex works, exkl. VAT, unpacked.

Market-specific pricing – please contact your local dealer.

TWIN LT-S

TWIN LINE

Convertible 2-4 wheel handtruck - Nylon wheels Ø 200 mm

Vertical device height: 1000 mm
Weight: 11,2 kg

KgArt.Nr.€ *
200027 702538

* Prices: ex works, exkl. VAT, unpacked.

Market-specific pricing – please contact your local dealer.

MODULKAR BASIC by SANO-Stairclimbers

Description

ModulKar

Superior-quality modular handtruck for loads up to 350 kg*

ModulKar is a handtruck built from high-strength stairclimber components. Basically the LiftKar SAL without a motor. Modular design means virtually all components can be changed. As a result the ModulKar can be optimised for a wide range of transport situations. The maximum load capacity is 350 kg*.

The patented tube cross-section with double centre web means bolts can go right through. The groove on the inside provides extra strength. The heavy-duty wheel mountings in combination with the connecting axle being just 8 cm above the ground makes it easy to tilt. Only one spanner is required because the same TORX bolts are used throughout.

A synthetic washer together with a cup spring prevent the toe plate from clattering. Wheel changes are easy with the bolted two-piece rim. Puncture-proof tyres can be fitted as an alternative. Wheel changes are Formula 1 style using just one bolt! The wheels are mounted on industrial-class ball bearings.

*Depending on the model
Downloads APPLICATION AREAS
for loads up to 350 kg

extremely strong wheel bracket

patented tubular cross-section
Details
Advantages

8 unbeatable advantages
to convince you

  1. patented tubular cross-section, extremely strong
  2. easy wheel changing using just one bolt
  3. customizable for all transport situations
  4. extremely strong wheel brackets
  1. connecting axle with support struts for rigidity
  2. innovative rattle free foldable toe plate mounting
  3. two-piece wheel – mounted on ball bearings
  4. new ergonomic design
Wheel Change

Wheel changes in just 10 seconds – Easy for everyone!

Whether young or old, man or woman – our ModulKar models enable a quick and easy **tire change in just 10 seconds**. This easy handling not only saves time, but also makes work easier for all users.

Applications

The ModulKar handtruck
in daily situations

Extras & Accessories

Additional options matching your needs

Fixation belt 1,40 m / 25 mm

Optionally available

Fixation belt 1,40 m / 25 mm
Art. no. 930 006

(does not fit on ModulKar 2 in 1 HD model)

i

Fixation belt 2,70 m / 25 mm

Optionally available

Fixation belt 2,70 m / 25 mm
Art. no. 930 007

(does not fit on ModulKar 2 in 1 HD model)

i

Advertising panel

Optionally available

for your company logo

Art. no. 936 067

i

Keg hook

Optionally available

Art. no. 930 108

i

Crate - box hook

Optionally available

Art. no. 930 171

i

Twin bottle holder

Optionally available

Art. no. 930 107

i

Table platform

Optionally available

Platform 600 x 590 mm, height 600 mm, incl. mounting pins, to be used with WL and XWL toe plates, hinged or fixed

Art. no. 930 129

i

Standard wheel

Standard equipment

with Air-Tyre black, blue rim with ball bearings

Art. no. 030 145

i

Non-marking wheel

Optionally available

with Air-Tyre grey, blue rim with ball bearings

Art. no. 930 110

i

Puncture proof wheel

Optionally available

grey rim rugged with ball bearings

Art. no. 930 148

i

Wheel base extension

Optionally available

Wheel base extension 80 mm
80 mm wider, per pair
Art. no. 930 111

i

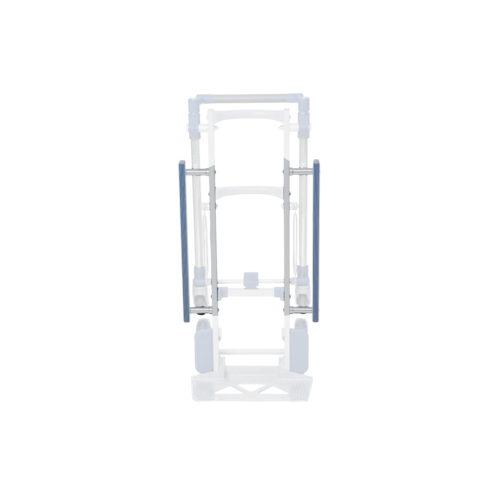

Support wings 860 mm

Optionally available

length: 860 mm / 33", fits all ModulKar models except: AQUA BOXER, AQUA BOXER Pistol and DOLLY KICK-OUT
Art. no. 930 131


i

Bag incl. holder, assembled

Optionally available

for belt, charger, and much more

Art. no. 935 140

i

Ratched belt with roll-up mechanism - complete

Optionally available

for LiftKar SAL
Art. no. 930 193

i

Hinged toe plate assy

Optionally available

incl. mounting parts
Art. no. 830 001



i

Toe plate block fixed

Optionally available

incl. mounting parts
Art. no. 830 002

i

Die-Casting Toe plate

Optionally available

450x185 mm - not hinged
without toe-plate assy
Art. no. 027 047



i

Fixed toe plate assembly set

Optionally available

for the fixation of the toe plate block
Art. no. 930 103

i

Toe plate S

Optionally available

275x236x7 mm
with grooves to prevent load slipping sideways
Art. no. 030 025

i

Toe plate G

Optionally available

420x340x7 mm
for large packages
Art. no. 930 003

i

Toe plate DS-NG

Optionally available

450x190x7 mm
also for packages
Art. no. 930 085

i

Toe plate GS

Optionally available

476x239x7 mm
as used in the beverages industry; wide enough for safe transport
of kegs and crates - no straps required
Art. no. 930 030

i

Toe plate GS-NG

Optionally available

476x239x7 mm
for packages (e.g.: beverage cans)
Art. no. 930 084

i

Toe plate LH

Optionally available

467x278x5 mm
same as toe plate V but larger
Art. no. 930 002

i

Toe plate V

Optionally available

413x233x5 mm
toe plate for transporting oxygen cylinders, etc.
Art. no. 930 001

i

Toe plate WL

Optionally available

356x180x7 mm
for white goods, refilling vending machines etc.
Art. no. 930 018

i

Toe plate XWL

Optionally available

590x180x7 mm
also for white goods, feet stand on toe plate
Art. no. 930 074

i
