ModulKar

Superior-quality modular handtruck for loads up to 300 kg

ModulKar is a handtruck built from high-strength stairclimber components. Basically the LiftKar SAL without a motor. Modular design means virtually all components can be changed. As a result the ModulKar can be optimised for a wide range of transport situations. The maximum load capacity is 300 kg.

The patented tube cross-section with double centre web means bolts can go right through. The groove on the inside provides extra strenght. The heavy-duty wheel mountings in combination with the connecting axle being just 8 cm above the ground makes it easy to tilt. Only one spanner is required because the same TORX bolts are used throughout.
A synthetic washer together with a cup spring prevent the toe plate from clattering. Wheel changes are easy with the bolted two-piece rim. Puncture-proof tyres can be fitted as an alternative. Wheel changes are Formula 1 style using just one bolt! The wheels are mounted on industrial-class ball bearings.



for loads up to 300 kg
extremely strong wheel bracket
patented tubular cross-section
Details
Advantages

8 unbeatable advantages
to convince you

  1. patented tubular cross-section, extremely strong
  2. easy wheel changing using just one bolt
  3. customizable for all transport situations
  4. extremely strong wheel brackets
  1. connecting axle with support struts for rigidity
  2. innovative ratle free foldable toe plate mounting
  3. two-piece wheel – mounted on ball bearings
  4. new ergonomic design
Variants

Discover the ModulKar BASIC by SANO: the handtruck redefining efficiency in load transport. With a 300 kg capacity and quick wheel change system, it adapts to your industry needs seamlessly, ensuring safe and timely deliveries.

article number: 025725

standard equipment:
- height adjustable loop grips
- toe plate foldable/fixed
- pneumatic tyres

key data:
weight: 9,6 Kg
dimensions: HxWxD 1306 mm x 487mm x 275 mm (toe plate folded up)

numerous accessories and options available

The professional: the handtruck redefining transport on long, flat surfaces. With its ability to effortlessly handle loads up to 300 kg, this handtruck excels in industries like beverages, postal services, furniture, and construction. Its ergonomic design not only exceeds quality expectations but also significantly reduces spinal strain.

Equipped with stairglider, the ModulKar BOXER is the ideal partner for numerious industrial applications.

article number: 025720

standard equipment:
- height adjustable loop grips with handguard
- toe plate foldable/fixed
- pneumatic tyres
- stair gliders (nylon profiles easy to replace)

key data:
weight: 11,2 Kg
dimensions: HxWxD 1306 mm x 507 mm x 369 mm (toe plate folded up)

numerous accessories and options available

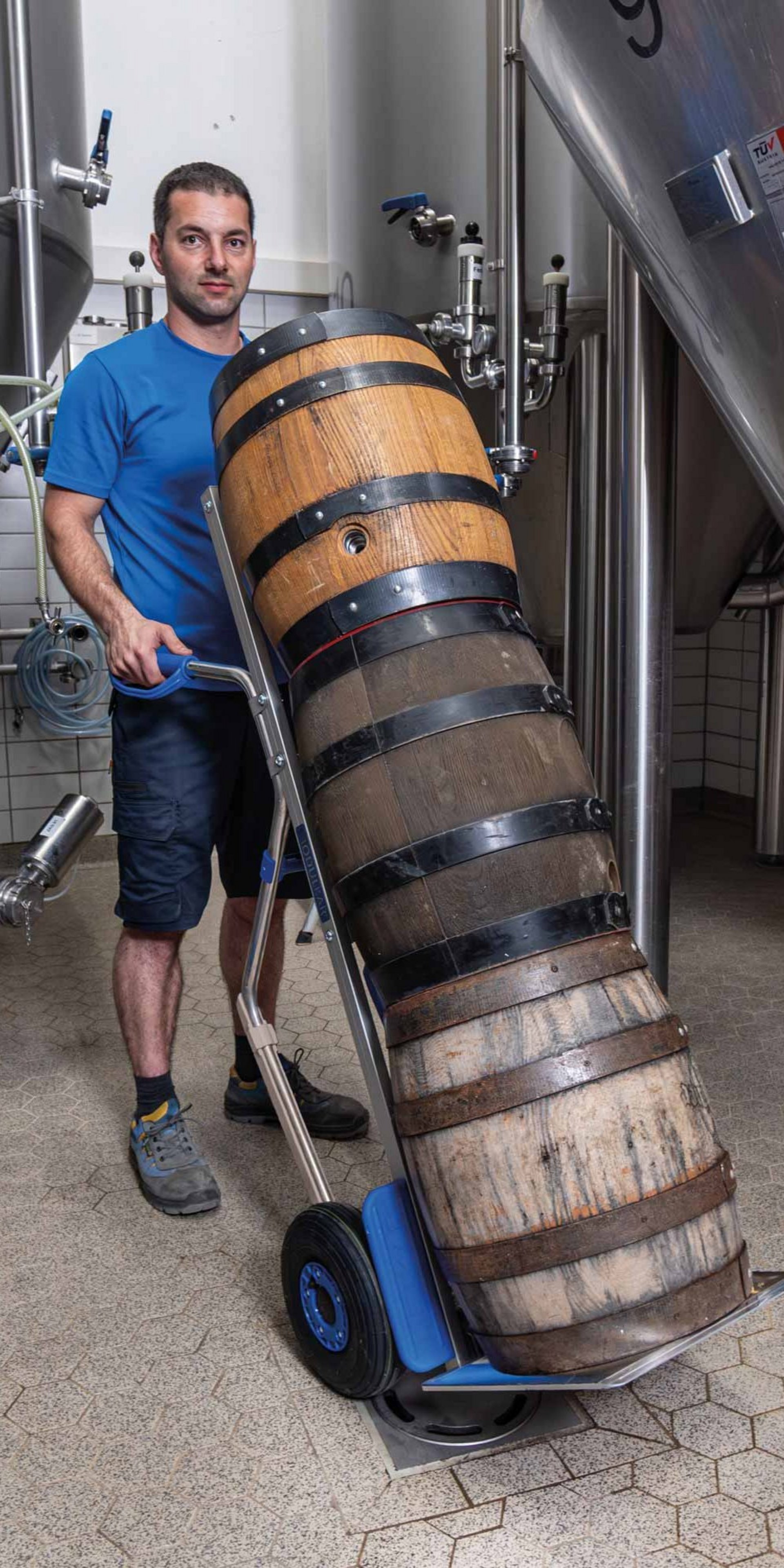

The ModulKar BOXER PISTOL is another versatile handtruck version revolutionizing transport on long, flat surfaces, with pistol grips. Tailored to effortlessly handle loads up to 300 kg, this model excels in industries like retail delivery, warehouse operations, event logistics, and heavy equipment handling.

Step into a new era of efficiency, spine-friendly transport with the ModulKar BOXER PISTOL. Redefine how you handle heavy loads with superior quality and user-friendly design.

article number: 025703

standard equipment:
- pistol grips with handguard
- toe plate foldable/fixed
- pneumatic tyres
- stair gliders (nylon profiles easy to replace)

key data:
weight: 10,6 Kg
dimensions: HxWxD 1306 mm x 487 mm x 379 mm (toe plate folded up)

numerous accessories and options available

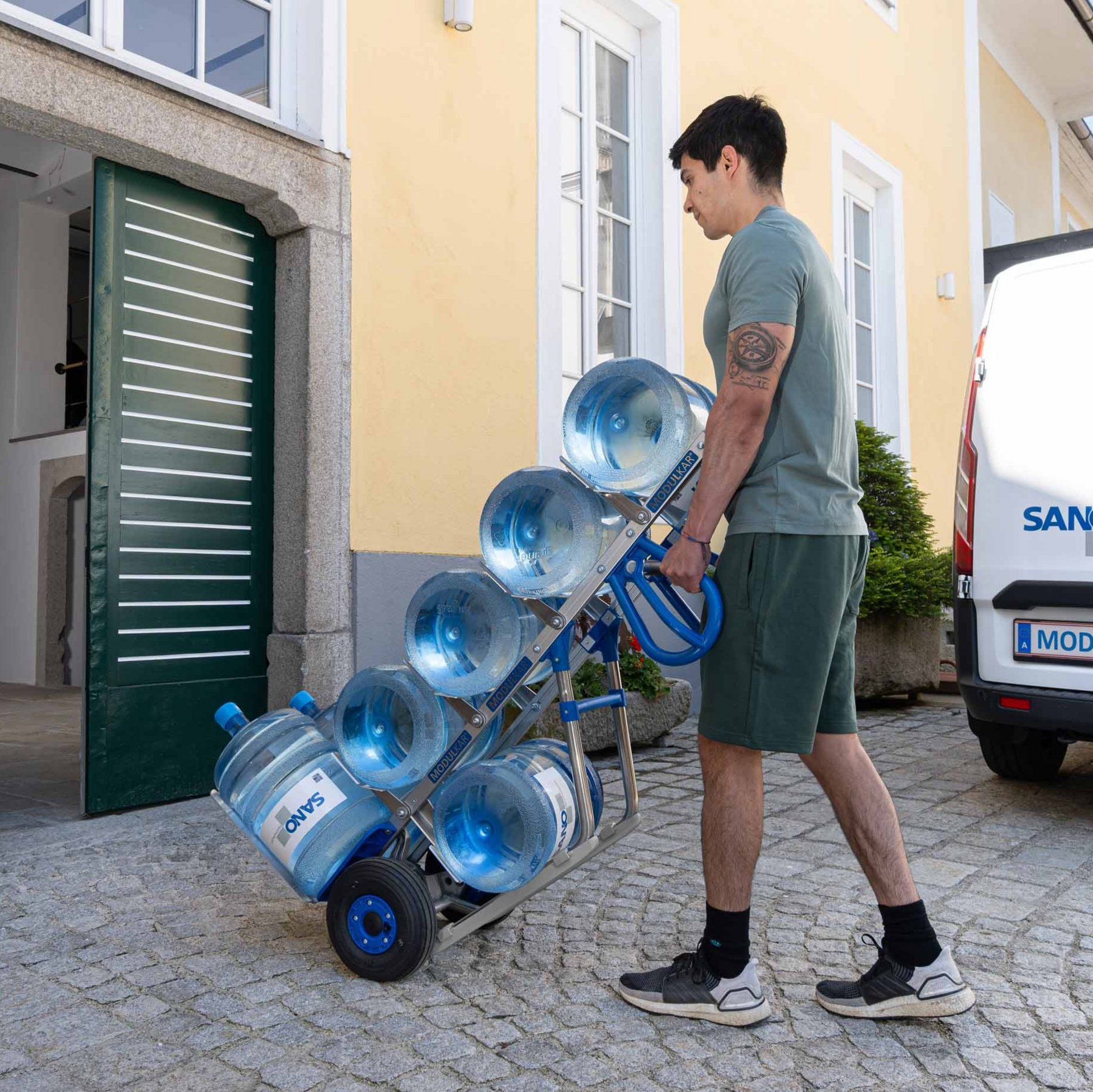

Introducing the ModulKar AQUA,the newest addition to our innovative product line, specifically designed to streamline water deliveries. This robust handtruck can carry up to 7 water bottles, catering to the high demands of water delivery services.

Building on the strengths of our renowned ModulKar BOXER, the ModulKar AQUA inherits features like ergonomic design and adaptability to various terrains.

The ModulKar AQUA stands for functionality, efficiency and reliability. It is designed for daily use and ensures that work of professionals can be done without interruption.

article number: 025726

standard equipment:
- loop grips with handguard
- trays for 7 bottles (5 foldable trays)
- pneumatic tyres
- stair gliders (nylon profiles easy to replace)

key data:
weight: 17 Kg
dimensions: HxWxD 1358 mm x 507 mm x 730 mm

numerous accessories and options available

Presenting ModulKar AQUA PISTOL, an innovative addition to our product line, designed to revolutionize water deliveries. Equipped with pistol grips, this handtruck can transport up to 7 water bottles, meeting the demanding requirements of water delivery service.

Similar to our ModulKar BOXER, the ModulKar AQUA PISTOL features an ergonomic design and is adaptable to various terrains. More than just functional, the ModulKar AQUA PISTOL stands for reliability and efficiency. Designed for daily use, it ensures professionals can perform their water deliveries without interruptions. Capable of carrying up to 7 large water bottles, it guarantees operator comfort and safety, thanks to its pistol grips, which offer an ergonomic and adaptable grip.

article number: 025718

standard equipment:

- pistol grips with handguards
- trays for 7 bottles (5 folding trays)
- pneumatic wheels
- ladder slides (nylon profiles easy to replace)

Key features
weight: 16,1 Kg

dimensiones: Hx W x D 1357 mm x 487 mm x 742 mm

numerous accessories and options available

Applications

The ModulKar handtruck
in daily situations

Extras & Accessories

Additional options matching your needs

Platform 600 x 590 mm, height 600 mm, incl. mounting pins, to be used with WL and XWL toe plates, hinged or fixed

Art. no. 930 129

i

Table platform

Optionally available

Art. nr. 930 108

i

Keg hook

Optionally available

fixation belt 3,5 m / 50 mm

With special hooks for optimum load fixation and robust metal lashing buckle.


Art. no. 930 123

i

Fixation belt 3,5 m / 50 mm

Optionally available

Fixation belt 1,40 m / 25 mm
Art. no. 930 006

i

Fixation belt 1,40 m / 25 mm

Optionally available

Fixation belt 4,20 m / 50 mm

With special hooks for optimum load fixation and robust metal lashing buckle.

Art. no. 930 156

i

Fixation belt 4,20 m / 50 mm

Optionally available

Art. no. 930 171

i

Crate - box hook

Optionally available

Art. no. 930 107

i

Twin bottle holder

Optionally available

Bag incl. holder, blue

for belt, charger, and much more

Art. no. 935 140



Bag incl. holder, red

for belt, charger, and much more

Art. no. 935 146

i

Bag incl. holder

Optionally available

Ratched strap with roll-up mechanism instead of standard belt for door and panel holder for SAL
Art. no. 930 196

i

Ratched belt with roll-up mechanism

Optionally available

for your company logo

Art. no. 935100

i

Advertising panel

Optionally available

non-marking, per pair

Art. no. 930 109

i

Main wheel grey

Optionally available

grey, per pair

Art. no. 930 119

i

Puncture-proof tyres

Optionally available

Wheel base extension 80 mm
80 mm wider, per pair
Art. no. 930 111

i

Wheel base extension

Optionally available

Short
length: 520 mm, per pair for NEO LiftKar SAL FOLD
Art. no. 935 144

Short
length: 334 mm, per pair for LiftKar SAL FOLD
Art. no. 930126

Long
length: 840 mm, per pair for NEO LiftKar SAL ERGO, FOLD-L, UNI
and LiftKar SAL ERGO, FOLD-L, UNI
Art. no. 930 131

i

Wings for white goods

Optionally available

450x190x7 mm
also for packages
Art. no. 930 085

i

Toe plate DS-NG

Optionally available

420x340x7 mm
for large packages
Art. no. 930 003

i

Toe plate G

Optionally available

476x239x7 mm
as used in the beverages industry; wide enough for safe transport
of kegs and crates - no straps required
Art. no. 930 030

i

Toe plate GS

Optionally available

476x239x7 mm
for packages (e.g.: beverage cans)
Art. no. 930 084

i

Toe plate GS-NG

Optionally available

467x278x5 mm
same as toe plate V but larger
Art. no. 930 002

i

Toe plate LH

Optionally available

275x236x7 mm
with grooves to prevent load slipping sideways
Art. no. 030 025

i

Toe plate Standard

Optionally available

413x233x5 mm
toe plate for transporting oxygen cylinders, etc.
Art. no. 930 001

i

Toe plate V

Optionally available

356x180x7 mm
for white goods, refilling vending machines etc.
Art. no. 930 018

i

Toe plate WL

Optionally available

590x180x7 mm
also for white goods, feet stand on toe plate
Art. no. 930 074

i

Toe plate XWL

Optionally available
