Description

ModulKar

Superior-quality modular handtruck for loads up to 350 kg*

ModulKar is a handtruck built from high-strength stairclimber components. Basically the LiftKar SAL without a motor. Modular design means virtually all components can be changed. As a result the ModulKar can be optimised for a wide range of transport situations. The maximum load capacity is 350 kg*.

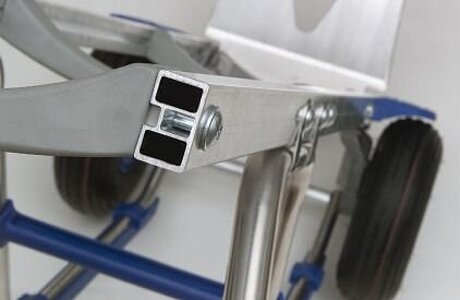

The patented tube cross-section with double centre web means bolts can go right through. The groove on the inside provides extra strength. The heavy-duty wheel mountings in combination with the connecting axle being just 8 cm above the ground makes it easy to tilt. Only one spanner is required because the same TORX bolts are used throughout.

A synthetic washer together with a cup spring prevent the toe plate from clattering. Wheel changes are easy with the bolted two-piece rim. Puncture-proof tyres can be fitted as an alternative. Wheel changes are Formula 1 style using just one bolt! The wheels are mounted on industrial-class ball bearings.

*Depending on the model
for loads up to 350 kg

extremely strong wheel bracket

patented tubular cross-section
Details
Advantages

8 unbeatable advantages
to convince you

  1. patented tubular cross-section, extremely strong
  2. easy wheel changing using just one bolt
  3. customizable for all transport situations
  4. extremely strong wheel brackets
  1. connecting axle with support struts for rigidity
  2. innovative rattle free foldable toe plate mounting
  3. two-piece wheel – mounted on ball bearings
  4. new ergonomic design

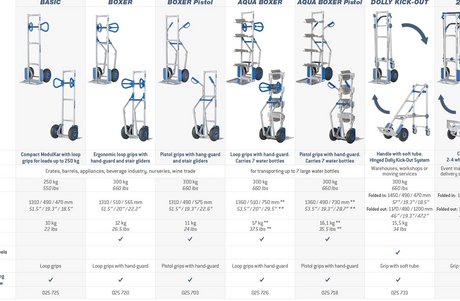

Models

Discover the ModulKar BASIC by SANO: the handtruck redefining efficiency in load transport. With a 250 kg capacity and quick wheel change system, it adapts to your industry needs seamlessly, ensuring safe and timely deliveries.

article number: 025 725

standard equipment:
- height adjustable loop grips
- incl. Die-Casting Toe plate
- pneumatic tyres

key data:
- weight: 10 Kg
- dimensions: HxWxD 1310 mm x 490 mm x 470 mm

A wide range of accessories and options available

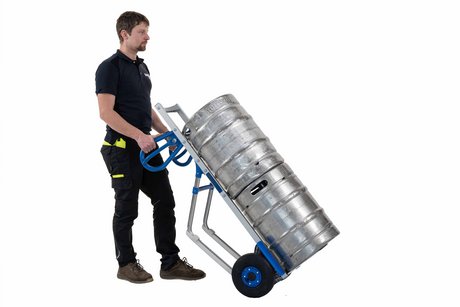

The professional: the handtruck redefining transport on long, flat surfaces. With its ability to effortlessly handle loads up to 300 kg, this handtruck excels in industries like beverages, postal services, furniture, and construction. Its ergonomic design not only exceeds quality expectations but also significantly reduces spinal strain.

Equipped with stair gliders, the ModulKar BOXER is the ideal partner for numerious industrial applications.

article number: 025 720

standard equipment:

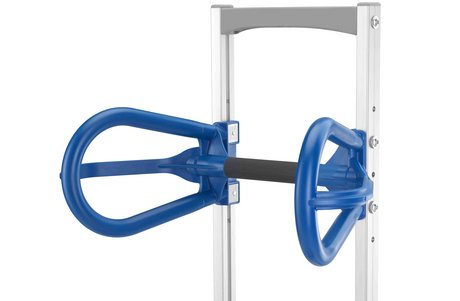

- height adjustable loop grips with handguard
- incl. Die-Casting Toe plate
- pneumatic tyres
- stair gliders (nylon profiles easy to replace)

key data:
- weight: 12 Kg
- dimensions: HxWxD 1310 mm x 510 mm x 565 mm

A wide range of accessories and options available

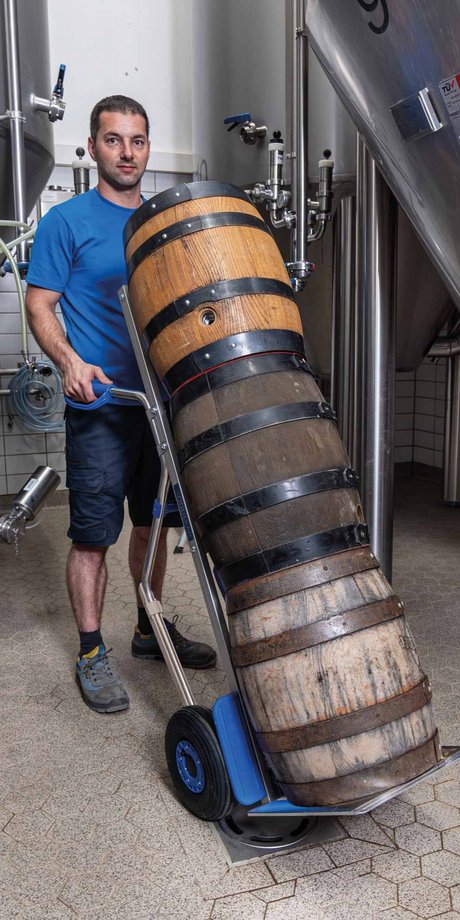

The ModulKar BOXER Pistol is another versatile handtruck version revolutionizing transport on long, flat surfaces, with pistol grips. Tailored to effortlessly handle loads up to 300 kg, this model excels in industries like retail delivery, warehouse operations, event logistics, and heavy equipment handling.

Step into a new era of efficiency, spine-friendly transport with the ModulKar BOXER Pistol. Redefine how you handle heavy loads with superior quality and user-friendly design.

article number: 025 703

standard equipment:
- pistol grips with handguard
- incl. Die-Casting Toe plate
- pneumatic tyres
- stair gliders (nylon profiles easy to replace)

key data:
- weight: 11 Kg
- dimensions: HxWxD 1310 mm x 490 mm x 575 mm

A wide range of accessories and options available

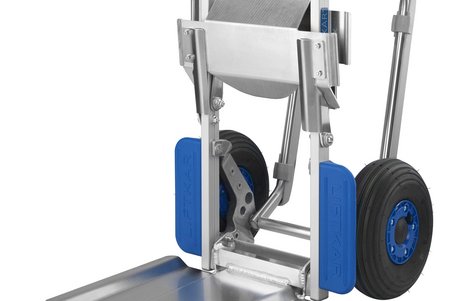

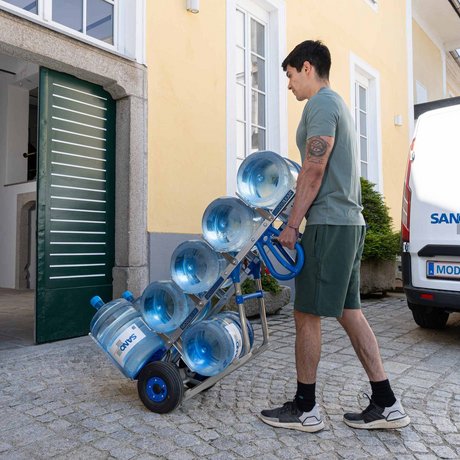

Introducing the ModulKar AQUA BOXER,the newest addition to our innovative product line, specifically designed to streamline water deliveries. This robust handtruck can carry up to 7 water bottles (and up to 300 kg), catering to the high demands of water delivery services.

Building on the strengths of our renowned ModulKar BOXER, the ModulKar AQUA BOXER inherits features like ergonomic design and adaptability to various terrains.

The ModulKar AQUA BOXER stands for functionality, efficiency and reliability. It is designed for daily use and ensures that work of professionals can be done without interruption.

article number: 025 726

standard equipment:
- loop grips with handguard
- trays for 7 bottles (5 foldable trays)
- pneumatic tyres
- stair gliders (nylon profiles easy to replace)

key data:
- weight: 17 Kg
- dimensions: HxWxD 1360 mm x 510 mm x 750 mm

A wide range of accessories and options available

Presenting ModulKar AQUA BOXER Pistol, an innovative addition to our product line, designed to revolutionize water deliveries. Equipped with pistol grips, this handtruck can transport up to 7 water bottles (and up to 300 kg), meeting the demanding requirements of water delivery service.

Similar to our ModulKar BOXER Pistol, the ModulKar AQUA BOXER Pistol features an ergonomic design and is adaptable to various terrains. More than just functional, the ModulKar AQUA BOXER Pistol stands for reliability and efficiency. Designed for daily use, it ensures professionals can perform their water deliveries without interruptions. Capable of carrying up to 7 large water bottles, it guarantees operator comfort and safety, thanks to its pistol grips, which offer an ergonomic and adaptable grip.

article number: 025 718

standard equipment:

- pistol grips with handguards
- trays for 7 bottles (5 folding trays)
- pneumatic wheels
- stair gliders (nylon profiles easy to replace)

key data:
- weight: 16,1 Kg
- dimensions: HxWxD 1360 mm x 490 mm x 730 mm

A wide range of accessories and options available

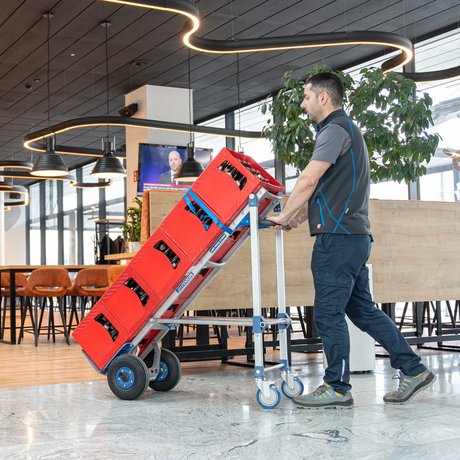

The perfect solution for effortless transport! Thanks to the innovative support wheel system, the ModulKar DOLLY KICK-OUT always remains stable and safe, even with heavy loads up to 300 kg. The hinged design enables easy handling and ensures that the DOLLY KICK-OUT balances itself automatically. This saves you energy, increases safety and optimises your transport processes. Ideal for use in warehouses, workshops or when moving house - this ModulKar is your reliable partner for any kind of transport task!

article number: 025 733

standard equipment:
- handle with soft tube
- foldable Dolly Kick-Out system
- incl. Die-Casting Toe plate
- pneumatic tires

key data:
- weight: 15.5 kg
- dimensions: HxWxD 1450 mm x 490 mm x 470 mm
  (H: 1170 x W: 490 x D: 1200 mm with the Dolly System opened out)

A wide range of accessories and options available



The ModulKar 2 in 1 HD is the perfect solution for anyone looking for a flexible, robust and durable handtruck. Thanks to its innovative design, the Modulkar can be effortlessly converted from a push cart to a sack truck and thus offers double the possible uses. Whether in logistics, retail or event technology - the ModulKar 2 in 1 HD ensures fast and safe transport of loads of up to 350 kg wherever you need it.

article number: 027 700

standard equipment:
- handle with soft tube
- incl. Die-Casting Toe plate
- pneumatic tires

key data:
- weight: 16.5 kg
- dimensions: HxWxD 1400 mm x 490 mm x 470 mm
  (H: 1130 x W: 490 x D: 1470 mm with all 4 wheels folded out)

A wide range of accessories and options available

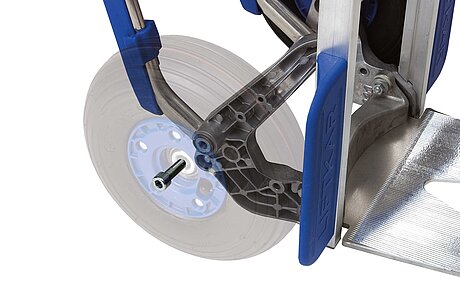

Wheel Change

Wheel changes in just 10 seconds – Easy for everyone!

Whether young or old, man or woman – our ModulKar models enable a quick and easy **tire change in just 10 seconds**. This easy handling not only saves time, but also makes work easier for all users.

Applications

The ModulKar handtruck
in daily situations

Extras & Accessories

Additional options matching your needs

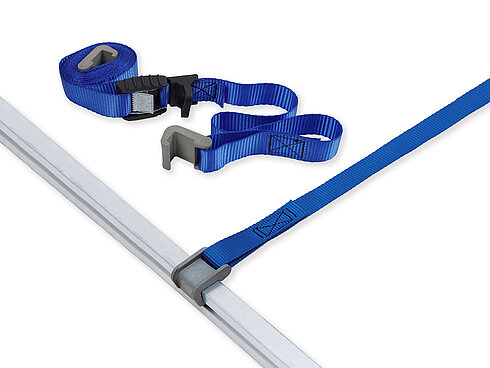

Fixation belt 1,40 m / 25 mm
Art. no. 930 006

(does not fit on ModulKar 2 in 1 HD model)

i

Fixation belt 1,40 m / 25 mm

Optionally available

Fixation belt 2,70 m / 25 mm
Art. no. 930 007

(does not fit on ModulKar 2 in 1 HD model)

i

Fixation belt 2,70 m / 25 mm

Optionally available

for your company logo

Art. no. 936 067

i

Advertising panel

Optionally available

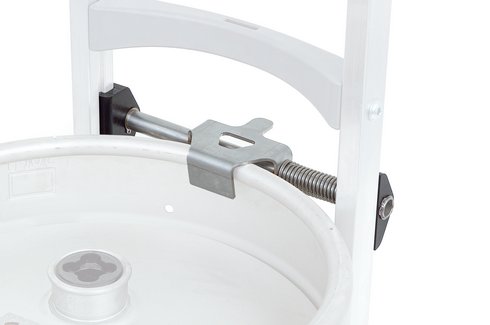

Art. no. 930 108

i

Keg hook

Optionally available

Art. no. 930 171

i

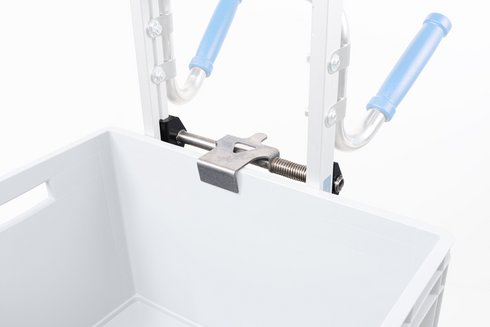

Crate - box hook

Optionally available

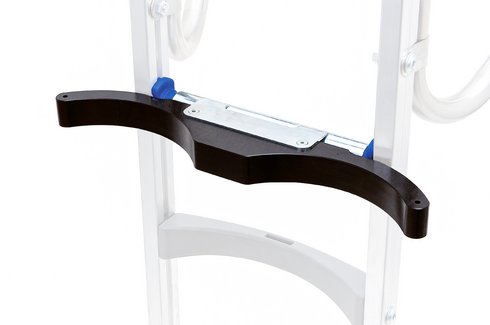

Art. no. 930 107

i

Twin bottle holder

Optionally available

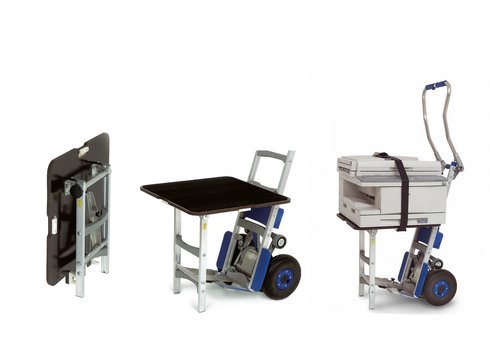

Platform 600 x 590 mm, height 600 mm, incl. mounting pins, to be used with WL and XWL toe plates, hinged or fixed

Art. no. 930 129

i

Table platform

Optionally available

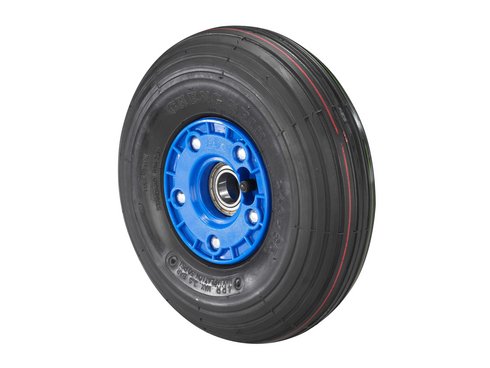

with Air-Tyre black, blue rim with ball bearings

Art. no. 030 145

i

Standard wheel

Standard equipment

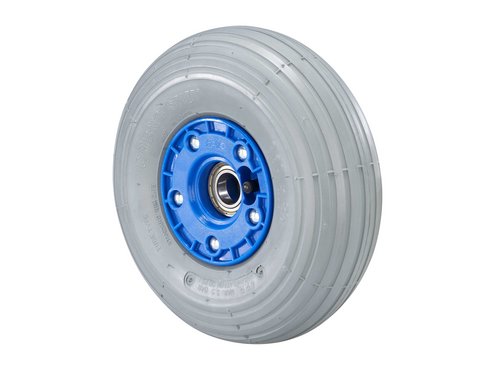

with Air-Tyre grey, blue rim with ball bearings

Art. no. 930 110

i

Non-marking wheel

Optionally available

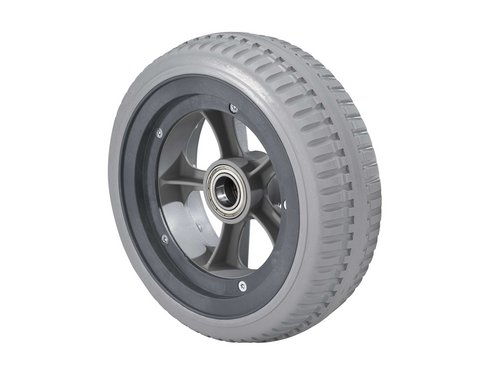

grey rim rugged with ball bearings

Art. no. 930 148

i

Puncture proof wheel

Optionally available

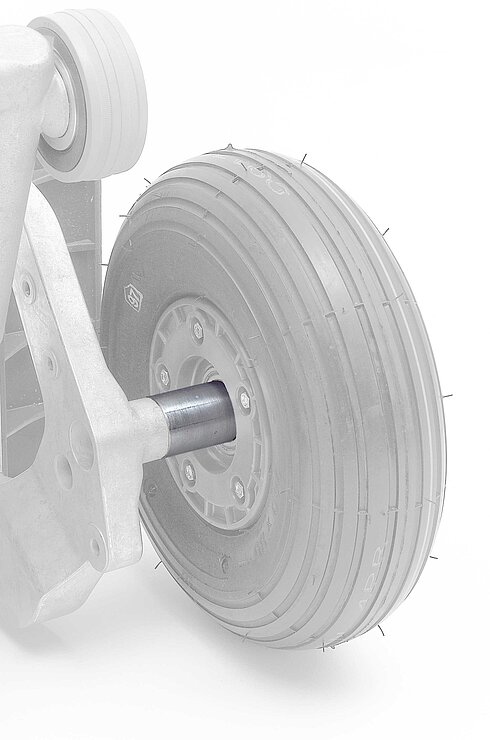

Wheel base extension 80 mm
80 mm wider, per pair
Art. no. 930 111

i

Wheel base extension

Optionally available

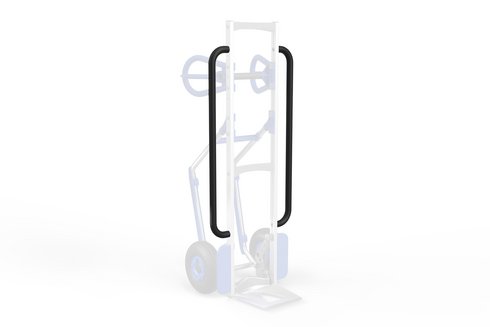

length: 860 mm / 33", fits all ModulKar models except: AQUA BOXER, AQUA BOXER Pistol and DOLLY KICK-OUT
Art. no. 930 131


i

Support wings 860 mm

Optionally available

for belt, charger, and much more

Art. no. 935 140

i

Bag incl. holder, assembled

Optionally available

for LiftKar SAL
Art. no. 930 193

i

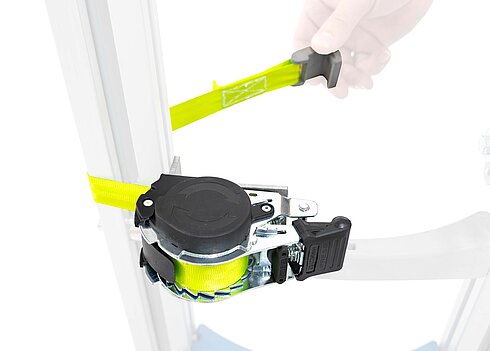

Ratched belt with roll-up mechanism - complete

Optionally available

incl. mounting parts
Art. no. 830 001



i

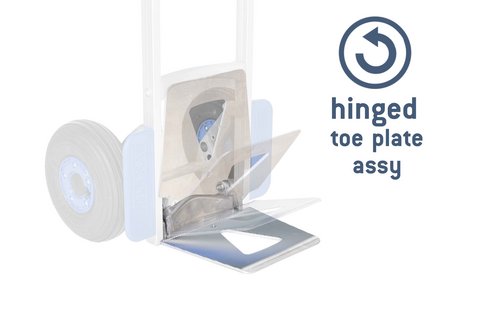

Hinged toe plate assy

Optionally available

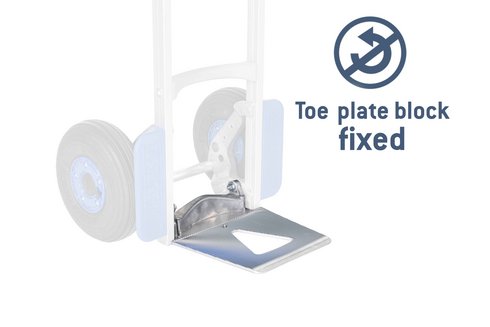

incl. mounting parts
Art. no. 830 002

i

Toe plate block fixed

Optionally available

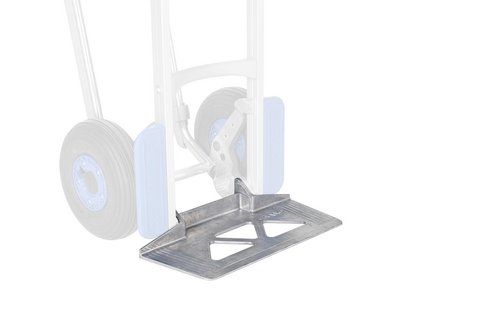

450x185 mm - not hinged
without toe-plate assy
Art. no. 027 047



i

Die-Casting Toe plate

Optionally available

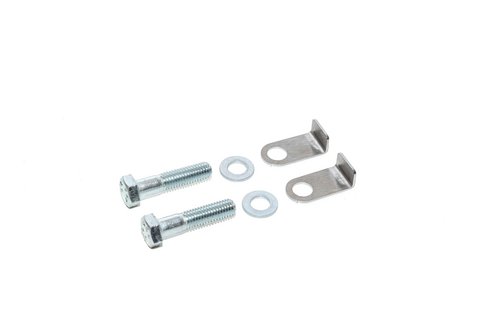

for the fixation of the toe plate block
Art. no. 930 103

i

Fixed toe plate assembly set

Optionally available

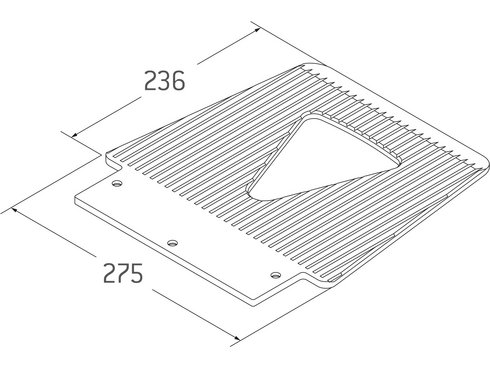

275x236x7 mm
with grooves to prevent load slipping sideways
Art. no. 030 025

i

Toe plate S

Optionally available

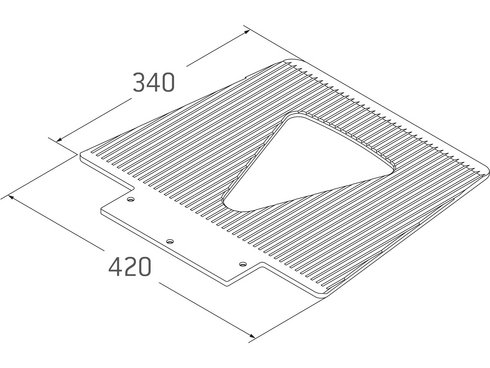

420x340x7 mm
for large packages
Art. no. 930 003

i

Toe plate G

Optionally available

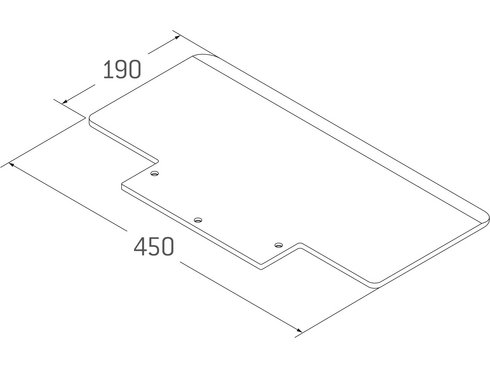

450x190x7 mm
also for packages
Art. no. 930 085

i

Toe plate DS-NG

Optionally available

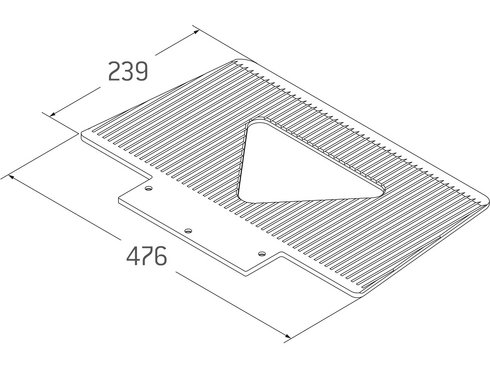

476x239x7 mm
as used in the beverages industry; wide enough for safe transport
of kegs and crates - no straps required
Art. no. 930 030

i

Toe plate GS

Optionally available

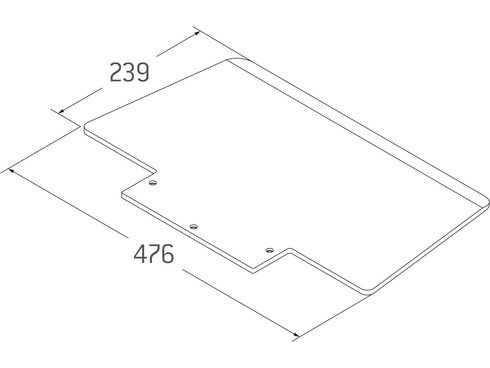

476x239x7 mm
for packages (e.g.: beverage cans)
Art. no. 930 084

i

Toe plate GS-NG

Optionally available

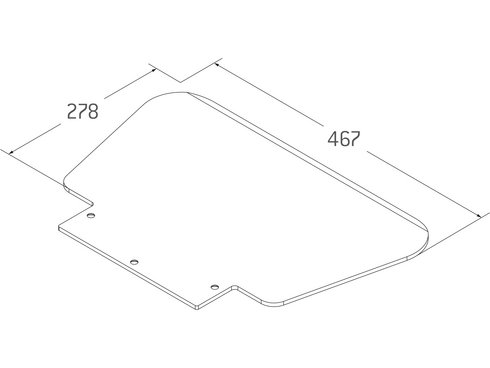

467x278x5 mm
same as toe plate V but larger
Art. no. 930 002

i

Toe plate LH

Optionally available

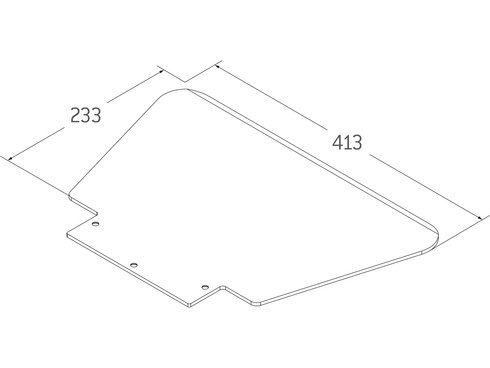

413x233x5 mm
toe plate for transporting oxygen cylinders, etc.
Art. no. 930 001

i

Toe plate V

Optionally available

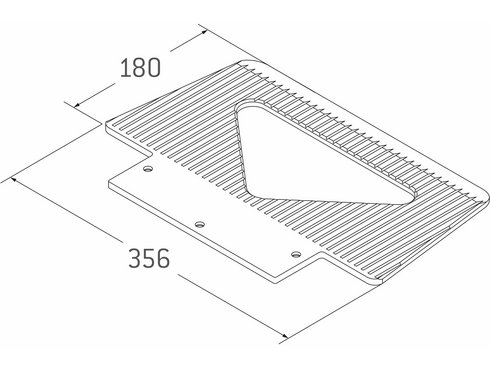

356x180x7 mm
for white goods, refilling vending machines etc.
Art. no. 930 018

i

Toe plate WL

Optionally available

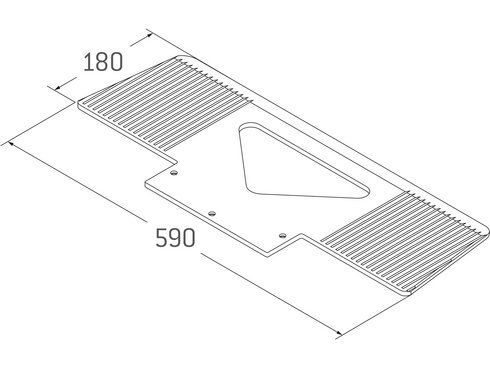

590x180x7 mm
also for white goods, feet stand on toe plate
Art. no. 930 074

i

Toe plate XWL

Optionally available
